ICEDRAKE accelerator board Manual
TABLE OF CONTENTS:
1) Disclaimer
2) Description
4) How to use & current state of the core
6) Flashing the board
9) Software installation & support
1) Disclaimer
The ICEDRAKE is an accelerator board for the Amiga 1200. The
installation of this product requires the opening of your computer for cable
management. It is recommended to hire a professional if you are unfamiliar
with interventions on computer hardware. The Apollo-Team can under no
circumstances be held responsible for any damage caused during
assembly. If you decide to do the installation yourself, check that your
computer is disconnected from the power outlet before opening it. Use an
anti-static workplace. Discharge yourself of your static electricity before you
start. Do not bend or force the components.
The ICEDRAKE ships with the free Apollo-ROM, no third party copyrighted
material is part of this product.
Warning: If you want to dispose of this equipment, please do not use the
ordinary dust bin! Used electrical and electronic equipment must be treated
separately and in accordance with legislation that requires proper
treatment, recovery and recycling of used electrical and electronic
equipment.
2) Description
The ICEDRAKE uses the Apollo 68080 CPU which is compatible with the
Motorola 68K processors while outclassing them in performance.

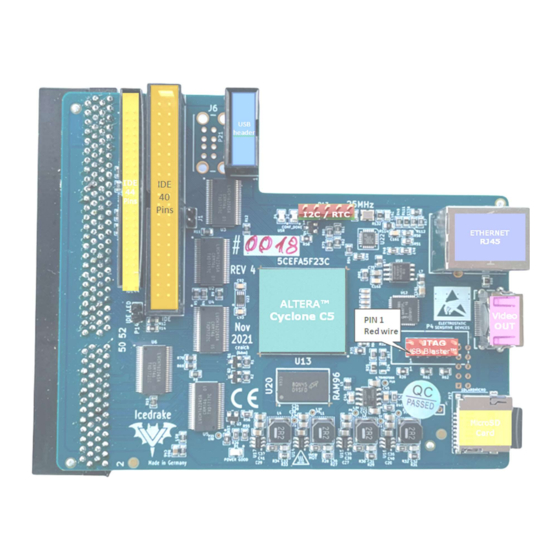

The ICEDRAKE is equipped with the following connectors: a micro SD slot,
a video and digital audio output, two USB headers for mouse or Joypad, a
RJ45- Ethernet port, a RTC connector, a 44-pin and a 40-pin IDE port for
mass storage, a JTAG port for updating the core and a Amiga 1200
compatible expansion port connector.
E
