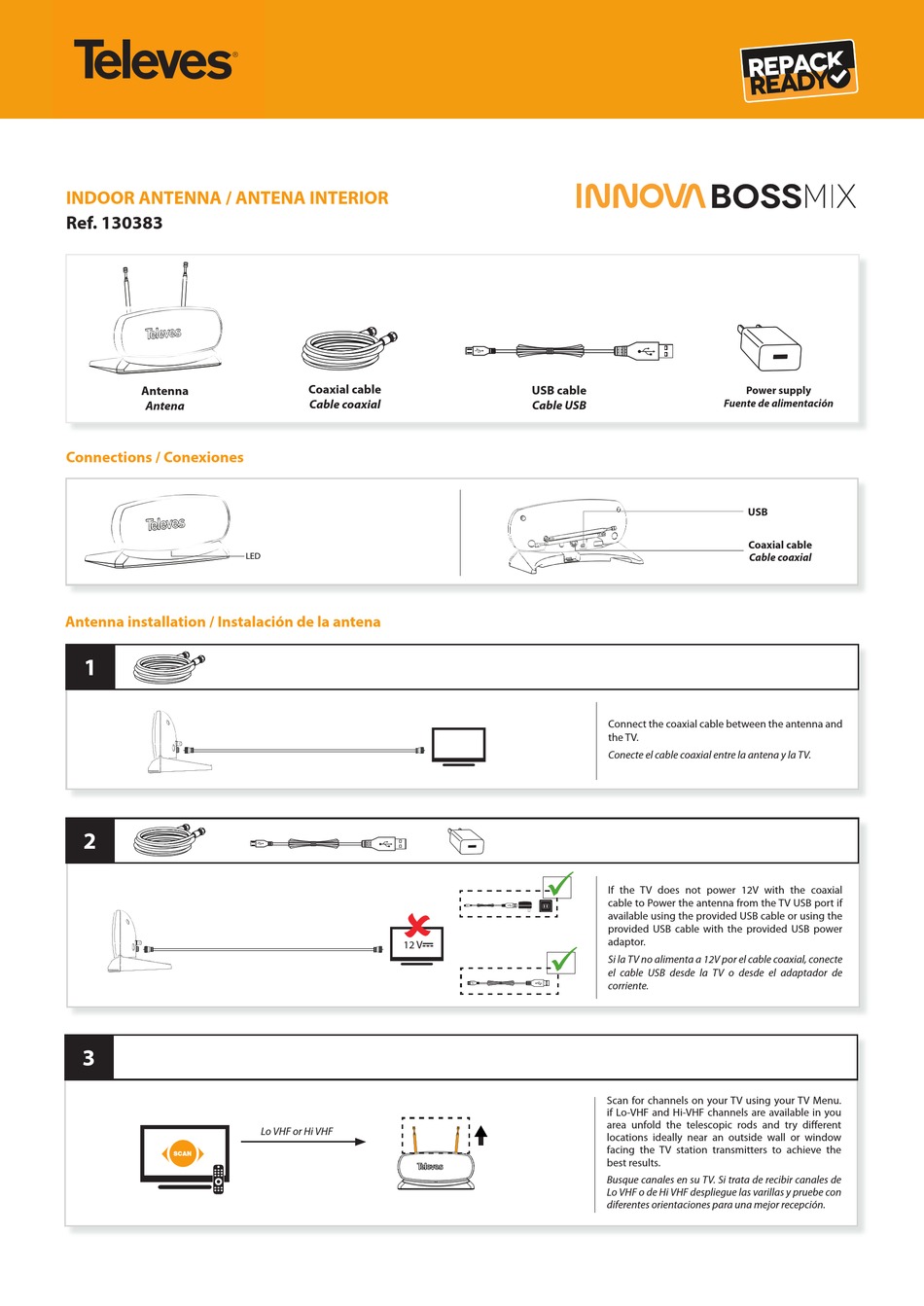

Televes INNOVA BOSS MIX Manual

INDOOR ANTENNA / ANTENA INTERIOR
Ref. 130383
V

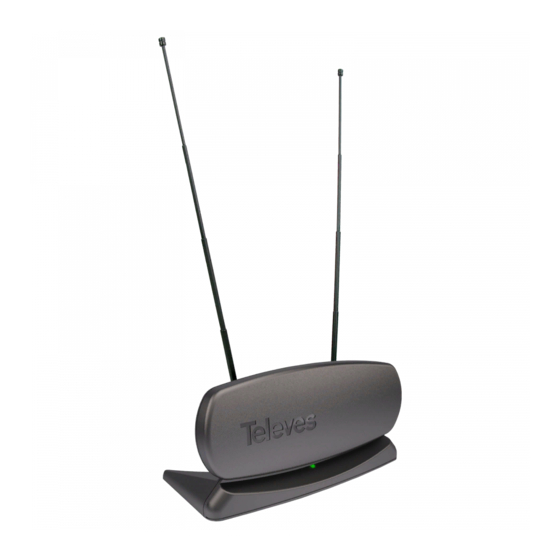

Antenna
Antena
Connections / Conexiones
Antenna installation / Instalación de la antena
1
2
3
SCAN
Coaxial cable
Cable coaxial
Mode LED Powering
Active ON 5V or 12V
LED
Passive OFF 0V

12 V
Lo VHF or Hi VHF
USB cable
Cable USB
Connect the coaxial cable between the antenna and
the TV.
Conecte el cable coaxial entre la antena y la TV.

If the TV does not power 12V with the coaxial
cable to Power the antenna from the TV USB port if
available using the provided USB cable or using the
provided USB cable with the provided USB power
adaptor.

Si la TV no alimenta a 12V por el cable coaxial, conecte
el cable USB desde la TV o desde el adaptador de
corriente.
Scan for channels on your TV using your TV Menu.
if Lo-VHF and Hi-VHF channels are available in you
area unfold the telescopic rods and try different
locations ideally near an outside wall or window
facing the TV station transmitters to achieve the
best results.
Busque canales en su TV. Si trata de recibir canales de
Lo VHF o de Hi VHF despliegue las varillas y pruebe con
diferentes orientaciones para una mejor recepción.
Power supply
Fuente de alimentación
USB
Coaxial cable
Cable coaxial
