AsahiKASEI AKD4619-A Instructions Manual

Evaluation board
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

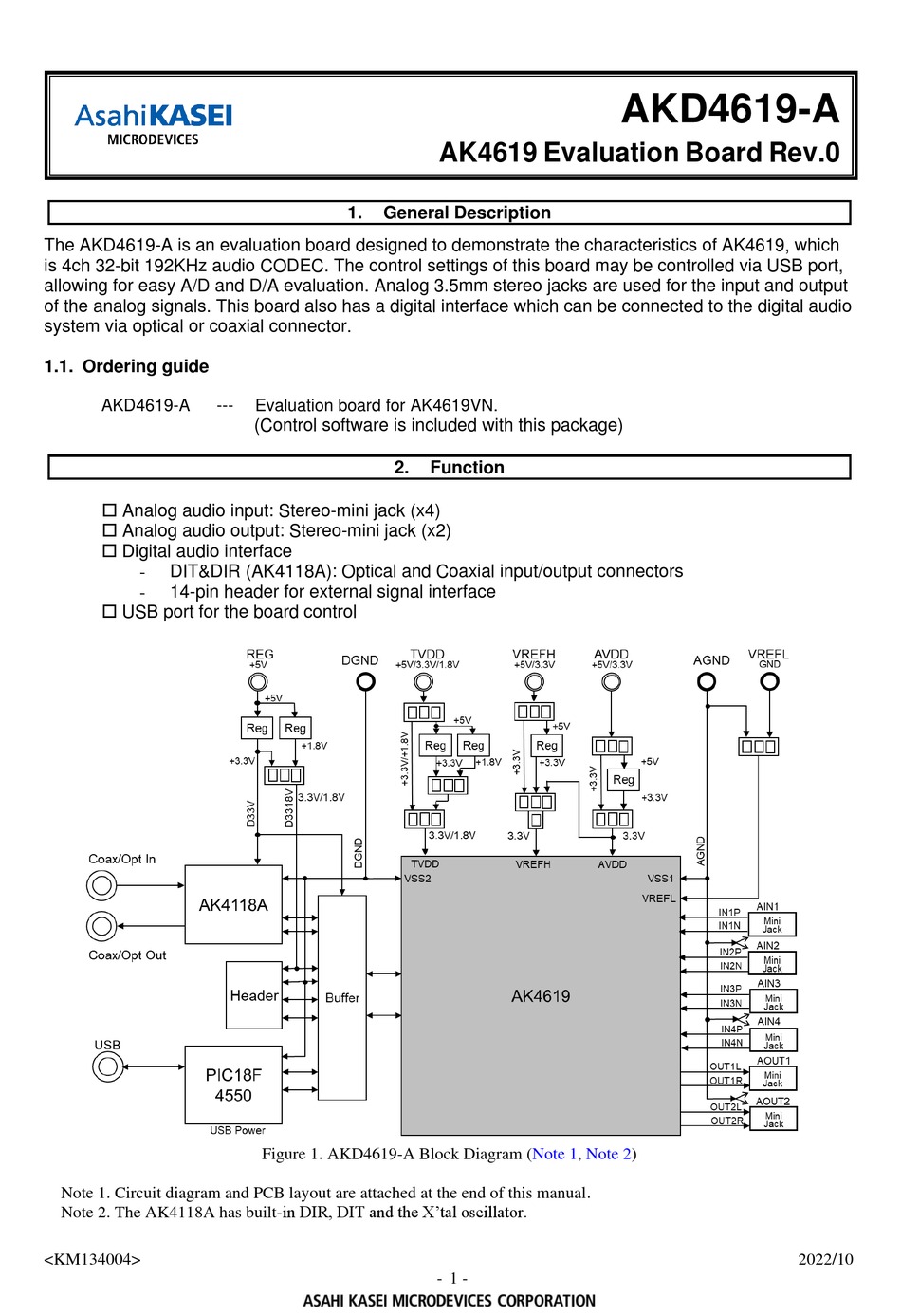

The AKD4619-A is an evaluation board designed to demonstrate the characteristics of AK4619, which
is 4ch 32-bit 192KHz audio CODEC. The control settings of this board may be controlled via USB port,
allowing for easy A/D and D/A evaluation. Analog 3.5mm stereo jacks are used for the input and output
of the analog signals. This board also has a digital interface which can be connected to the digital audio
system via optical or coaxial connector.

1.1. Ordering guide

AKD4619-A
 Analog audio input: Stereo-mini jack (x4)
 Analog audio output: Stereo-mini jack (x2)
 Digital audio interface
-
DIT&DIR (AK4118A): Optical and Coaxial input/output connectors
14-pin header for external signal interface
-
 USB port for the board control
Note 1. Circuit diagram and PCB layout are attached at the end of this manual.
Note 2. The AK4118A has built-in DIR, DIT and the X'tal oscillator.
<KM134004>
1.

General Description

---
Evaluation board for AK4619VN.
(Control software is included with this package)
Figure 1. AKD4619-A Block Diagram
AK4619 Evaluation Board Rev.0
2.

Function

(Note
- 1 -
AKD4619-A
1,
Note
2)
2022/10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AKD4619-A and is the answer not in the manual?

Questions and answers

Summary of Contents for AsahiKASEI AKD4619-A

  • Page 1: General Description

    AK4619 Evaluation Board Rev.0 General Description The AKD4619-A is an evaluation board designed to demonstrate the characteristics of AK4619, which is 4ch 32-bit 192KHz audio CODEC. The control settings of this board may be controlled via USB port, allowing for easy A/D and D/A evaluation. Analog 3.5mm stereo jacks are used for the input and output of the analog signals.

  • Page 2: Table Of Contents

    [AKD4619-A] Table of Contents 1. General Description ..............................1 1.1. Ordering guide ................................. 1 2. Function ..................................1 3. Table of Contents ................................2 4. Board Diagram ................................3 4.1. Board Diagram ................................ 3 4.2. Description ................................3 5. Evaluation Board Setup..............................5 5.1.

  • Page 3: Board Diagram

    Power Supply USB Port Power Supply Analog Output AVDD VREFH Figure 2. AKD4619-A Diagram 4.2. Description (1) Evaluation Chip : Audio CODEC. AK4619 U100 (2) Analog data Terminal Analog Input (Stereo mini jack), J201, J202, J203, J204 for IN1N/P, IN2N/P, IN3N/P, IN4N/P.
  • Page 4 [AKD4619-A] (6) Digital Audio Interface chip : DIR, DIT and X’tal oscillator. AK4118A U300 (7) Toggle switch 1 SW500 for PDN setting of AK4619. “H”: PDN = High “L”: PDN = Low Refer to the Figure Table (8) Toggle switch 2 SW501 for PDN setting of AK4118A.

  • Page 5: Evaluation Board Setup

    [AKD4619-A] Evaluation Board Setup 5.1. Operation Sequence 1. Set up Power Supplies 1.1. AVDD setting Figure 3. Analog Power-Supply Jack/Jumper Color/ Default Function Comments Name Jumper Setting J701 AVDD Yellow +5.0V AK4619 AVDD This jack is used the AVDD power supply.

  • Page 6: Tvdd Setting

    [AKD4619-A] 1.3. TVDD Setting Figure 5. TVDD Power-Supply Setting Jack/Jumper Color/ Default Function Comments Name Jumper Setting J702 TVDD Yellow +5.0V AK4619 TVDD This jack is used the TVDD power supply. (Note 3) JP703 TVDD- 1: REG Select REG TVDD Power Select TVDD power supply routing.

  • Page 7: Agnd/Dgnd Setting

    [AKD4619-A] 1.5. AGND/DGND Setting Figure 7. AGND-DGND setting Jack/Jumper Color/ Default Function Comments Name Jumper Setting JP710 GND- Short Short Common GND Select connection between AGND and DGND Select Short: Common GND Open Open: Separate Table 5. AGND/DGND Setting Note 3. Each supply line should be distributed independently from the power supply unit.

  • Page 8: Set Up External Input/Output Path

    [AKD4619-A] 2. Set up External input/output path 2.1. Evaluation Mode Setting example At the top of [MainFunc] tab of the AK4619 control software, setting examples corresponding to the six typical evaluation modes registered are shown. (B1) (B2) (B3) (B5) (B6) (B4) Figure 8.

  • Page 9: B1] Stereoi2S_48Khz_512Fs_64Fs

    [AKD4619-A] 2.1.1. [B1] StereoI2S_48kHz_512fs_64fs <Default setting> Audio Serial format: Stereo mode I2S compatible fs = 48kHz, BICK = 64fs, MCLK = 512fs (24.576MHz) Audio Serial Interface: OPT-IN (PORT300) OPT-OUT (PORT303) ADC&DAC Figure 9. B1 StereoI2S_48kHz_512fs_64fs Default setting path <KM134004> 2022/10...
  • Page 10 [AKD4619-A] Audio Serial Interface: OPT-OUT (PORT303) ADC : X’tal mode Figure 10. B1 setting path ADC in X’tal mode Without the OPT-IN (PORT300) input, the AK4118A operates in X'tal mode. (1) In X'tal mode, LRCK is determined by setting OCKS1 and OCKS0pin of SW300_4-5pin based on 24.576MHz of X'tal oscillator.

  • Page 11: B2] Stereomsb_192Khz_128Fs_64Fs

    [AKD4619-A] 2.1.2. [B2] StereoMSB_192kHz_128fs_64fs Audio Serial format: Stereo mode MSB compatible fs = 192kHz, BICK = 64fs, MCLK = 128fs (24.576MHz) Audio Serial Interface: COAX-IN (PORT301) COAX-OUT (PORT304) ADC&DAC Figure 11. B2 StereoMSB_192kHz_128fs_64fs setting path <KM134004> 2022/10 - 11 -...

  • Page 12: B3] Tdm128_I2S_48Khz_256Fs_128Fs

    [AKD4619-A] 2.1.3. [B3] TDM128_I2S_48kHz_256fs_128fs Audio Serial format: TDM 128 mode I2S compatible fs = 48kHz, BICK = 128fs, MCLK = 256fs (12.288 MHz) Audio Serial Interface: INOUT-PORT (PORT401) ADC&DAC Figure 12. B3 TDM128_I2S_48kHz_256fs_128fs setting path <KM134004> 2022/10 - 12 -...

  • Page 13: B4] Tdm256_Msb_96Khz_256Fs_256Fs

    [AKD4619-A] 2.1.4. [B4] TDM256_MSB_96kHz_256fs_256fs Audio Serial format: TDM 256 mode MSB compatible fs = 96kHz, BICK = 256fs, MCLK = 256fs (24.276 MHz) Audio Serial Interface: INOUT-PORT (PORT401) ADC&DAC Figure 13. B4 TDM256_MSB_96kHz_256fs_256fs setting path <KM134004> 2022/10 - 13 -...

  • Page 14: B5] Stereopcmshort_48Khz_256Fs_32Fs

    [AKD4619-A] 2.1.5. [B5] StereoPCMShort_48kHz_256fs_32fs Audio Serial format: Stereo mode PCM Short compatible fs = 48kHz, BICK = 32fs, MCLK = 256fs (12.288 MHz) Audio Serial Interface: INOUT-PORT (PORT401) ADC&DAC Figure 14. B5 StereoPCMShort_48kHz_256fs_32fs setting path <KM134004> 2022/10 - 14 -...

  • Page 15: B6] Stereopcmlong_96Khz_256Fs_64Fs

    [AKD4619-A] 2.1.6. [B6] StereoPCMLong_96kHz_256fs_64fs Audio Serial format: Stereo mode PCM Long compatible fs = 96kHz, BICK = 64fs, MCLK = 256fs (24.576 MHz) Audio Serial Interface: INOUT-PORT (PORT401) ADC&DAC Figure 15. B6 StereoPCMLong_96kHz_256fs_64fs setting path <KM134004> 2022/10 - 15 -...

  • Page 16: Signal Path And Clock Selection

    [AKD4619-A] 2.2. Signal Path and clock selection IN4P/N IN3P/N IN2P/N IN1P/N AOUT1L/R AOUT2L/R Figure 16. AK4619 Analog Inputs/Outputs Single-Ended Pseudo differential Differential Figure 17. Analog Input Configuration AIN1/2 Differential Single-Ended Pseudo differential Figure 18. Analog Input Configuration AIN3/4 <KM134004> 2022/10...
  • Page 17 [AKD4619-A] Jumper Names Default Setting Functions JP203 Diff Sel Short Select connection of signal GND and board GND. Short: Common GND Open: Separate. JP210 Diff Sel Short Select connection of signal GND and board GND. Short: Common GND Open: Separate.

  • Page 18: Digital Audio Interface

    [AKD4619-A] 2.3. Digital Audio Interface Optical output Coaxial output Coaxial input X’tal:24.576MHz Optical input Figure 19. Digital Audio Interface Jumper Names Default Setting Functions JP300 RX-SEL Select DIR input port. 1-2pin short 1-2pin (OPT): Optical port. 2-3pin (COAX): Coaxial port.
  • Page 19 [AKD4619-A] DIF2 pin DIF1 pin DIF0 pin LRCK BICK DAUX Mode SW300_ SW300_ SW300_ Input Format Polarity Frequency 24bit, Left 64fs justified 24bit, Left 64fs justified 24bit, Left 64fs justified 24bit, Left 64fs justified 24bit, Left 64fs justified 24bit, I...

  • Page 20: Signal Routing Setting (For [B1] [B2])

    [AKD4619-A] 2.4. Signal Routing setting (For [B1] [B2]) Figure 20. Clock/Audio Data routing header 1 Jumper Names Default Setting Functions PORT402 MCLK-SEL Connect ports to MCLK pin of AK4619. 1-2pin short 1-2pin (DIO): MCKO1 output of AK4118A. 3-4pin (PORT): PORT401 MCLK.

  • Page 21: Signal Routing Setting (For [B3] [B4] [B5] [B6])

    [AKD4619-A] 2.5. Signal Routing setting (For [B3] [B4] [B5] [B6]) Figure 21. Clock/Audio Data routing header 2 Jumper Names TDM Setting Functions PORT402 MCLK-SEL PORT Connect ports to MCLK pin of AK4619. 3-4pin short 1-2pin (DIO): MCKO1 output of AK4118A.

  • Page 22: Serial Audio I/O Headers (For [B1] [B2])

    [AKD4619-A] 2.6. Serial Audio I/O Headers (For [B1] [B2]) DIT&DIR (serial audio I/O is not used) Figure 22. AK4619 External Port connection with Audio Serial data inputs/outputs [B1] [B2] Default Setting Jumper Names Functions DIT&DIR PORT401 INOUT-PORT open External serial interface for AK4619 may be connected when serial audio signal is used.

  • Page 23: Serial Audio I/O Headers (For [B3] [B4] [B5] [B6])

    [AKD4619-A] 2.7. Serial Audio I/O Headers (For [B3] [B4] [B5] [B6]) Figure 23. AK4619 External Port connection with Audio Serial data inputs/outputs (TDM) Jumper Names TDM Setting Functions PORT401 INOUT-PORT MCLK External serial interface for AK4619 may be BICK connected when serial audio signal is used.
  • Page 24 [AKD4619-A] Stereo / PCM Figure 24. AK4619 External Port connection with Audio Serial data inputs/outputs (Stereo) Stereo/PCM Jumper Names Functions Setting PORT401 INOUT-PORT MCLK External serial interface for AK4619 may be BICK connected when serial audio signal is used. LRCK...

  • Page 25: Control Interface Setting

    [AKD4619-A] 2.8. Control Interface setting Figure 25. Control Interface Switch Function Default Name Set control interface H: SPI, L: SW-I2CN SW-CAD Set I2C slave address LSB bit. Table 19. Control Interface Setting 2.9. Power-down (Device Reset) Figure 26. Device reset Up = “H”, Down = “L”...

  • Page 26: Control Software Manual

    [SW501] Reset AK4118A once by brining SW504 to “L” to “H” just after power supplied. Keep “H” during operation. 4. Execute “akd4619-a.exe” to open the control program. This file is included on the CD-ROM (labeled “AKD4619-A Evaluation Kit”). 5. Click the “InitPort” button to initialize the USB interface. If the connection is successful, the status will change from “NoPort”...

  • Page 27: Common Buttons

    Figure 28. Common Buttons (1) Status of connection to PC. If AKD4619-A connected to PC successfully, it shows “AKDUSBIF-B”. If the board is not connected to PC, it shows “NoPort”. (2) [InitPort] button: Initialize the USB port of the board.

  • Page 28: Tab Functions

    [AKD4619-A] 6.4. Tab Functions 1. [MainFunc]: Easy function control tab This tab is for the control of this evaluation board easily. Each button link to the register of AK4619, the register is written by push these buttons. (6) (7) (11)
  • Page 29 [AKD4619-A] (15) [External Clock Input Setting] Select box The clock frequency is set in this window. If the combination of MCLK / BICK and sampling frequency is out of range, a warning will be issued. Power off all channels before configuration and power on channels after configuration.

  • Page 30: Function Button

    [AKD4619-A] 1.1. Function button (B1) (B2) (B5) (B6) (B3) (B4) (A1) Figure 30. Function button (18) (14) (17) (16) (21) (15) (19) (20) Figure 31. Audio Clock / Format Setting Press the function buttons B1 to B6 to set the following contents.

  • Page 31: Gain Setting Dialog

    [AKD4619-A] 1.2. Gain Setting Dialog Set the Input Analog Gain. The PGA gain can be changed by writing number in a text box. The slide bar moves with input Gain value automatically. User can also set the gain with the slide bar. In that case, the number in the text box changes in conjunction with the slide bar.

  • Page 32: Volume Setting Dialog

    [AKD4619-A] 1.3. Volume Setting Dialog Set the Input Digital Gain ADC / DAC digital Gain Setting and ATT speed soft mute check box. Figure 34. [Volume Setting] window Slide bar moves to the selected value. Figure 35. Gain Slider 2 A configurable value is automatically selected.

  • Page 33: Script]: Script Function Tab

    [AKD4619-A] 2. [Script]: Script function tab EXAMPLE for Stereo I2S format Figure 36. [Script] Tab Window (Script Stereo) (1) [Refer] button: Select a text file that is saved by the [Script Save] button. The register values on the file will be written to AK4619 automatically.
  • Page 34 [AKD4619-A] EXAMPLE for TDM256 I2S format Figure 37. [Script] Tab Window (Script TDM) <KM134004> 2022/10 - 34 -...

  • Page 35: Regmap]: Register Map Tab

    [AKD4619-A] 3. [RegMap]: Register Map tab Users can set and read registers in bit value on “RegMap” tab. The bit in the “MainFunc” tab and “RegMap” tab has linked each other. Each bit on the register map is a push-button switch. The bit name with red indicates bit “1”, the bit name with blue indicates bit “0”.

  • Page 36: Measurement Data

    [AKD4619-A] Measurement Data [Measurement condition] • Measurement unit : SYS-2722 PSIA-2722 • MCLK : 24.576MHz • BICK : 64fs • LRCK : 48 kHz, 96kHz, 192kHz • Bit : 24bit • Input Frequency : 1kHz • Power Supply : AVDD = VREFH = TVDD = +3.3V(Regulator) •...
  • Page 37 [AKD4619-A] [Measurement Result fs=96kHz] MIC-Amp+ADC1 (IN1P / IN1N pins, IN2P / IN2N pins, MGN1L/R = 0dB) Differential Results Input Parameter filter Units Signal IN1P/IN1N IN2P/IN2N S/(N+D) -1dBr 40kHz LPF 97.4 97.3 Dynamic Range -60dBr 96 kHz 100.1 100.2 No Signal 100.0...

  • Page 38: Revision History

    [AKD4619-A] Revision History Date Manual Board Reason Page Contents (yy/mm/dd) Revision Revision 20/06/30 KM134000 First edition 21/01/18 KM134001 Change Change the overall configuration. Figure 9.10. Added a description of the SW300 audio interface format. Change 9～11 Figure 11. Added description of SW300 audio...

  • Page 39: Important Notice

    [AKD4619-A] IMPORTANT NOTICE 0. Asahi Kasei Microdevices Corporation (“AKM”) reserves the right to make changes to the information contained in this document without notice. When you consider any use or application of AKM product stipulated in this document (“Product”), please make inquiries the sales office of AKM or authorized distributors as to current status of the Products.
  • Page 40 C104 C106 DGND C103 2.2u AGND AGND AGND TP133 AGND AGND CN103 40pin_3 Title Title Title <AKD4619-A> <AKD4619-A> <AKD4619-A> - 40- Size Size Size Document Number Document Number Document Number AK4619 AK4619 AK4619 Date: Date: Date: Monday, December 09, 2019...
  • Page 41 JP210 2-3 :Diff / SingleEnded 1-2 :Pseudo Diff Sel-JP210 Short :Diff / SingleEnded Open :Pseudo AGND AGND Title Title Title <AKD4619-A> <AKD4619-A> <AKD4619-A> - 41- Size Size Size Document Number Document Number Document Number Analog INPUT/OUTPUT Analog INPUT/OUTPUT Analog INPUT/OUTPUT...
  • Page 42 DGND PORT304 T300 COAX-OUT DA-03ZF C305 R303 0.1u R302 DGND DGND DGND Title Title Title <AKD4619-A> <AKD4619-A> <AKD4619-A> - 42- Size Size Size Document Number Document Number Document Number DIT & DIR DIT & DIR DIT & DIR Date: Date:...
  • Page 43 DGND PORT-SDOUT1 SDOUT1-P DGND PORT406 SDTO1 SDOUT1-SEL DIO-DAUX-0 SDOUT1 PORT-SDOUT1 PORT SDOUT1-SEL DGND Title Title Title <AKD4619-A> <AKD4619-A> <AKD4619-A> - 43- Size Size Size Document Number Document Number Document Number LOGIC1 LOGIC1 LOGIC1 Date: Date: Date: Monday, December 09, 2019...
  • Page 44 C505 0.1u 0.1u DGND DGND DGND DGND LE501 LE502 PDN-CODEC PDN-DIO DGND DGND Title Title Title <AKD4619-A> <AKD4619-A> <AKD4619-A> - 44- Size Size Size Document Number Document Number Document Number LOGIC2 LOGIC2 LOGIC2 Date: Date: Date: Monday, December 09, 2019...
  • Page 45 VUSB RA3/AN3/Vref+ R621 RC4/D-/VM RA4/T0CKI/C1OUT/RCV R623 RC5/D+/VP RA5/AN4/SS_N/HLVDIN/C2OUT RC6/TX/CK RC7/RX/DT/SDO USB(B type) DGND PIC18F4550 Title Title Title <AKD4619-A> <AKD4619-A> <AKD4619-A> - 45- Size Size Size Document Number Document Number Document Number PC-IF PC-IF PC-IF Date: Date: Date: Monday, December 09, 2019...
  • Page 46 D3318V +1.8V DGND +5V --> +1.8V T706 LT1963AEST-1.8 C720 C721 C722 C723 0.1u 0.1u Title Title Title <AKD4619-A> <AKD4619-A> <AKD4619-A> - 46- Size Size Size Document Number Document Number Document Number POWER SUPPLY POWER SUPPLY POWER SUPPLY DGND Date: Date:...
  • Page 47 - 47-...
  • Page 48 - 48-...
  • Page 49 - 49-...
  • Page 50 - 50-...
  • Page 51 - 51-...
  • Page 52 - 52-...
