Tropic Creations Glamorca Roller clean 100 Instruction Manual

Glamorca Roller clean 100 –
Instruction v2
Roller clean is a filtering device that mechanically
removes impurities from water, for proper operation,
please read the instructions carefully.

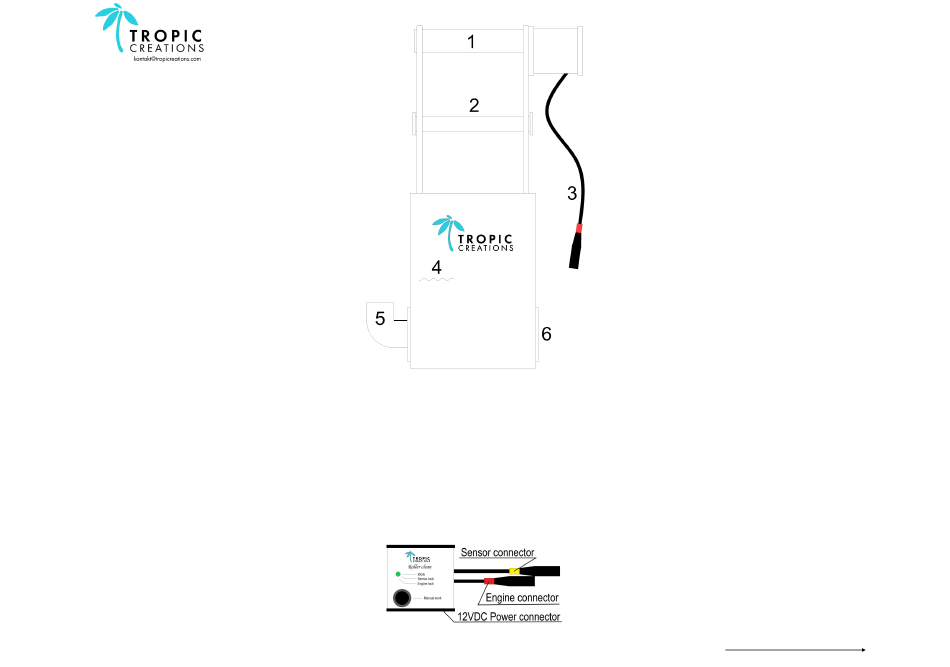

1. Roller consists of 2 main components:
a) the holder to which we connect the hydraulics
and hang it on the edge of the aquarium,
b) cassettes with filter fleece.
2. CAUTION!!! During transport:
• the roller (2) is inserted into the hole where
the water drain is mounted (between 5-6) and
secured with a tape, push it out, and then
eject the cassette safely,
• the roller's slings have been mounted the
other way round, unscrew the 4 black screws
on the side of the housing, turn the handles
and screw them back in.
3. Before installation, remove the cassette from the
holder. The immersion level of the device is marked
on the front. The slings on the side of the device
regulate the draft. For the device to work
properly, the water level must not exceed 10mm
from the marked line (4)
4. On the left or right side, we can install a 25mm
bend (5) to which we connect the water drain. On
the opposite side, screw the round cap (6).
Approximately 2 cm from the upper edge of the
handle, there is an overflow hole for safety.
5. After mounting the handle, we prepare a non-
woven cassette. On the side of the cassette there is
a diagram of the non-woven fabric routing between
the rollers. We put it on the lower handle with a
diameter of 16mm (2) and lead it between the
rollers, up to the upper roller with the motor (1).
Attention! The non-woven fabric should be attached
to the roller with the motor with a sticker which is
attached to the new roller marked Roller clean 100,
the non-woven fabric should be placed on the roller
with the motor, and after turning the motor one full
turn, the fleece will tighten on the motor. The motor
itself can be mounted on the left or right side (3)
6. After installing the fleece on the cassette, the
whole thing is put into the holder mounted on the
edge of the tank.
7. The next step is to connect the liquid level sensor
(yellow band), motor (red band) and the power
supply to the controller. The controller should be
placed in a dry place with humidity below 50%.
There are 3 pieces of information on the controller:
•
green LED - operation, the controller, after
receiving the signal, rewinds the roll of non-woven
fabric,
•
blue diode - sensor blocked, the controller has
received too long information that the sensor is
lifted, although it is scrolling the fabric,
•
red diode - engine lock, the controller monitors
the engine power during operation, stops it when
it is overloaded
Any error is reset by disconnecting the power
supply from the 230V socket for 1 minute. Before
restarting, you should diagnose what caused it.
The engine lock error is saved in the controller
memory, the reason may be:
- installation of non-original non-woven fabric,
- too much water flow,
- failure to mount the roller in accordance with the
instructions or intended use,
- too many snails or other hard debris on the runoff.
Too many motor errors (red LED) can damage the
motor or the power output in the controller. After
reading the number of errors, the service decides
whether the device was used as intended and
decides on a warranty repair.
8. After initial setting and starting the roller, leave it
for a few hours and observe the dirt of the non-
woven fabric.
