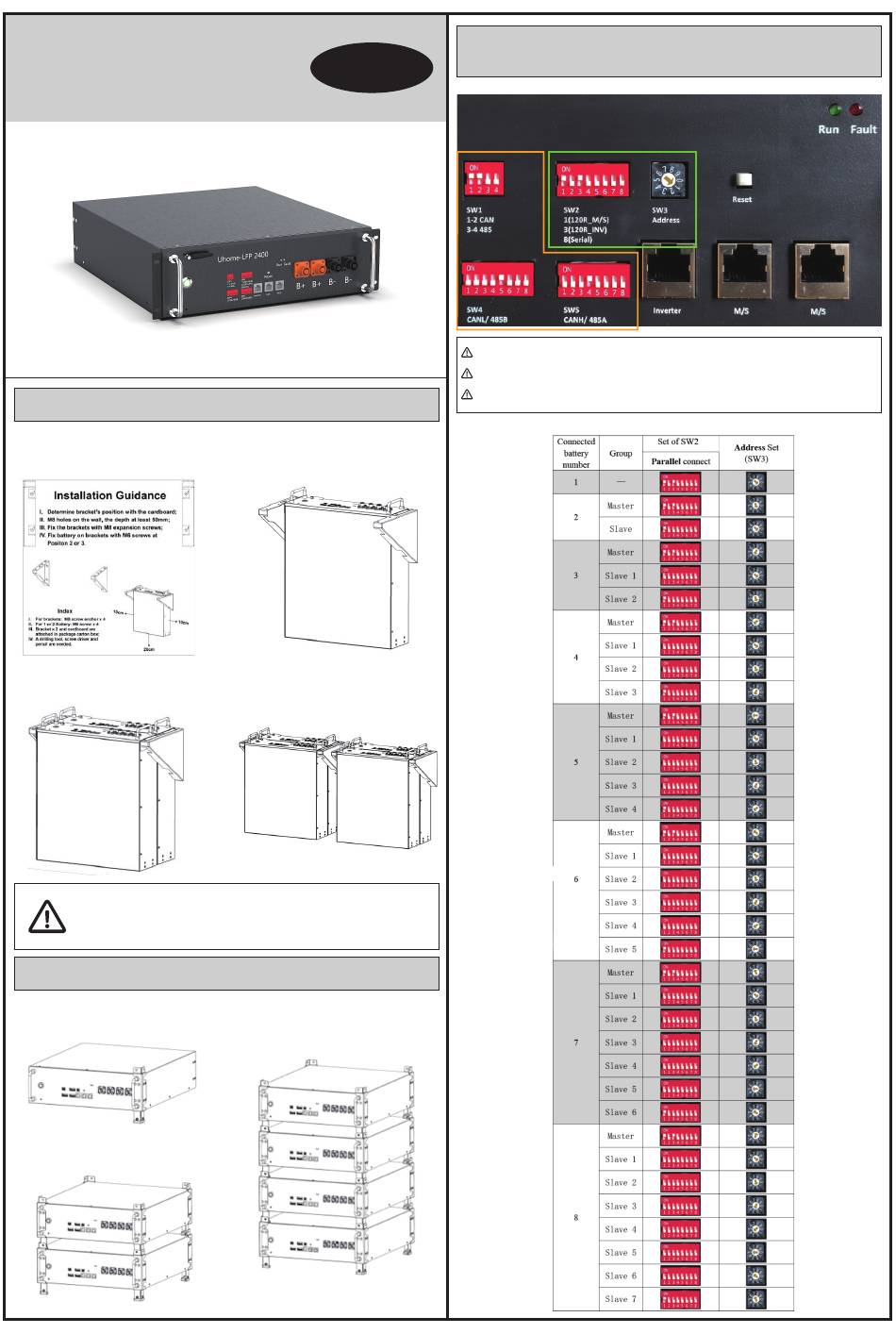

AOBOET Uhome-LFP 2400 Quick Installation Manual

Quick Installation Guide

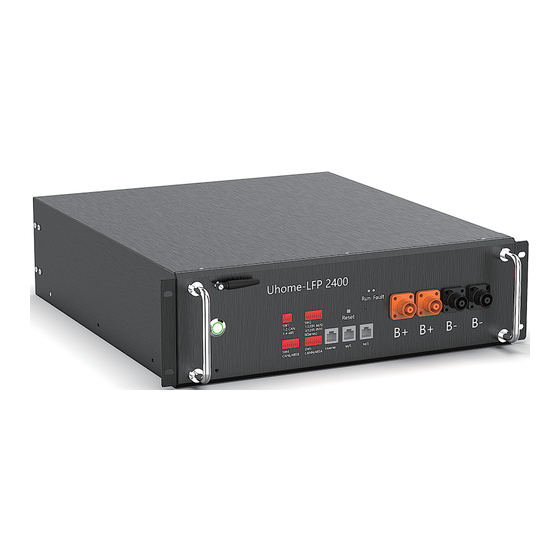

Model:Uhome-LFP 2400
1.Wall mounting
1.Determine bracket mounting place to be
fixed using this Positioning cardboard.
3.Fasten the battery to bracket fasten hole
with M6 screws with 2.0N·m roughly.
Note:
If more than 4 batteries installed, a cabinet recommended to be selected for
the battery's stable.
2.Ground installation
1.Fix the braced feet to battery's mounting
holes one by one.
2.If more power and energy needed, two or
more (less than 4) batteries could be installed
in one stack.
AOBOET
2.Drill holes in the wall for the M8 expansion
screw anchors, which depth should be at least
50 mm. Tighten the screws to a torque around
2.5 N·m.
4.Meanwhile, two or four batteries could be
installed by theses brackets.
3.But if the number of batteries at the range
of 4~8, a cabinet recommended to be selected.
3.Address select of Master and Slave battery(ies)
connection
Step 1 Step 2
Step 1 ：Check dips SW1,4 and 5 are set as the diagram above.
Step 2 ：Set Dips SW2 and SW3 as the settings below.
Step 3 ： Check the cable connections are as Section 4.
