Example Connection

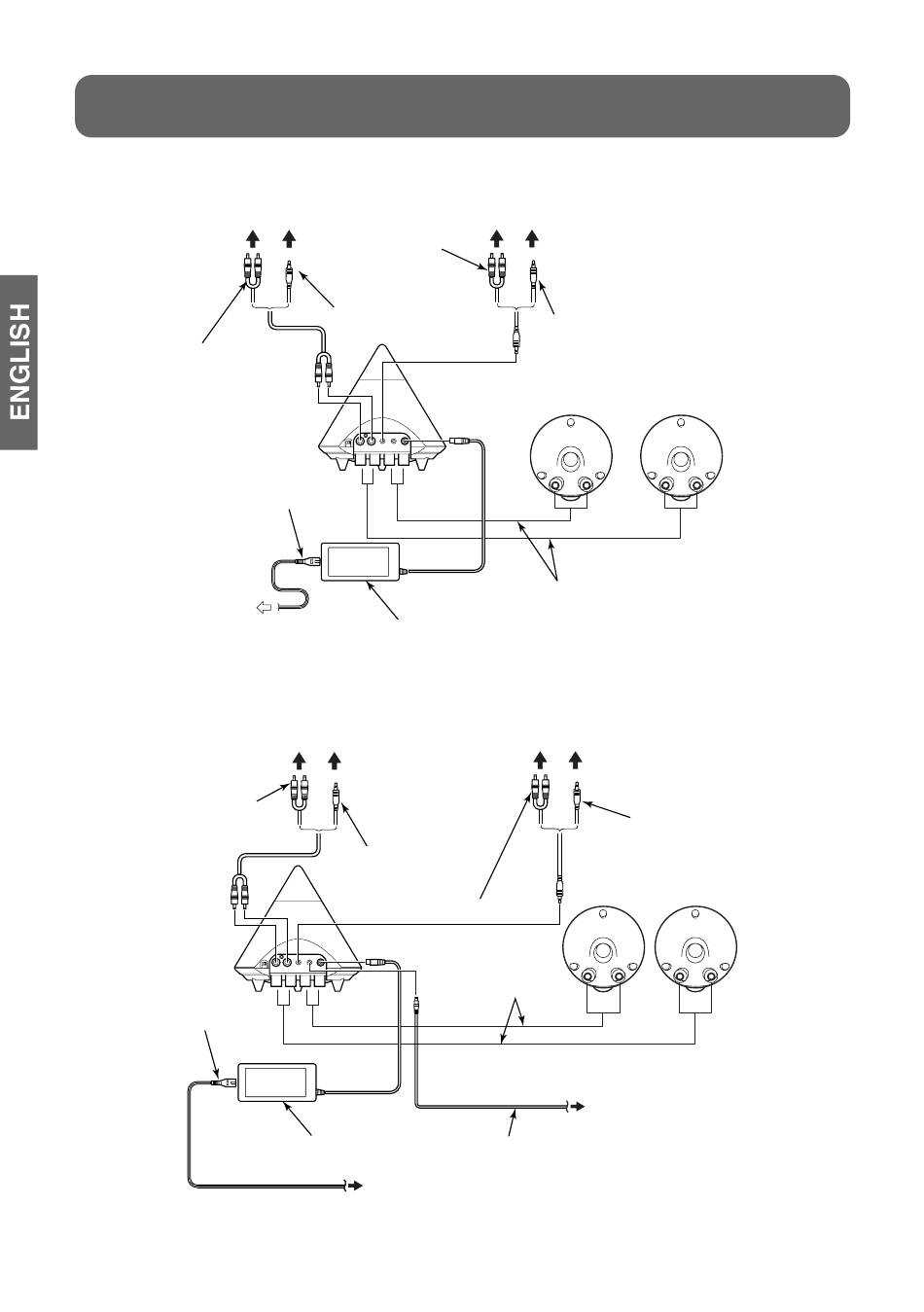

■Player + Amplifier + Speaker
To the line output terminal of CD player or other devices
To the headphone output terminal of PC or other devices
RCA to RCA cable
(Not provided for TD307PAII)
To outlet
■Player + Amplifier + Speaker + Subwoofer
To the line output terminal of CD player or other devices
To the headphone output terminal of PC or other devices
RCA to RCA cable
(Not provided for TD307PAII)
Power cable
RCA to stereo mini jack
(1/8") cable
RCA to stereo mini jack
(1/8") cable
Amplifier
Power cable
AC adaptor
RCA to stereo
mini jack (1/8") cable
Amplifier
RCA to stereo mini jack (1/8") cable
AC adaptor
To outlet
To the line output terminal of CD player or other devices
To the headphone output terminal of PC or other devices
Stereo mini jack (1/8")
to stereo mini jack (1/8") cable
Speaker
Speaker cable
To the line output terminal of CD player or other devices
To the headphone output terminal of PC or other devices
Speaker
Speaker cable
To subwoofer
Stereo mini jack (1/8")
to RCA cable (Optional)
- 18 -
Speaker
Stereo mini jack (1/8")
to stereo mini jack (1/8") cable
Speaker
