Henk 70
Installation drawings

Advertisement

loading
Need help?

Need help?

Do you have a question about the Henk 70 and is the answer not in the manual?

Questions and answers

Summary of Contents for holzhandlung raters Henk 70

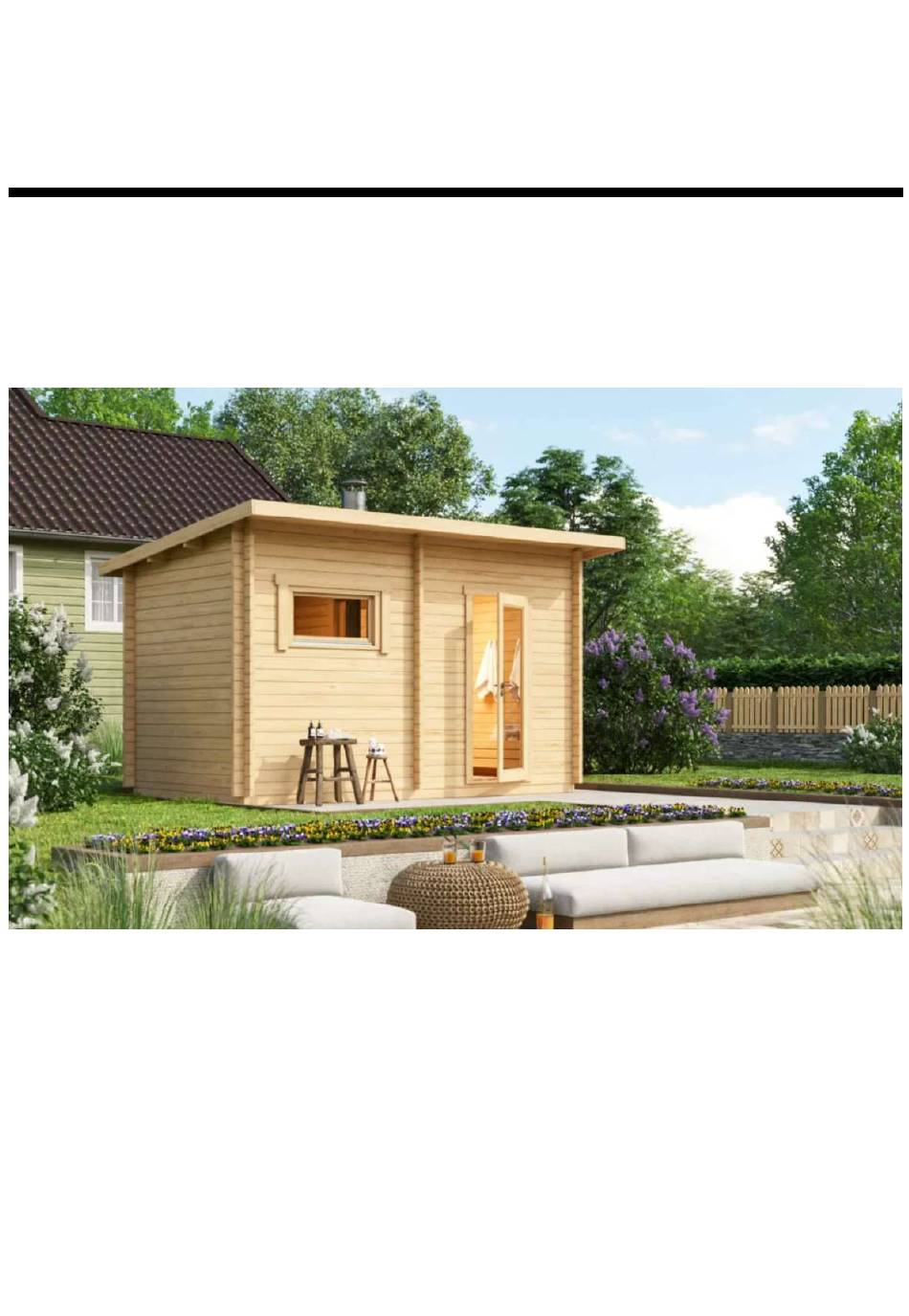

  • Page 1 Henk 70 Installation drawings...
  • Page 2 03/10/2022 Marking Lenght WALL LOG 70x146 SR-1 70x145 RAFTER 4207 HITTING BLOCK 70mm...
  • Page 3 KL-1 Roof board 28x120 MT10 2916 38+2 AR-1 45x95 Floor Frame Cutout ! 3760 AR-2 45x95 Floor Frame 3760 AR-3 45x70 Floor Frame 45x70 2000 AR-4 45x95 Floor Frame 2000 PL-1 28x120 Floor board (Front room) 1796 PL-2 28x120 Floor board (Sauna room) 1765 SR-2 45x45 Roof edge support...
  • Page 4 Wood frame outside door x690x1860 Bronze Glass door 70x590x1860 Bronze Window 70x1100x540 Bronze TE-1 28x70+28x30 T- shape fillet 1860 TE-2 28x70+28x30 T- shape fillet Sauna bench 600x1992 Sauna bench 500x1992 Sauna bench 300x1992 Sauna bench 500x1196 Sauna bench 200x960 Bench support set 45x45 Extra bench support 45x45x1000 + M10 RN-1 Water drainage detail...
  • Page 5 Henk 70 Threaded rod M10 2420 Threaded rod M10 2140 Drive nut M10 Washer M10 Nut M10 Screw 3,5x40 A2 RV mouldings Screw 3,5x50 Floor board Screw 4,2x55 RV roof mouldings Screw 4,5x70 Bench supports/ sauna ceiling Screw 5,0x90 Floor frame, wall connections KRUVI 6x180 rafters, wall connections Nail 1.4x40 mouldings + ceiling panels...
  • Page 6 Floor plan 4 007 4 033 1 800 1 800 SR-1 SR-1 110 x 54 70 x 186 3 807 1 869 1 869 GSPublisherVersion 89.3.84.100...
  • Page 7 Floor frame 3760 1812 AR-1 +3mm +6mm +9mm +12mm AR-2 *Check that Floor Frame diagonals are the same lenght! Attatch slope details to floor frame to give incline for water drainage A=B! +3mm +6mm +9mm GSPublisherVersion 89.3.84.100...
  • Page 8 Floor frame Install water drainage detail before first wall log Water drainage detail Screws 90mm * Use 90mm screws TAKE CARE! WATER DRAINAGE DETAIL HAS SHARP EDGES! GSPublisherVersion 89.3.84.100...
  • Page 9 FLOOR BOARDS Floor boards BEFORE INSTALLING THE FLOOR BOARDS, INSTALL THE WATER DRAINAGE GUTTER AND PLYWOOD BOARDS 3, 6, 9, 12 MM 1765 1796 PL-1 PL-2 FIX THE FLOOR MOULDING WITH THE 3x40 MM STAINLESS SCREW leave the 2-3 mm gap with walls FIX THE FLOOR BOARDS WITH THE SCREWS (DIAGONALLY, NON VISIBLE) GSPublisherVersion 89.3.84.100...
  • Page 10 Floor boards Incline +0mm 15x55 base board +5mm +3mm +6mm +9mm +12mm 1. Attach slope details to give floor boards incline 2. Install water drainage detail +5mm to give incline 3. Attach base board 15x55 to water drainage detail to fix water drainage detail to wall GSPublisherVersion 92.3.83.100...
  • Page 11 First log wall row Install first log wall row to the floor frame with 90mm and 180mm screws(Suggestion: Drill hole before screwing) Screw 180mm Screw 90mm Leave 25mm cap between outer wall log and floor frame 25mm GSPublisherVersion 89.3.84.100...
  • Page 12 Wall log installation If the wall log is bent (swelling and shrinking) then use 180mm screws Screw 180mm Screw 180mm To install wall logs, use hammer and hitting block GSPublisherVersion 89.3.84.100...
  • Page 13 Keermelattide paigaldus Threaded rods THREADED RODS KEERMELATID SEINAPRUSSE PAIGALDADES JÄLGI, WHEN INSTALLING THE WALL LOGS, ET IGAS REAS OLEKS AUK OLEMAS ! PLEASE CHECK THAT ALL THE HOLES ARE D LÕÕKMUTTE R DRIVE NUT KEERMELATT JÄTKUMUTTER THREADED ROD LENGTHENING BOLT SEIB UTTE WASHER...
  • Page 14 Wall layouts 7° Wall C 2 420 C-18-1 620 C-17-1 1 653 2 140 C-16-1 2 339 C-15-1 2 339 C-14-1 2 339 C-13-1 2 339 C-12-1 2 339 C-11-1 2 339 C-10-1 2 339 C-9-1 2 339 C-8-1 2 339 C-7-1 2 339 C-6-1 2 339 C-5-1 2 339...
  • Page 15 Wall layouts 8° 2 420 Wall B B-18-1 620 B-17-1 1 653 2 140 B-16-1 2 339 B-15-1 2 339 B-14-1 841 B-14-2 841 B-13-1 841 B-13-2 841 B-12-1 841 B-12-2 841 B-11-1 841 B-11-2 841 B-10-1 841 B-10-2 841 B-9-1 841 B-9-2 841 B-8-1 841...
  • Page 16 C-11-1 2 339 sauna ceiling C-10-1 2 339 Wall layouts C-9-1 2 339 =10cm Install holes under Install holes under ceiling ceiling C-8-1 2 339 C-7-1 2 339 Install hole under Ventilation Louv Install hole under sauna ceiling Install ventilation louvre C-6-1 2 339 Ventilation Install holes under...
  • Page 17 PATIO L PATIO S PATIO S Wall layouts PATIO M PATIO L PLUS PATIO XXS PATIO XS Ventilation Louvre and ventilation grid PATIO S PLUS Wall 2 =10cm 4 207 2-16-1 4 208 Ventilation Louvre and 2-15-1 4 007 PATIO L Ventilation hole under PATIO S PATIO S...
  • Page 18 Wall layouts Wall 1 4 207 1-18-1 4 208 1-17-1 4 007 1-16-1 4 007 1 166 1-15-1 487 1-15-2 908 1-15-3 691 1-14-1 487 1-14-2 908 1-14-3 691 1-13-1 487 1-13-2 908 1-13-3 691 1-12-1 487 1-12-2 908 1-12-3 691 1 166 1-11-1 2 561 1-11-2 691...
  • Page 19 Opening cutting Opening upper or lower wall log vertical cut is made in site. Horizontal cut Cut in site GSPublisherVersion 89.3.84.100...
  • Page 20 Rafters Screw 180mm Rafter 70x145 Fix roof rafters to log walls with 180mm screws GSPublisherVersion 89.3.84.100...
  • Page 21 Roof boards SARIKAD, KATUSELAUAD Reval plus 40 SARIKAD, KATUSELAUAD Reval plus 40 Rafters, roof boards Reval Sauna Kruvi 180mm Screw 180mm Kruvi 180mm Nails 75mm Sarikas *Fix Roof boards to rafters/ wall log gables Sarikas Rafter Freespalk with 75mm nails. Use hammer (2 nails per connection) Freespalk Log wall...
  • Page 22 Roof Mouldings Screw 55mm Screw 55mm Roof edge support 45x45 *Fix roof edge supports to roof board with 55mm screws Screw 55mm *Fix roof mouldings to rafters/ log wall/ edge support with 55mm screws GSPublisherVersion 89.3.84.100...
  • Page 23 d d, GSPublisherVersion 89.3.84.100...
  • Page 24 Door and window mouldings *Fix door and window mouldings with 40mm screws DOOR MOULDINGS OUTSIDE DOOR DOOR MOULDINGS GLASS DOOR UK-2 UK-2 UK-3 UK-3 WINDOW MOULDINGS 1310 AK-1 1100 AK-2 1060 GSPublisherVersion 89.3.83.100...
  • Page 25 Sauna Ceiling Rafter 70x145 SPU insulation 30mm Ceiling beam 45x45 Screws 70mm 1. Temporarily install SPUinsulation to roof rafter 2. Mark where SPU insulation meets the side wall. Then install 45x45 Ceiling beam to log wall with 70mm screws 3. Do the sama thing with other side wall GSPublisherVersion 89.3.83.100...
  • Page 26 Sauna Ceiling Reval Sauna Sauna ceiling Distance board 15x55mm Screws 70mm Insulation REVAL PLUS LAELAUDIS Distance board 15x55 Screw 70mm Laelaudis paigaldatakse leiliruumi Screws 70mm Soojustus SPU Insulation Kingspan 30mm Distance board 15mm Ceiling boards Laelaudis STP-1 Dist. liist 15x55 Install the SPU insulation to the beams/ rafters with the distance board and 70mm screws Ceiling lining boards Lõigata viimane voodrilaud õigesse mõõtu...
  • Page 27 Henk 70 Sauna Ceiling Nail 40mm Ceiling panels (STP) Ceiling board 15x55 5. Use 40mm nails (1 nail per 1 connection) to install ceiling panels to the distance board, cut the last ceiling board to lenght 6. Use 40mm nails to install ceiling boards to log wall. (Cut ceiling boards to lenght)
  • Page 28 Check that heater safety distance is acquired Lower bench 3. Fix benches with the 70mm screws to If neccesary move lower bench back the walls and supports Sauna benches Sauna Benches Reval Sauna 1. First fix the bench supports to the wall 2.
  • Page 29 Sauna benches *Fix sauna room bench supports to log wall with 70mm screws *Fix front room bench supports to log wall with 70mm screws GSPublisherVersion 89.3.83.100...
  • Page 30 Sauna benches Lift sauna benches on top of supports. Fix supports to sauna benches (Do not screw through the sauna bench from underneath) Lift sauna benches on top of supports. Fix supports to sauna benches (Do not screw through the sauna bench from underneath) (*If delivery package includes sauna skirts, then install upper benches after sauna skirts.) GSPublisherVersion 89.3.83.100...
  • Page 31 Sauna benches *Fix sauna room bench supports to log wall/ other sauna bench with 70mm screws Lift sauna benches on top of supports. Fix supports to sauna benches (Do not screw through the sauna bench from underneath) GSPublisherVersion 89.3.83.100...
  • Page 32 *Optional bench skirts *Fix bench skirts to log wall/ other bench/ lower bench skirt with 70mm screws Fix sauna skirt to wall Fix sauna skirt to wall Fix sauna skirt to lower bench Fix sauna skirt to lower bench GSPublisherVersion 89.3.83.100...
  • Page 33 *Optional back rests Install back rest approximately Cover screw holes with cover cap 450mm higher than top bench Screw 70mm Cover cap GSPublisherVersion 89.3.83.100...
  • Page 34 Heater guard DIY package includes: 4x60 4x60 Detail A: 28x88x640 - 2 pcs 4x40 4x40 Detail B: 28x88x810 - 2 pcs Detail C: 28x42x700 - 1 pcs Detail D: 28x42x350 - 2 pcs Screw 4x40 - 8 pcs Screw 4x60 - 16 pcs 4x60 4x60 1.
  • Page 35 Huum Hive 9 kW Huum Huum Steel 9 kW Drop 9 kW GSPublisherVersion 89.3.83.100...
