2022/4/2 18:00

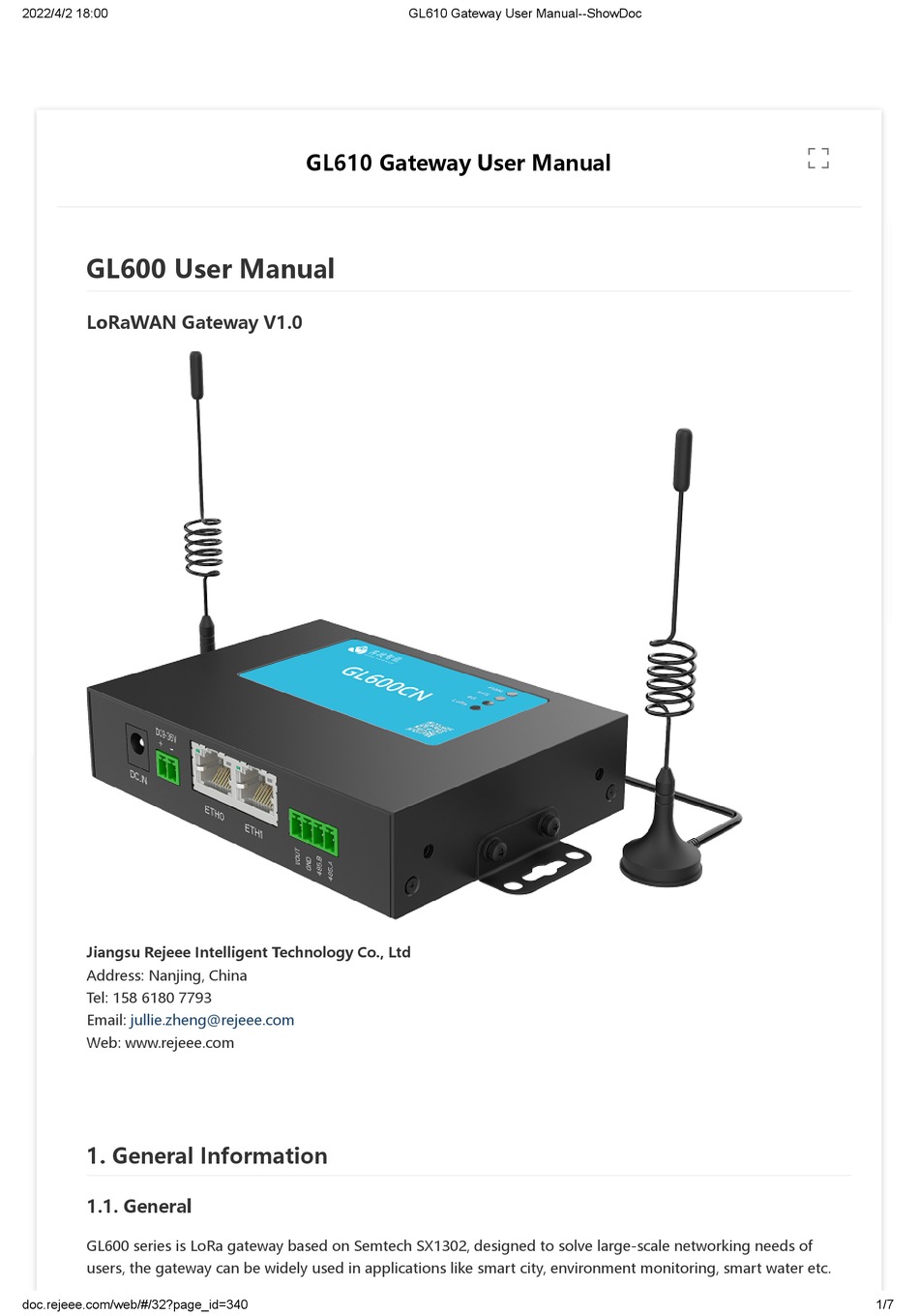

GL600 User Manual
LoRaWAN Gateway V1.0
Jiangsu Rejeee Intelligent Technology Co., Ltd
Address: Nanjing, China
Tel: 158 6180 7793
Email:
jullie.zheng@rejeee.com
Web: www.rejeee.com
1. General Information
1.1. General

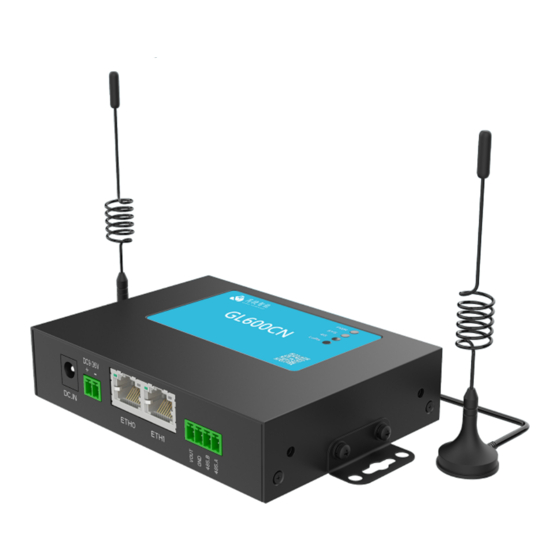

GL600 series is LoRa gateway based on Semtech SX1302, designed to solve large-scale networking needs of
users, the gateway can be widely used in applications like smart city, environment monitoring, smart water etc.
doc.rejeee.com/web/#/32?page_id=340
GL610 Gateway User Manual--ShowDoc
GL610 Gateway User Manual
1/7
Advertisement
Table of Contents
Summary of Contents for Rejeee GL600
- Page 1 Web: www.rejeee.com 1. General Information 1.1. General GL600 series is LoRa gateway based on Semtech SX1302, designed to solve large-scale networking needs of users, the gateway can be widely used in applications like smart city, environment monitoring, smart water etc. doc.rejeee.com/web/#/32?page_id=340...
- Page 2 2022/4/2 18:00 GL610 Gateway User Manual--ShowDoc Gatway Series Product Number GL600 GL600CN / GL600EU / GL600US 1.2. Product Feature and Spec Based on Semtech SX1302, 8 Channels Built in watch-dog Built-in RTC and automatic clock synchronization Built-in web service Adaptive data rate, from SF5 to SF12...
- Page 3 Select a common serial port tool “sscom” here to connect to the gateway. The software can be copied directly and run without installation. Gateway RS485 serial port parameters are: baud rate 115200, data bits 8bits, 1bit stop bit, no check bit. 2. Installation doc.rejeee.com/web/#/32?page_id=340...
- Page 4 For example, connect eth0 to configure 192.168.0. X, and connect eth1 to configure 192.168.1.X network segment. If you access the “Ethernet” network card of “control panel” = > “network connection” on windows to set it, as shown below, you only need to configure the IP address and subnet mask, and X can doc.rejeee.com/web/#/32?page_id=340...
- Page 5 Open the browser and enter the gateway IP that has just passed the test in the address bar, as shown below. Enter the user name and password to log in. The default user name and password are both rejeee. After successful login, the basic information of the gateway can be displayed as below：...
- Page 6 5. Package and Transportation 5.1. Package list The package list for GL600 as below: 1．GL600 gateway 2．Sucker antenna*2 3．Power adaptor*1 5.2.
- Page 7 2022/4/2 18:00 GL610 Gateway User Manual--ShowDoc 2. The ambient temperature for storage is - 25℃-70℃, the relative humidity does not exceed 85%, and there is no corrosive gas in the air. doc.rejeee.com/web/#/32?page_id=340...
