SCH HBU900 Operating Instructions

Towed water unit
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

TOWED WATER UNIT
Ref: HBU900
.
(FOR NON-HIGHWAY USE)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HBU900 and is the answer not in the manual?

Questions and answers

Summary of Contents for SCH HBU900

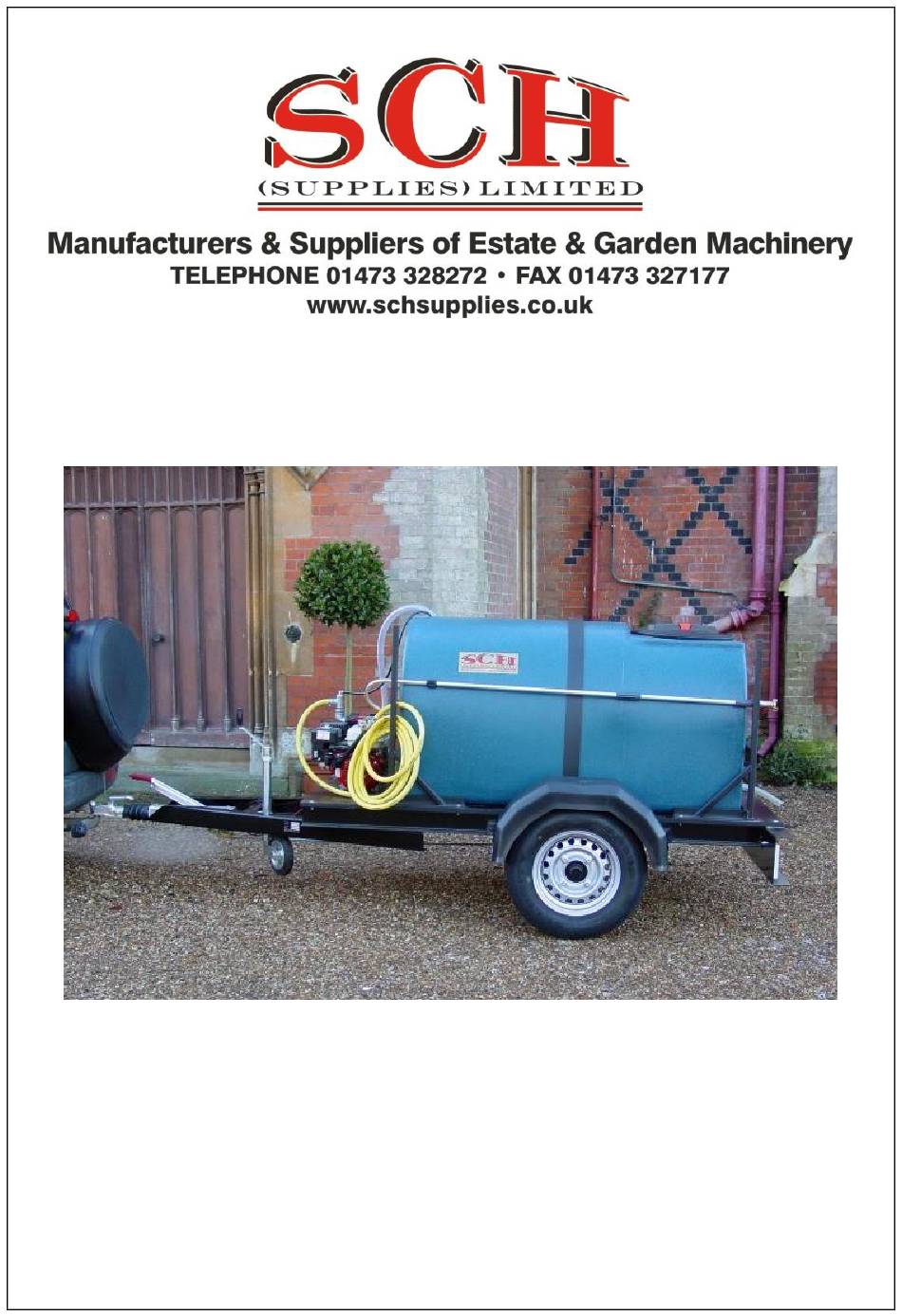

  • Page 1 OPERATING INSTRUCTIONS TOWED WATER UNIT Ref: HBU900 (FOR NON-HIGHWAY USE)
  • Page 2 SPECIFICATIONS L: 3000mm (118”) x W: 1500mm (59”) x H: 1300mm (51”) Dimensions Tank capacity 900L (200 gallons) Weight empty 250kg (1150kg full) 12 volt DC diaphragm pump with free flow up to 19 litres per Pump (Electric) minute. 2” Honda centrifugal pump with free flow up to 450 litres per Pump (Petrol) minute.
  • Page 3 Check the unit for visual faults before use.  Any faults or observations must be reported as soon as they are noticed If in doubt, please call the SCH customer help line at 01473 328272. IMPORTANT  DO NOT RUN THE PUMP WITHOUT WATER ...
  • Page 4  MAKE SURE THE RED HANDLED BYPASS VALVE TAP IS CLOSED.  For additives in powder form – pre mix in a container and add slowly to the tank. PARTS LIST FOR HBU900 Description Quantity Complete pump Telescopic lance On / off lever tap...
