QUICK REFERENCE GUIDE - CONTEXT SENSITIVE 4 BUTTON IR REMOTE

4 BUTTON

IR REMOTE

INTRODUCTION

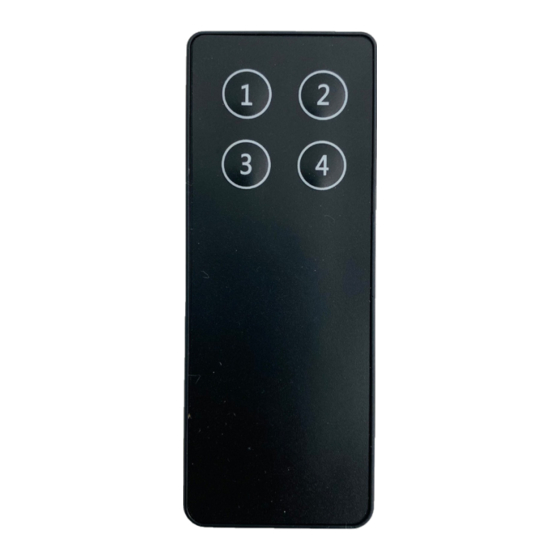

The Context Sensitive 4 Button IR Remote is ideal for switching between TV sources without using the web UI or

TV remote. This is compatible with our neo:4 Professional.

FEATURES

• 4 keys designed to work with video matrix that have a maximum of 4 inputs.

• Comes included with CR2025 battery.

• Compact design, lightweight & easy carry.

• Low power consumption.

• Use standard Pulse-Eight IR Receiver (sold separately).

• Comes together with a replaceable battery (CR2025).

• Simple yet intuitive interface.

• Works exclusively with Pulse-Eight video matrixes.

Table of Contents

Need help?

Do you have a question about the CONTEXT SENSITIVE and is the answer not in the manual?

Questions and answers

Summary of Contents for PULSEEIGHT CONTEXT SENSITIVE

Page 1 4 BUTTON IR REMOTE INTRODUCTION The Context Sensitive 4 Button IR Remote is ideal for switching between TV sources without using the web UI or TV remote. This is compatible with our neo:4 Professional. FEATURES • 4 keys designed to work with video matrix that have a maximum of 4 inputs.
Page 2 QUICK REFERENCE GUIDE - CONTEXT SENSITIVE 4 BUTTON IR REMOTE LAYOUT Front Rear Numbered input buttons Battery slot BATTERY REPLACEMENT 1. Press down on the tab () and insert your fingernail into the slit to pull out the battery case.
Page 3 QUICK REFERENCE GUIDE - CONTEXT SENSITIVE 4 BUTTON IR REMOTE INSTALLATION AND USAGE Standard IR Setup Standard setup having HDBaseT receivers on all the room. Connect each IR receiver into the HDBaseT receivers. Please keep in mind that the remote’s only function is to switch sources. So, any additional IR control for the source device (such as using IR to control a Blu-ray player) must be accompanied by transmitter IR for the source to function.
Page 4 QUICK REFERENCE GUIDE - CONTEXT SENSITIVE 4 BUTTON IR REMOTE Control IR Setup Control IR setup having an IR receiver on the CTRL port on the video matrix. Please keep in mind that the remote’s only function is to switch sources. So, any additional IR control for the source device (such as using IR to control a Blu-ray player) must be accompanied by transmitter IR for the source to function.
Page 5 QUICK REFERENCE GUIDE - CONTEXT SENSITIVE 4 BUTTON IR REMOTE TROUBLESHOOTING Should you encounter installation diﬃculties or issues with device communication, the following checklist of common issues and causes should help resolve your issues. If you still continue to experience issues, please contact your local representative for further assistance.
Page 6 QUICK REFERENCE GUIDE - CONTEXT SENSITIVE 4 BUTTON IR REMOTE COPYRIGHT NOTICE No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its parts translated into any language or computer file, in any form or by any means (electronic, mechanical, magnetic, optical, chemical, manual, or otherwise) without express wrote permission and consent from Pulse-Eight Limited.
