STARTEC CAPTURE RADAR PRO 2.2.2 Manual

Art. 50500400 Art. 50500441
Art. 50500442 Art. 50500443
CAPTURE RADAR PRO 2.2.2
Microwave motion detector for industrial doors* (2 m - 10 m)
1

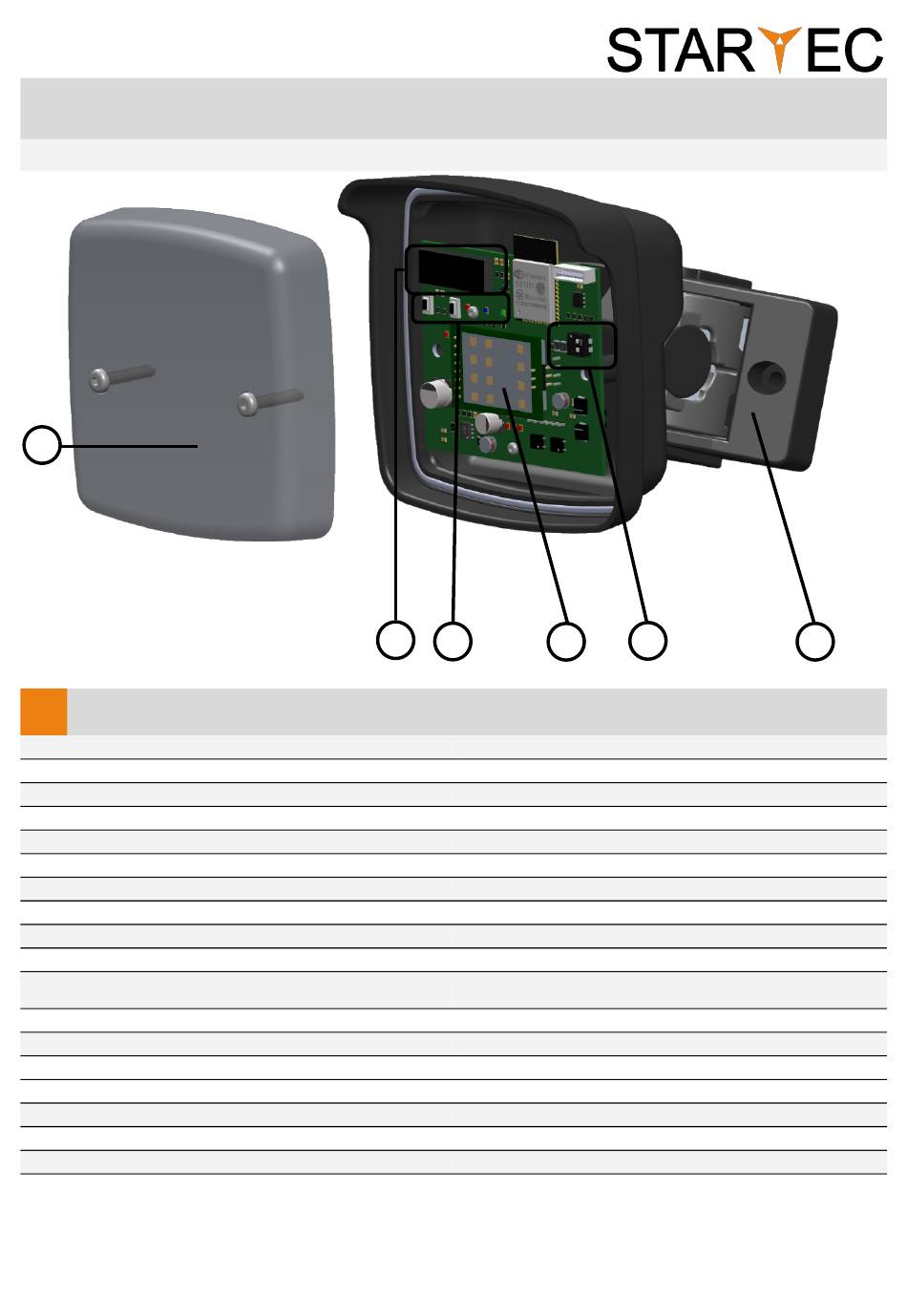

1. Front cover
2. OLED display
3. Programming Buttons and LEDs
4. Radar module
5. Dip switch
6. Mounting bracket

TECHNICAL SPECIFICATIONS

1
Technology:
Transmission frequency:
Transmitter radiated power:
Transmitter power density:
Detection mode:
Detection zone:
Minimum detection speed:
Supply voltage:
Mains frequency:
Max power consumption:
Outputs:
Mounting height:
Protection class:
Temperature range:
Inclination angles:
Materials:
Weight:
Cable lenght:
Norm conformity:
Technical data may be changed without prior warning.
* The use of the sensor other than described cannot be guaranteed by the manufacturer.
** Under optimal ambient conditions.
2
3
Microwave doppler radar
24,150 GHz
< 20 dBm EIRP
2
< 5 mW/cm
Motion
34° x 80°
5 cm/s**
12V/24V AC/DC insert a 1A fuse on external power supply
50 - 60 Hz
< 2 W
2 outputs: NO/NC configuration (Normally open/closed)
Max. load voltage: 42V peak or DC; Max. load current: 500 mA
2-10 m
IP65
-30 °C to +60 °C
0° to 45° vertically; +30°, +15°, 0°, -15°, -30° horizontally
ADA + Polycarbonate
240g without cable, 637g with cable
Available in 4 versions: a) 6 m, b) 8 m, c) 10 m, d) 15 m
EN IEC 62311:2020; EN IEC 62368-1:2014/AC:2015/AC:2017/A11:2017;
EN 55032:2015 + A11:2020; EN 55035:2017/A11:2020;
ETSI EN 301 489-1 V2.2.3; ETSI EN 301 489-3 V2.1.1;
ETSI EN 301 489-17 V3.2.4; EN 300 328 V2.2.2
1
5
4
6
