Summary of Contents for Sports Ami probo-t 1854
- Page 1 Sports User Manual 1854...
-
Page 2: Table Of Contents
Sports Table of Contents a. Know Your Robot ……………..…………………………………………………………01 b. About the Product …………….………………………………………………………….02 c. Technical Parameters …………….………………………………………………………….07 d. Installation Steps …………….………………………………………………………….08 e. Troubleshooting …………….………………………………………………………….15 f. Dos And Donts ……………..…………………………………………………………16... -
Page 3: Know Your Robot

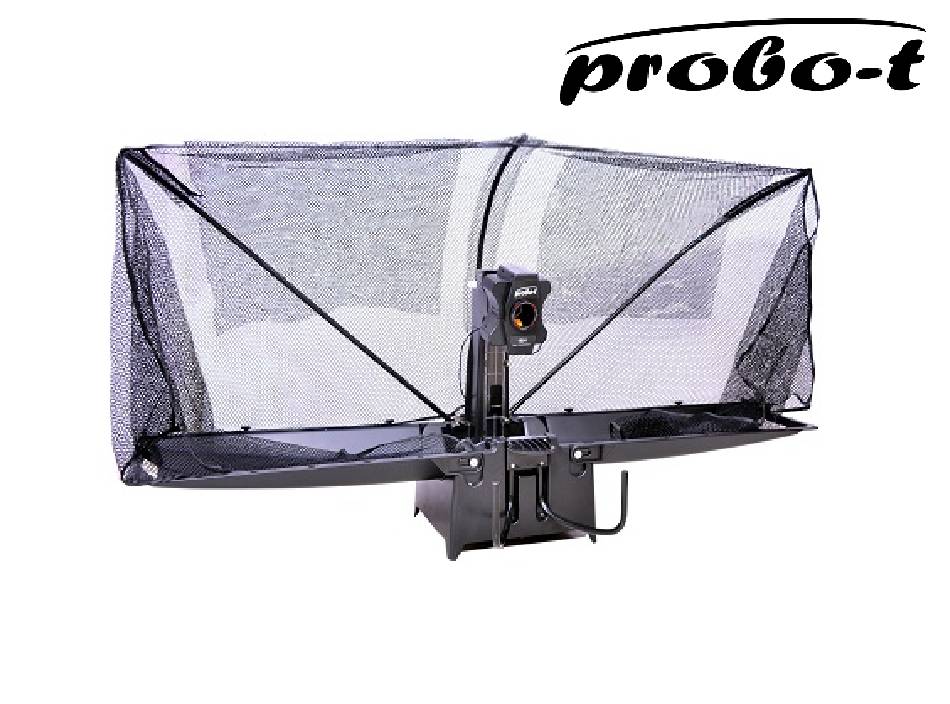

Sports Know Your Robot Robot Head – Should be rotated for Enabling Spin Net Curtains – Should be in the front of the robot Side Support – Should be expanded Side Support – Should be expanded Ball Collection Tray Ball Conveyor – Unscrew if the balls are stuck Iron Support –... -
Page 4: About The Product
Sports About the Product (1) Features 1. Oscillation – adjustable to partial or full table 2. Serving Options – Direct and Indirect 3. Multiple Spin Options - Left and Right Side, No Spin, Topspin, BackSpin 4. Adjustable Angle for Ball throws 5. - Page 5 Sports About the Product (2) Oscillation Range Oscillation could be achieved by setting the “Adjusting Levers” at the back of the Robot Head View illustration and Instructions on the next page for details...
- Page 6 Sports About the Product (3) Adjusting Levers Oscillation Range Different Positions of the Adjusting Lever will allow the control on oscillation. 3-4 : Full Table 3-5 : ¾ Left Side of the Table 2-4 : ¾ Right Side of the Table 1-4 : Right Half of the Table 3-6 : Left Half of the Table 2-5 : Middle of the Table...
- Page 7 Sports About the Product (4) Angle Adjustment Loosen the knob when you need to change the ANGLE of the robot head DO NOT LOOSEN THE KNOB WHEN THE ROBOT IS WORKING. STOP THE ROBOT FROM THE STOP/PAUSE BUTTON ON THE CONTROL BOX AND THEN TRY THIS. ANY ATTEMPT TO TRY THIS OTHERWISE WOULD RESULT IN MALFUNCTIONING AND DAMAGES BEYOND REPAIR Service Simulation...
- Page 8 Sports About the Product (5) Adjusting the Spin Multiple Spin combinations are possible. The robot head could rotate 180 degrees. Possible rotations Position -1 of robot head Rotation of Top Wheel is Top Spin. Rotation of Bottom Wheel is Back Spin. Top Wheel Both wheels Rotating at same speed is no spin...
-
Page 9: Technical Parameters
Sports Technical Parameters Sl. # Parameter Value Gross Weight 11 Kgs Net Weight 8.5 Kgs Packing Dimensions 91cms X 37cms X 37cms Rated Voltage 100V – 240V Rated Power Rated Frequency 50/60 Hz Serving Frequency 30-100 Balls/Minute Serving Speed 4-40 meters/second Point Of Fall Random Body Color... -
Page 10: Installation Steps
Sports Installation Step - 1 Unpack and Verify the accessories b. Post Sets for Side Support Net Fixing – 2 Units a. Robot – 1 Unit c Digital Control Box (wired with the Robot) – 1 Unit d. Fixing Stand for Digital Control Box – 1 Unit... - Page 11 Sports Installation Step - 2 Open the Left and Right Tray in expanded Position. It should look like the below, post this step...
- Page 12 Sports Installation Step – 3 Fixing the Net You would see 5 support rods behind the head of the Robot The Center Rod is the longest and should not be touched. The 2 outer long ones would be used to insert into the nets for Net Expansion. The two shorter ones are fixed but should be moved sideways(as shown in the illustrations ahead).
- Page 13 Sports Installation Step – 3 contd.. Join the 2 support rods...
- Page 14 Sports Installation Step - 4 Fixing the Robot onto the TT Table Expand the Curved Support Bars Understanding the Mechanism Fix the Support Bars underneath the table for the grip...
- Page 15 Sports Installation Step - 5 Fixing the Side Supports and Net Pick up the 2 Post Sets and fix them up like you would normally do for the Table Tennis Net. These has small rods/pillars emerging out, which are used to fix the Net with. Follow the Steps as illustrated below a.
- Page 16 Sports Installation c. Fixing the gaps...
-
Page 17: Troubleshooting
Sports Troubleshooting Observation Possible Cause Possible Resolution No Reaction from the Robot Power Failure Check power connection. Try alternate power supply Problem with ball delivery Ball grove could be dirty Clean the grove with dry cloth removing any dust particles that may Balls not of recommended size Verify and replace balls if needed Balls damaged... -
Page 18: Dos And Donts
Sports Best Practices Use ONLY 3 star 40 mm or 40+ balls. DO NOT MIX 40mm and 40+ balls. Avoid using soft balls. Usage of soft balls could result in balls getting stuck inside the robot. Balls should always be cleaned and dried. Avoid dust getting onto the balls as this may result in balls getting clamped The robot must be used only under the guidance of adult or experienced supervisor DO NOT make any adjustments to the angle, robot head for spin or the oscillations,... - Page 19 Sports www.sportsami.com +91 93150 79557 contact@sportsami.com...
