110-220VAC Fan Coil and HAU Thermostat installation guide

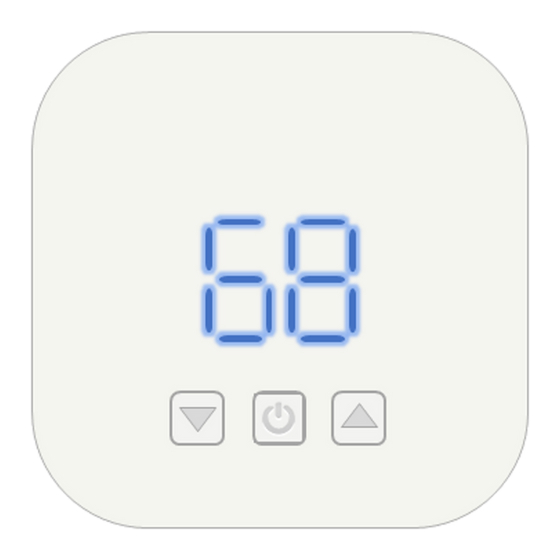

Model: Airconet-FC240
1. Remove the back panel using flat object
2. Mount thermostat's back cover
at upright position on the wall.
Cut cover and insert AirCon wires
3. Disconnect main power breaker and wire thermostat as follows:
4 pipes (2 valve)
Caution 1: the 5 outputs are 'Live'
Caution 2: Ensure AC switching is on Live (otherwise swop L and N)
4. Attach the thermostat to the back panel by pushing it onto the wall.
Ensure it is tightly mounted all around (confirm there is no gap)
5. Connect power supplies back
6. Press the thermostat's power button to ensure the thermostat is
connected properly. The display should show the room temperature
Screws
2 pipes (1 valve)
Up
Cut out
Advertisement
Table of Contents
Summary of Contents for Airconet FC240
- Page 1 110-220VAC Fan Coil and HAU Thermostat installation guide Model: Airconet-FC240 1. Remove the back panel using flat object 2. Mount thermostat’s back cover Cut out at upright position on the wall. Cut cover and insert AirCon wires Screws 3. Disconnect main power breaker and wire thermostat as follows:...
- Page 2 After successful connection to internet the red light should be normally OFF Follow the instruction on: http://www.airconet.net/ap Note: to reset the thermostat network manually, switch off thermostat and then press and hold the up/down button 10 seconds until all light are off...
