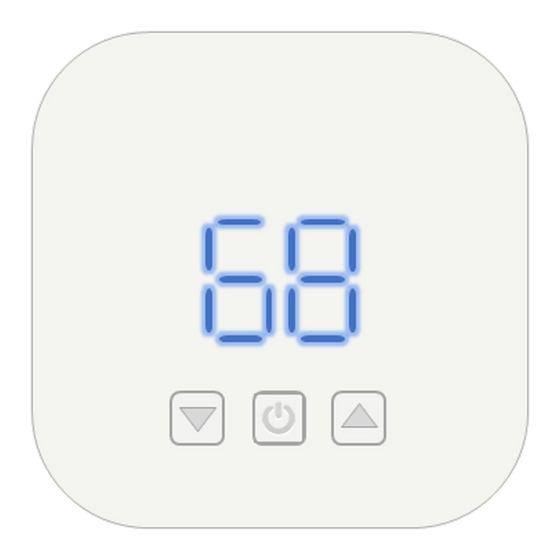

110-220VAC Heat Pump Thermostat installation guide
Model: Airconet-HP240
1. Remove the back panel using flat object
2. Mount thermostat's back cover
at upright position on the wall.
Cut cover and insert AirCon wires

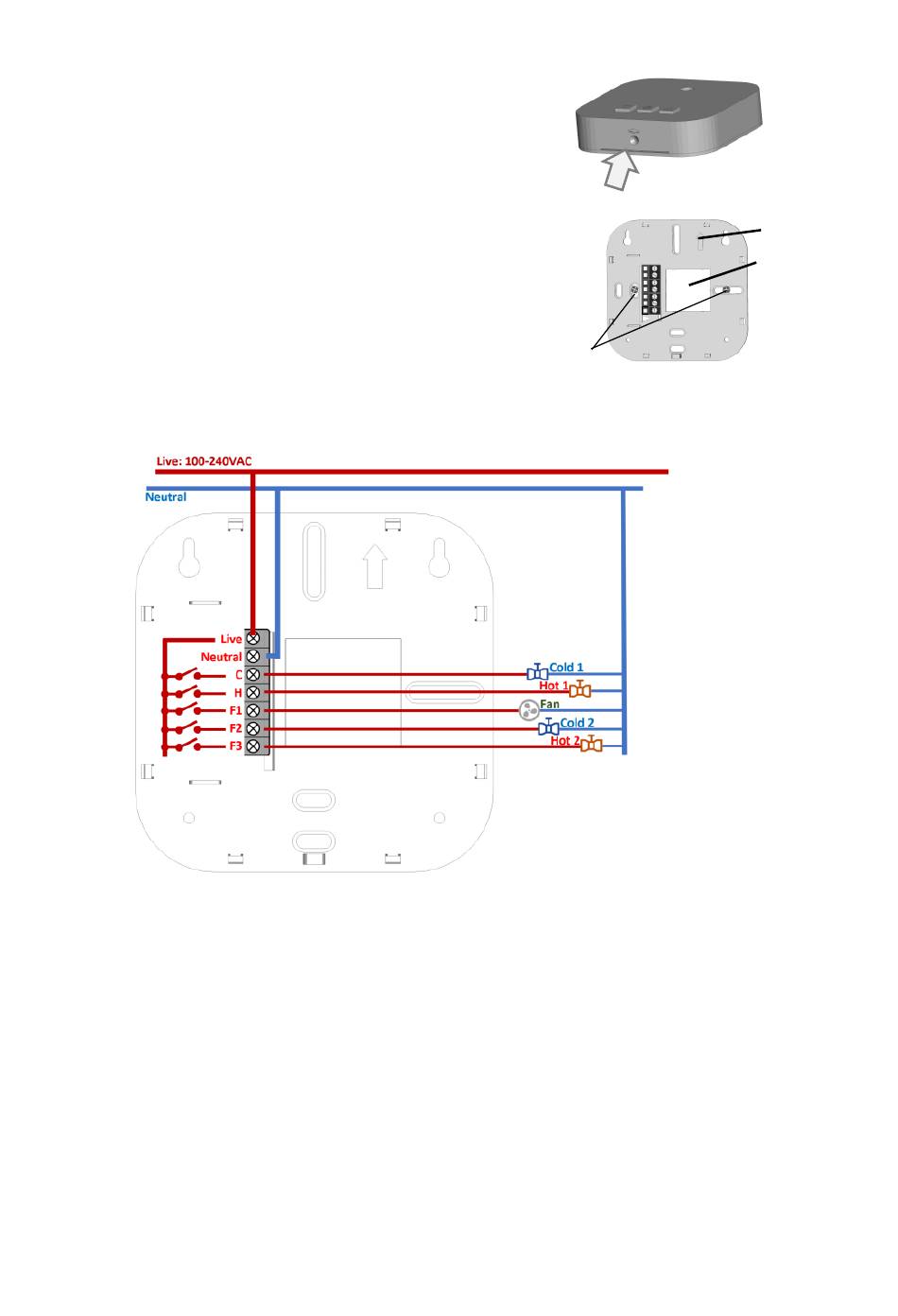

3. Disconnect main power breaker and wire thermostat as follows:
Caution 1: the 5 outputs are 'Live'
Caution 2: Ensure AC switching is on Live (otherwise swop L and N)
4. Attach the thermostat to the back panel by pushing it onto the wall.
Ensure it is tightly mounted all around (confirm there is no gap)
5. Connect power supplies back
6. Press the thermostat's power button to ensure the thermostat is
connected properly. The display should show the room temperature
Screws
Up
Cut out
Advertisement
Table of Contents
Summary of Contents for Airconet HP240
- Page 1 110-220VAC Heat Pump Thermostat installation guide Model: Airconet-HP240 1. Remove the back panel using flat object 2. Mount thermostat’s back cover Cut out at upright position on the wall. Cut cover and insert AirCon wires Screws 3. Disconnect main power breaker and wire thermostat as follows: Caution 1: the 5 outputs are ‘Live’...
- Page 2 7. Setup the thermostat: a) Press to Power On thermostat b) Hold + for 3 sec. to enter setup (light will flash) set ‘parameters’ with d) press to change setup mode e) Follow setup bellow C → Temperature mode select: F is Fahrenheit (not compatible with App) C is Celsius (default) ΞS →...
- Page 3 After successful connection to internet the red light should be normally OFF Follow the instruction on: http://www.airconet.net/ap Note: to reset the thermostat network manually, switch off thermostat and then press and hold the up/down button 10 seconds until all light are off To Delete Thermostat from App and network (to replace router), press the ‘delete’...
