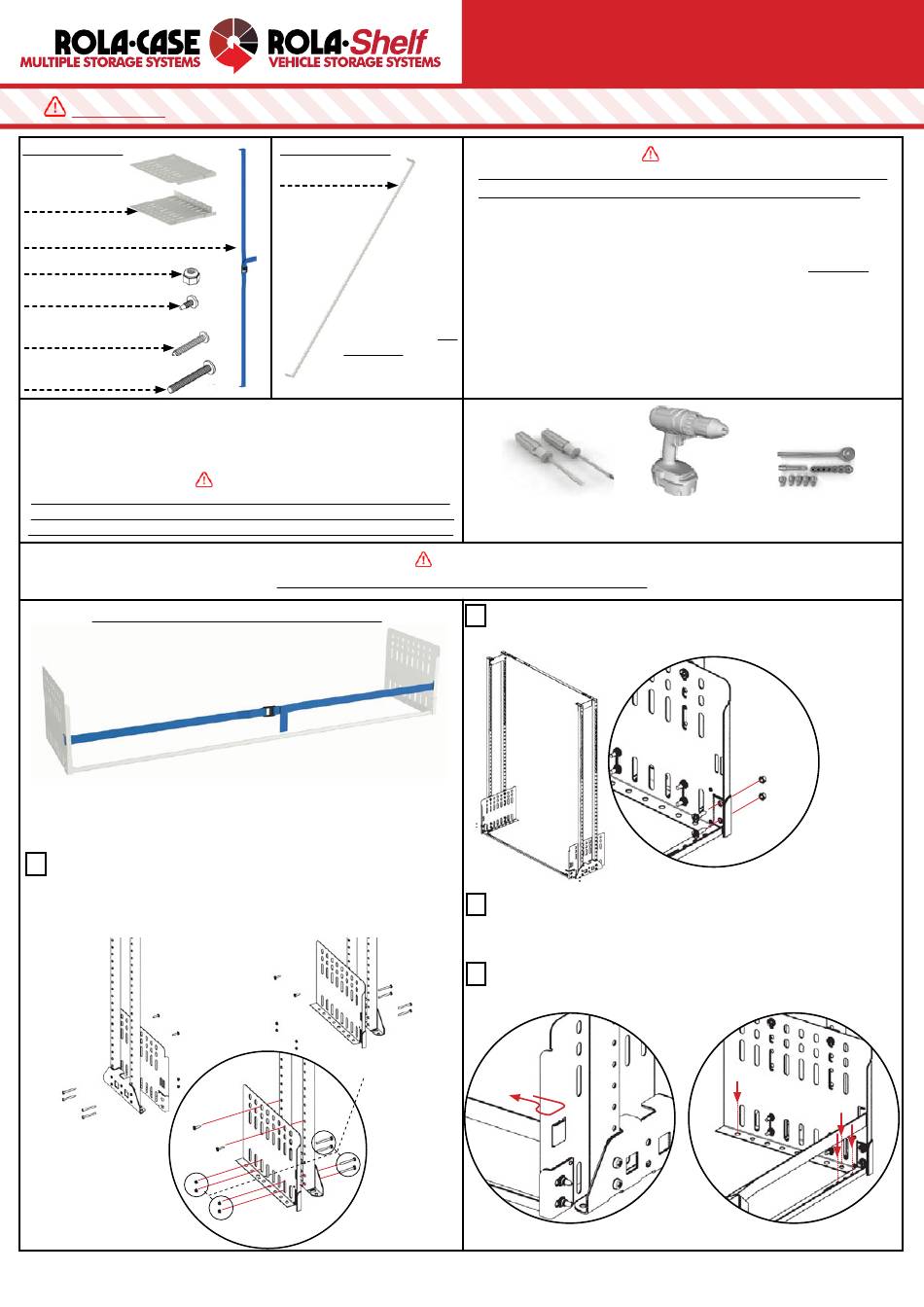

ROLA-CASE RSFLE Installation Manual

ATTENTION: PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLING/INSTALLING THIS PRODUCT

RSFLE INCLUSIONS:

2 PERFORATED
WALLS
1 STRAP WITH BUCKLE
4 NYLOC NUTS
8 SCREWS
2 SELF TAPPING SCREWS
4 PAN PHIL BOLTS
Complete Kit RSFLE + RS120A - comes in 2 separate parts:
• RSFLE - Walls and Fabric Strap
• RS120A - 12 Series Bar
All RolaCase/RolaShelf shelving products are to be used exclusively and in conjunc-
tion with RolaCase and RolaShelf shelving bays only. Failure to do so will cause the
shelving/products to perform in a nonfunctional manner and will void your warranty
Please note: You must purchase 1x RSLFE + 1x RS120A to complete the kit
• RSFLE + RS120A
(fits in RSSFR/HD/120/1539 or 2006 or RSEFR/HD/120/1539 or 2006)
Note: Make sure you have the right bar to fit into your frame, failure to do so will
result in incorrect fitment. Your RolaCase frame needs to be installed in your vehicle
prior to installing the RolaCase Floor Enclosure
A
Begin by securing your RSFLE walls into the bottom part of your posts, where the
HD feet are of your frame, making sure that the holes align and it is only finger tight,
refer to next image. Please note: you may need to remove some screws from the HD
feet if you already have them installed in your vehicle floor
Loosely secure with
supplied nuts and
screws
ALL DESIGN CONCEPTS ARE INTELLECTUAL PROPERTY OF ROLACASE AND ARE NOT TO BE COPIED, DISTRIBUTED OR COMMUNICATED TO UNAUTHORISED PARTIES

RS120A INCLUSIONS:

1 RS120A
Please note: you
must order 1x RSFLE
plus or 1x RS120A to
complete this kit
ATTENTION
IMAGES USED IN THIS GUIDE MAY VARY SLIGHTLY DEPENDING ON YOUR MODEL
Nuts and bolts
supplied with
frames
FOR TECHNICAL SUPPORT CALL: 1 (857) 334 0300 /
INSTALLATION MANUAL
RSFLE + RS120A (Floor enclosure)
ANY ALTERATIONS, UNINTENDED OR UNAPPROVED WORK/USE OF THIS PRODUCT COULD CREATE A
HAZARDOUS CONDITION THAT CAN CAUSE DEATH, PERSONAL INJURY OR PROPERTY DAMAGE.

BEFORE YOU BEGIN:

• THE AVERAGE EXPECTED INSTALL TIME FOR THIS PRODUCT IS 20 MINUTES
• READ ALL THE INSTRUCTIONS BEFORE ASSEMBLY & INSTALLATION
• ALWAYS WEAR APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT, ESPECIALLY
EYEWEAR WHEN INSTALLING OUR PRODUCTS
• CONFIRM YOU HAVE ALL THE NECESSARY PARTS, TOOLS, EQUIPMENT, & TIME
REQUIRED BEFORE COMMENCING

TOOLS REQUIRED:

Screw Drivers
ATTENTION
B
After your RSFLE walls have been temporaly secured on the posts, it is time to
secure the RS bar (which is sold separately) to the RSFLE walls, refer to next image
C
We recommend screwing the floor enclosure down to a flush floor via some of
the pre-drilled holes, be careful not to drill into crucial part of the vehicle that could
affect/damage performance, refer to next images
D
Install the fabric strap, make sure the mechanism will work appropriately, refer to
next images:
Install fabric strap
E-MAIL: support@usrolacase.com / WEB: www.rolacase.com
WARNING
Cordless Drill with Rachet, Sockets,
& or Spanners
Torque settings
Carefully secure to the floor
Secure RS Bar
with provided
nuts and screws
