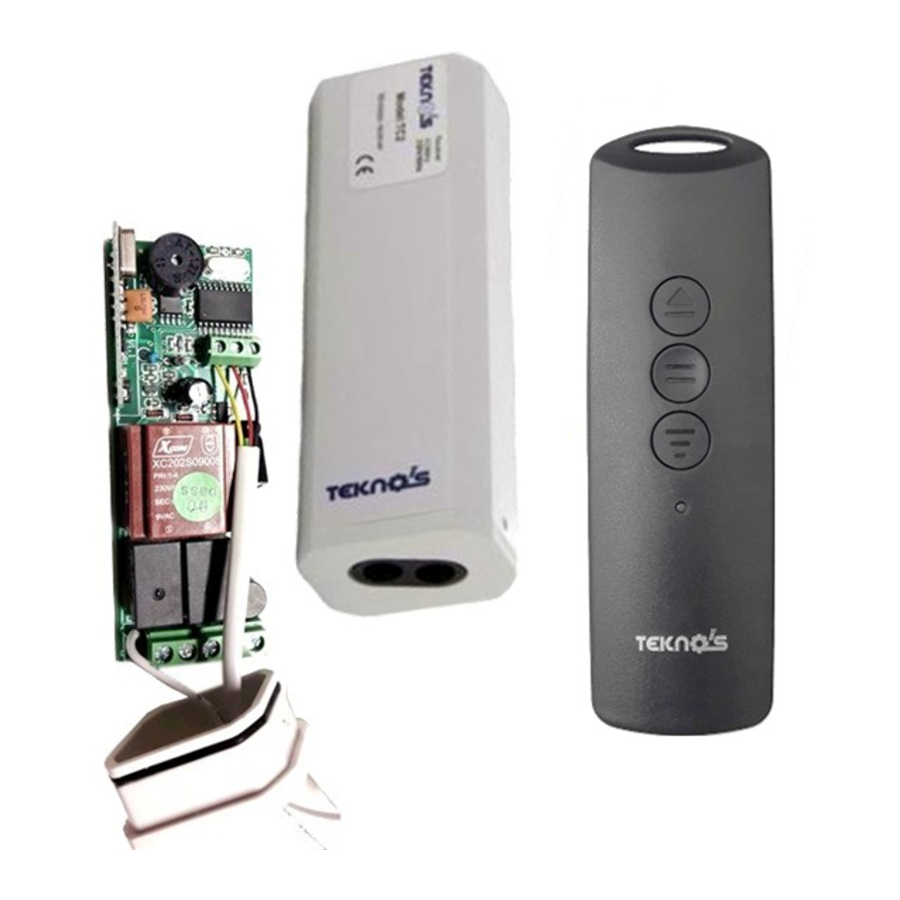

Teknos TC1, TC2 - Receviers Manual

Please note that improper installation can cause serious damage to persons or property Is then obligatory read and make reference to the instruction manual carefully.

RECOMMENDATIONS FOR THE INSTALLER

The installation must be performed by qualified personnel according to current safety standards, the manufacturer disclaims any liability in the event of incorrect installation or misuse of the product.

The warranty does not cover bumps or fall that can damage the motor and make it dangerous if installed

The control switch must be set in view of the appliance to a height of 1.5 m higher.

The motor has IP44 degree of protection should therefore be protected from contact with water and rain, always provide the gooseneck on the power cord

In the case of motor installed on awnings, leave a space of at least 40cm between the fully open and an object.

Do not use the motor when in range of automation there are people or objects that could hamper its movement.

If automation is used for more than 4 minutes, the engine stops and will resume working only when the temperature has dropped and the engine has cooled. (In order not to overheat the motor, discourage misuse or movements that are too frequent).

The motor must be installed at a height of 2.5 meters, if not possible, the automation should be specially protected.

Provide for the installation of a switch to power the motor.

The warranty does not cover any tampering or improper use of automation.

RECOMMENDATIONS TO THE CUSTOMER

Never allow children to play with remote controls or fixed devices.

Keep remote controls away from water and out of reach of children or pets.

Do not stand in the operating range up to complete opening or closing.

Do not operate the motor when working in the vicinity (for example, when you wash windows or perform maintenance work in the operating range it is required the power off.

Periodically check the installation and in the case it shows signs of wear, call qualified personnel.

When replacing the power cable, contact a qualified technician.

Connection diagram FOR RECEIVER TC2

Programmation for receivers TC1 TC2

Apply power - The motor moves 2 times down and up select a channel (not zero)

press P - press P - press Down - The motor move 2 times down and up

If the motor moves the contrary, swap the brown and black wires on the central, or repeat the program by pressing UP instead of down.

ADD TX (every receiver can accept 7 TX)

select a channel (not zero)

press P of the TX Master - The motor moves 2 times down and up

press P of the TX Master

press P of the TX New - The motor moves 2 times down and up

ADD SENSOR (every receiver can accept 1 SENSOR)

select a channel (not zero)

press P of the TX Master - The motor moves 2 times down and up

press P of the TX Master

press P of the SENSOR - The motor moves 2 times down and up

SENSOR TEST press UP button of the sensor – the awning have to close

TIMES OF WORK

Every commands UP or DOWN will stop automatically after 180 sec.

WIND ALARM

After a wind alarm the awning will be closed automatically and will be impossible make other commands for 10 minutes

SUN SENSOR

When the light will be over the sensitivity that we choose, after 5 minutes the receiver will open the awning.

When the light will be under the sensitivity that we choose, after 15 minutes the receiver will close the awning.

SUN OFF select a channel (not zero)- Press together UP and DOWN of the TX. The motors moves 2 times

SUN ON select a channel (not zero)- Press together UP and DOWN of the TX. The motors moves 6 times

PROGRAMMING SENSOR WITHOUT TX (motor moves only with switch)

Apply power - press P of the SENSOR press P of the SENSOR

press UP of the SENSOR - The motor moves 2 times down and up

SENSOR TEST press UP button of the sensor – the awning have to close

SENSOR FAILURE

In the event of a breakdown in communication between the sensor and the receiver, the awning will start working in mode sensor failure, for a command given the awning will move for 5 seconds and then stop the movement until the next command.

CLEARING MEMORY

Clearing memory is automatic when you repeat the procedure for programming the TX master.

Warranty

Tekno'S s.r.l. provides tubular motors for 60 months from the date of manufacture and electronic components for 24 months.

Jurisdiction: since the contracts are finalized through the order confirmation in the province of Turin in case of litigation it will be applied the Italian law and the jurisdiction of the Court of Turin Italy

DECLARATION OF CONFORMITY

TEKNO'S declares that the products TC1 TC2 are in accordance with the Essential Security Guidelines:
73/23/EEC Low Voltage Directive (LVD) / Low Voltage Directive (LVD). Directive 89/336/EEC Electormagnetic Compatibility (EMC) / Electromagnetic Compatibility (EMC). Machinery Directive 98/37/EEC.

This instruction manual should always be left in support of the automation in compliance and enforcement of regulations, made in extra ue.
