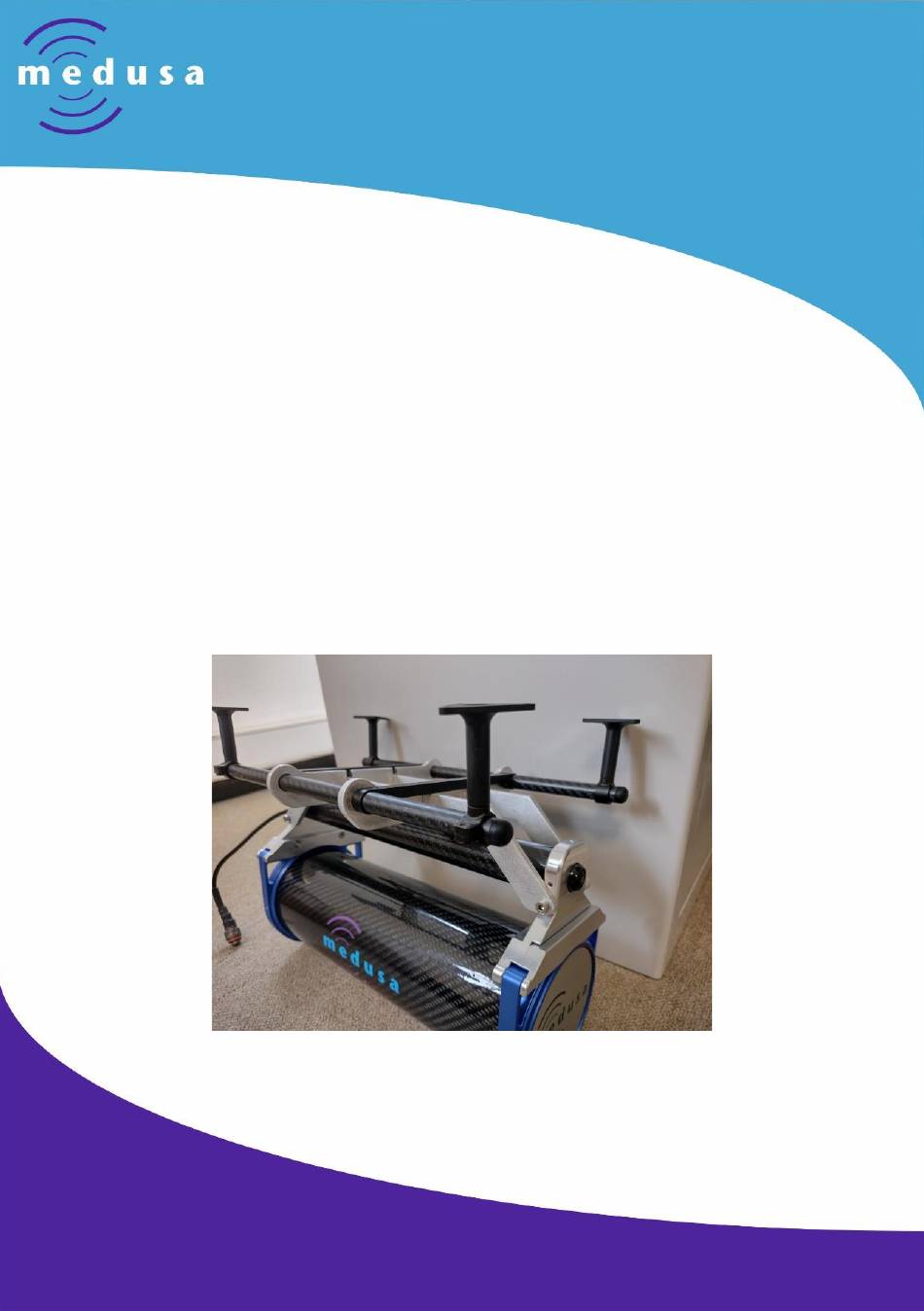

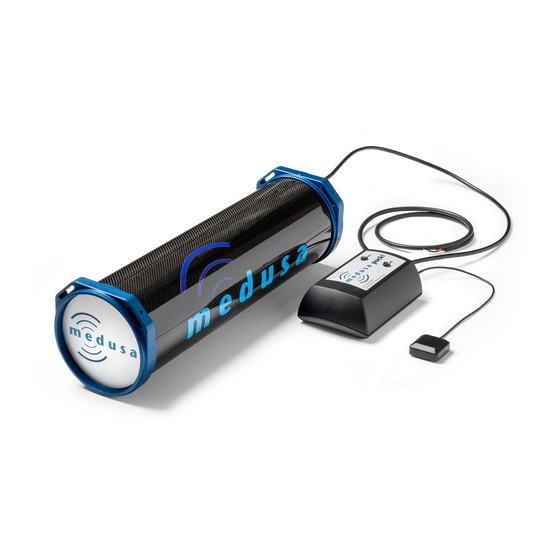

- Page 1 Assembly instructions MS- 350/700/1000 drone mount for DJI M-600...
- Page 2 Manual version: V1.0 Manual date: 05-08-2022 Medusa Radiometrics Skagerrak 26 9723 JR Groningen Netherlands. Tel: +31 50 5770280 Mail: info@medusa-online.com http://www.medusa-radiometrics.com/...
- Page 3 Introduction We have made a special drone mount for use under M-600 drones. These drones normally come with a mounting frame that can be used to attach your gear (see images below). The following steps will explain how to mount your sensor.
- Page 4 Parts provided by Medusa Medusa provides the 4 aluminium parts and bolts needed to connect the handle to the drone mount.
- Page 5 Parts from M-600 The M-600 normally comes with a frame shown in the picture below. Sometimes the frame comes in a dissembled form.
- Page 6 Step 1. Prepare the M-600 mounting frame Screw off two of the black feet (see the image below). Then remove a black rod on the two black carbon rods. Continue with the mounting instructions of the Medusa Parts mentioned below.
- Page 7 Step 2. Mounting the Medusa parts Put the 2 short Aluminium plates onto the carbon rods with the cut-outs facing down (see image on the left). And move the black rod towards the middle of the M-600 mount. This will secure the aluminium plates.
- Page 8 Move the second black rod from the other side towards the aluminium plates and tighten the screws to secure their position.
- Page 9 Now put the remaining black feet back on the M-600 mount.
- Page 10 Step 3. Mounting your detector Finally, attach the mounting while turning it upside down on the MS- xxx handle and tighten using the 4 M3 bolds. It is advised to use Loctite to secure these bolts.
- Page 11 Medusa Radiometrics Skagerrak 26 9723 JR Groningen Netherlands. Tel: +31 50 5770280 Mail: info@medusa-online.com http://www.medusa-radiometrics.com/...
