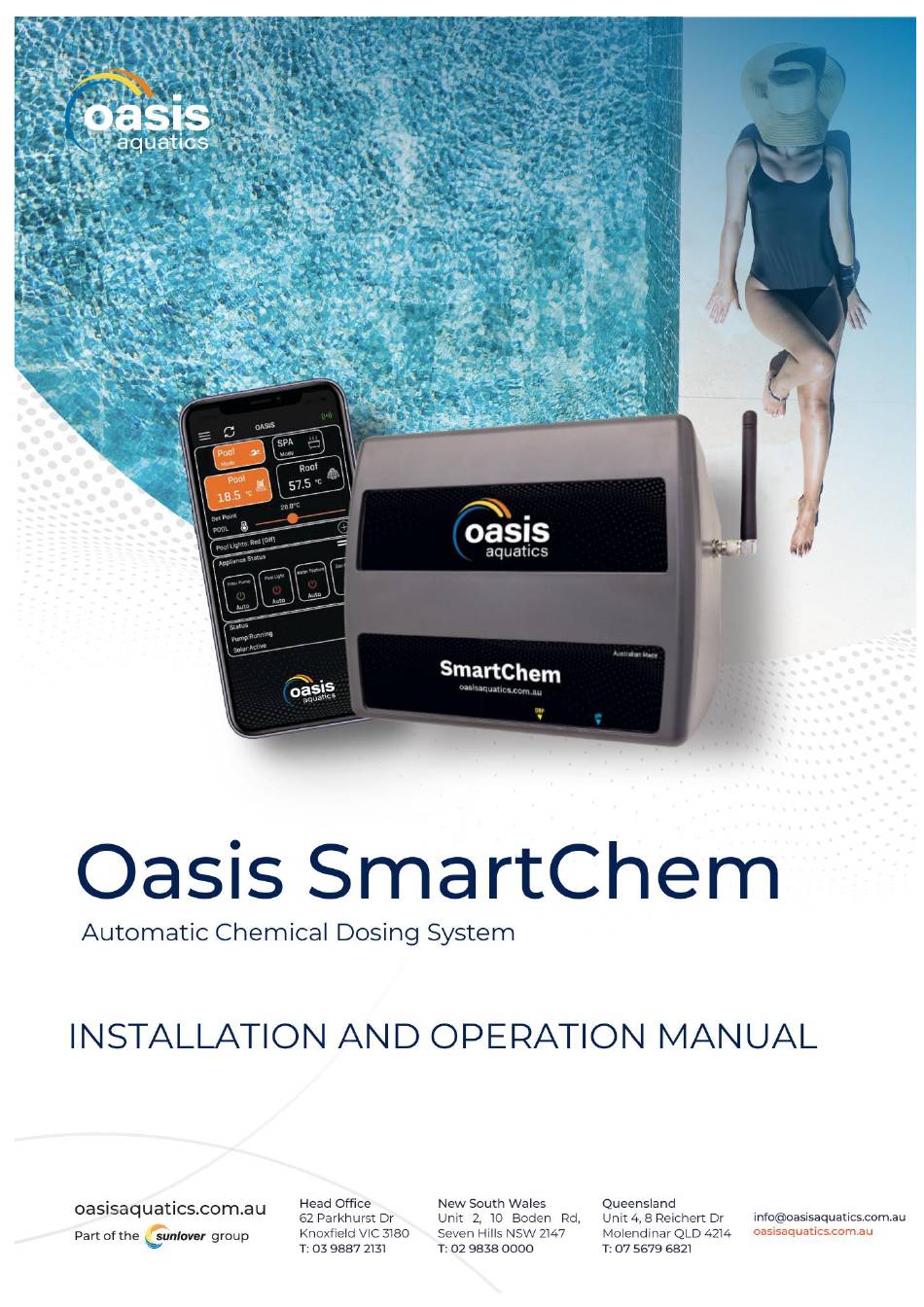

Summary of Contents for Oasis Aquatics SmartChem
-
Page 2: Table Of Contents
Maintenance Schedule ........................13 Probe Cleaning ..........................14 Replacing The Squeeze Tube ....................... 15 SYSTEM TROUBLESHOOTING ....................16 FURTHER INFORMATION ......................19 WARRANTY ..........................21 TECHNICAL SUPPORT ......................22 NOTES ............................23 Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 1 of 22... -
Page 3: Important Warnings & Safety Instructions
24hrs. This will help the probes to give a more accurate reading from the time of installation and will help with the longevity of the probes. Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 2 of 22... -
Page 4: General Overview
Thank you again for choosing an Oasis Aquatics Smartchem system. We wish you many happy years of swimming in your crystal clear pool. -
Page 5: Installation
Solar Return Check Valve Heater Acid Tub Chlorinator Cell/ ORP & pH Probes in Ioniser Housing, Filter Sensor Manifold Ozone Venturi, etc Filter Pump Injection Manifold Pool Suction Pool Return Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 4 of 22... - Page 6 The communication cable from the Oasis SmartChem has been connected to either the Oasis Smart Master Controller or the right-hand port in the last Expansion Unit. (see diagram below) Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 5 of 22...
-
Page 7: Base Plate
Dangerous Goods Codes and Standards, to prevent fume build-up, and at least 1.8M away from your pool equipment so as to not cause corrosion damage of your pool equipment. Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 6 of 22... - Page 8 Lastly, connect the power cable from a valve actuator port (at the base of the Oasis Smart Master Controller) to the Oasis SmartChem (see Base Plate Diagram on page 5). As power is only been taken from the Valve Actuator output, the valve Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 7 of 22...
-
Page 9: Controller Connection
Once it does, the Oasis SmartChem is now active and can be utilised through the App and you can exit the Expansion menu by pressing the Menu button on the controller. Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 8 of 22... -
Page 10: App Setup
Once you have set your Pool size (and Spa size if you have one), tap on the red buttons beside pH Sensor and ORP Sensor (will turn Green) to activate them. Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 9 of 22... - Page 11 Chlorine is added/dosed only when the ORP reading is below the ORP Set Point. If the reading is below 300mV then Chlorine won’t be dosed, and you will need to manually add chlorine. • The ORP Offset will only allow an adjustment of +150mV to -150mV. Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 10 of 22...
- Page 12 • A high pH reading indicates that the pool water has become Alkaline. This makes it harder for the Chlorine to kill the germs in the pool water. Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 11 of 22...
- Page 13 If the Chlorine level is to high, a Chlorine Reducer chemical can be added to the pool to reduce the Chlorine level. If the system is displaying ---, it indicates that there may be a fault with the probe itself or indicates an invalid reading. Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 12 of 22...
-
Page 14: Ancillary Instructions
Get in contact with your local pool technician if you need help with the maintenance of your pool and or your pool equipment and the Oasis SmartChem system. Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 13 of 22... -
Page 15: Probe Cleaning
Soak the tip in approximately 0.1M nitric acid for 15-20 minutes, followed by conditioning in 20% KCl. HINT: Clean the electrode periodically. Unclean sensor tips are a very common source of error in ORP measurements. Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 14 of 22... -
Page 16: Replacing The Squeeze Tube
Once re-installed, ensure that you go back into the Chemical Setup menu in the App and turn the Acid Dosing button back to the On position and prime the dosing pump as per page 9 of this manual. Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 15 of 22... -
Page 17: System Troubleshooting
Check to ensure that no water is returning to the Dosing container. Replace the Check valve (non-return valve) if there is water returning to the dosing container. If there is no Check Valve installed, please install one. Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 16 of 22... - Page 18 No liability or responsibility is accepted persons or OASIS AQUATICS Pty Ltd appointed agents. OASIS AQUATICS Pty Ltd reserves the right to refuse warranty if any damage caused to the chlorinator or auxiliary pool equipment that is not a result of a manufacturer’s defect.
- Page 19 Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 18 of 22...
-
Page 20: Further Information
<300 (check), >800 (check), or –-(check). • The Smartchem will be able to read a ORP range of 0 (little to no Chlorine) to 1000 (possibly over chlorinated) but any reading outside of the 300 to 800 range will only be displayed in the Chemical Setup option of the menu. - Page 21 If you need to balance your pool system before installing the Smartchem, add the pool chemicals slowly and carefully allowing an appropriate interval of time for the added chemicals to properly mix throughout the pool system. Continue testing and adding chemicals until the pool system becomes balanced.
-
Page 22: Warranty
• Keep your original purchase invoice and serial number in a safe place. If the power cord is damaged, do not use the controller. Return the unit to the supplier for repair. Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 21 of 22... -
Page 23: Technical Support
No liability or responsibility is accepted for any loss suffered as a result of any user’s reliance on such content. Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 22 of 22... -
Page 24: Notes
NOTES Oasis SmartChem - INSTALLATION AND OPERATION MANUAL Page 23 of 22... - Page 25 A part of the Victoria New South Wales Queensland 62 Parkhurst Drive Unit 2, 10 Boden Road Unit 4, 8 Reichert Drive Knoxfield VIC 3180 Seven Hills NSW 2147 Molendinar QLD 4214 Australia Australia Australia T: 03 9887 2131 T: 02 9838 0000 T: 07 5679 6821 oasisaquatics.com.au info@oasisaquatics.com.au...
