Summary of Contents for TrailMaster cheetah i6

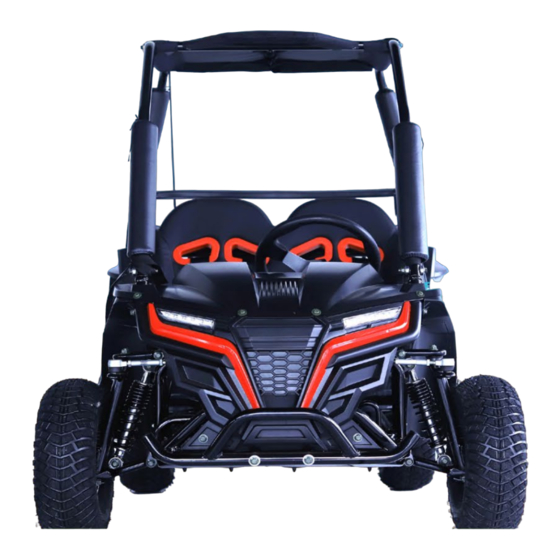

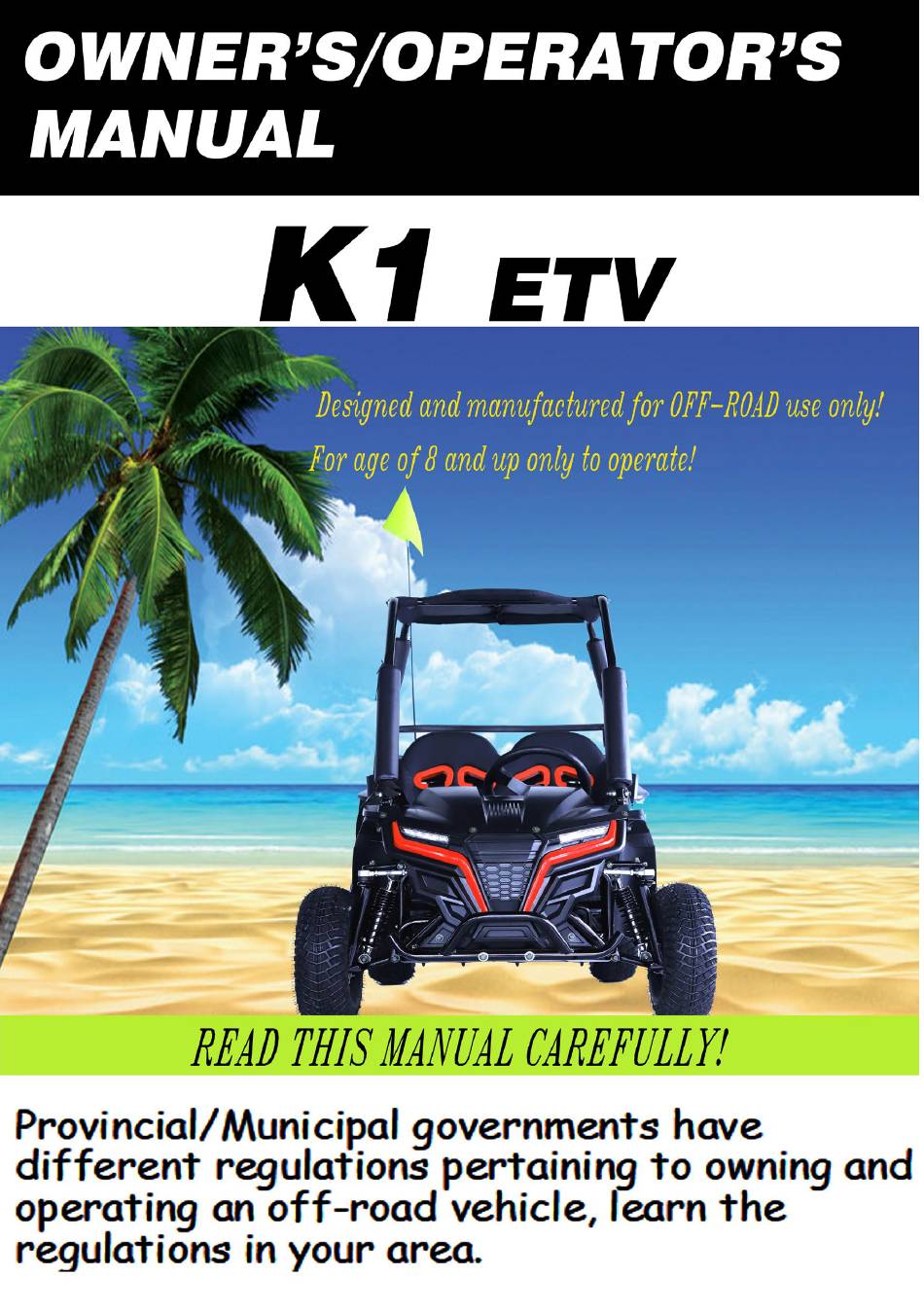

  • Page 1 WNER’S/OPERATOR’S...
  • Page 2 he manual describes the safety and maintenance information of the product. Please read the relevant warnings carefully before using this product, or it may cause injury or death. Please keep this manual in safe place. Any rider should read it. When the product is transferred, the manual should be handed over to new owner.

  • Page 3: Main Technical Parameters

    Main technical parameters I. Main Technical Parameters of kart 1. Net weight（No battery）: 100kg; 2. Gross weight: 120kg; 3. Carrying capacity: 60kg; 4. Maximum designed carrying capacity: 65kg; 5. Maximum designed total weight:200kg; II. The Main Parameters of Motor: 1. Motor type: DC, brush motor 2.
  • Page 4 Name of each part ANTI-ROLL BAR FRONT LOWER SUSPENSION ARM ,L SEAT PROTECTING BAR STERING WHEEL FRONT LOWER SUSPENSION ARM ,R UPPER SUSPENSION ARM CUSHION ASS'Y. FR STEERING GEAR ASSY FR.WHEEL ASSY.R SPINDLE AND STRUT SUPPORT,L SPINDLE AND STRUT SUPPORT,R FR.WHEEL ASSY.L...
  • Page 5 REAR CAGE RACK 21 Chain VIN.NO 22 Brake REAR WHEEL ASS Y.L REAR SWING Electric box 24 REAR WHEEL ASS Y.R MOTOR 25 CUSHION ASSY. RR Motor mount bracket 26 FRAME Chain regulator Controller...
  • Page 6 28 Battery case 30 Air break switch 29 Charger port...
  • Page 7 31 Brake pedal 34 3-speed switch 32 Accelerator pedal 35 Headlamp switch 33 Forward/Reverse Switch Electric door lock(Switch on/off)

  • Page 8: Important Safety Information

    Introduction As a recreational vehicle, electric kart is only for non-road and single ride. This mini electric bicycle is suitable for the young inexperienced riders with weight less than 132 pounds. Please understand the principles of electric kart before use. In order to protect your kart, we suggest you to maintain it well.
  • Page 9 There are various forms for safety information, including: Safety labels on electric kart. 危险 Safety sign and one of three signal words below: Danger, Warning and Caution. If above instructions can not be read and complied carefully, you or others would be possible to be killed or seriously injured.
  • Page 10 Rule 3 At one’s own risk and common sense When using electric products, any accident is likely to cause serious injury even death. Avoid riding in front or back out of sight, not drive where there are other vehicles, avoid riding too fast. Speed should be kept in permitted range. Always comply with local traffic laws and regulations, prohibit riding within the banned range.

  • Page 11: Initial Settings

    • Do not let your child try to ride if he/she is not ready for it. • You have to accompany your child when he/she is riding. • Proper repair and maintenance are the key factors of safety ride. Caution: Bike performance would be affected if components which are not produced by us are adapted or added on the bike.

  • Page 12: Charging The Battery

    Charging the Battery Your electric kart may not have a fully charged battery. Please charge the battery before using. When vehicle is not in regular use, recharge battery at least once a month until normal use is resumed. If you have left the power switch on or your product has not been charged for a long period of time the battery may reach a stage at which it will no longer hold a charge.

  • Page 13: Operation Controls

    Operation controls Operate accelerator, brake and other controlling parts of this electric kart without looking. Please learn carefully the following diagram and be familiar with the functions and position of each control part. ANTI-ROLL BAR FRONT LOWER SUSPENSION ARM ,L SEAT PROTECTING BAR STERING WHEEL...
  • Page 14 REAR CAGE RACK 21 Chain VIN.NO 22 Brake REAR WHEEL ASS Y.L REAR SWING Electric box 24 REAR WHEEL ASS Y.R MOTOR 25 CUSHION ASSY. RR Motor mount bracket 26 FRAME Chain regulator Controller...
  • Page 15 28 Battery case 30 Air break switch 29 Charger port...
  • Page 16 31 Brake pedal 34 3-speed switch 32 Accelerator pedal 35 Headlamp switch 33 Forward/Reverse Switch Electric door lock(Switch on/off)
  • Page 17 On/Off Switch:1 Throttle works while the button in at position of ON, and it does not work while the button is at position of OFF. Switch should be kept off to protect the battery if no use for the vehicle. Throttle:4 It controls the speed of the motor and is located in the front right corner of the cockpit.
  • Page 18 Forward/Reverse Switch R: Reverse F: Forward Turn the switch only when the vehicle stops completely. Otherwise the spare parts like controller and motor may be broken. Battery Indicator Battery indicator shows the battery level. The battery should be fully charged after every use.

  • Page 19: Before Riding

    Before Riding Please make sure that both you and kart are ready before riding. The following is checklist before ride. Every time before ride, be sure to check the following items. Checklist before ride 1. Have you read and fully understood all content of manual? 2.

  • Page 20: Basic Operation

    Checklist before ride 1. Check tire pressure with tire gauge in toolbox, ensuring tire pressure at 15-20 psi. 2. Check whether the rim is bent or damaged. 3. Check the battery power. 4. Check whether the drive chain needs lubrication or fixed. 5.

  • Page 21: Repair And Maintenance

    Step Two: Accelerate slowly When the switch has been turned on and there’s a person on kart, keep hands on steering wheel and feet on brake and accelerator. Slowly step the accelerator and you'll feel the kart begins to move forward. Slowly speed up after the kart get power.
  • Page 22 Tension of drive chain The drive chain transfers the power from motor to rear wheels. In order to ensure the normal work, it must be lubricated and tensioned at all times. Check the tension of the drive chain by vertical movement of half distance between sprockets.
  • Page 23 1. Park the kart on smooth ground . 2. Rear wheel 1-2 inches off the ground. 3. When turning the rear wheels, wipe off the dust from chain with clean cloth. 4. Turn rear wheel again, spray lubricant to all chains and ensure all chains are covered.
  • Page 24 solved. 1. Open the controller and air break switch box. 2. Turn the air break switch on. Wiring worn or compressed in system may cause short circuit. Water gets into system may cause short circuit. Adjust the brake If you feel the brake is soft, or step very hard to get the braking force, you can adjust the brakes.
  • Page 25 Check tire pressure It’s very important to check tire pressure before ride. Low tire pressure can result in that the vehicle is not operated properly and out of control. To check the tire pressure, gas bar must be placed inside each wheel rim and remove black plastic cover.
  • Page 26 standard or rechargeable batteries; use only the specialized batteries of our company. Guidance for failure handling Problems Possible reasons Solutions Check if battery is fully charged. Check if Ignition key is on. Battery level is low Kart does not Reverse/Neutral/Reverse switch is wiring run.
  • Page 27 Charger becomes hot Normal None operation is needed. when charging Adjust brake according Kart can not Brake failure instructions on Page 23 of this be stopped. manual. Chains need Kart squeaks Lubricate the chains as maintenance lubrication in traveling. section of manual. adjustment.
