Summary of Contents for PowerShield m-Senzor

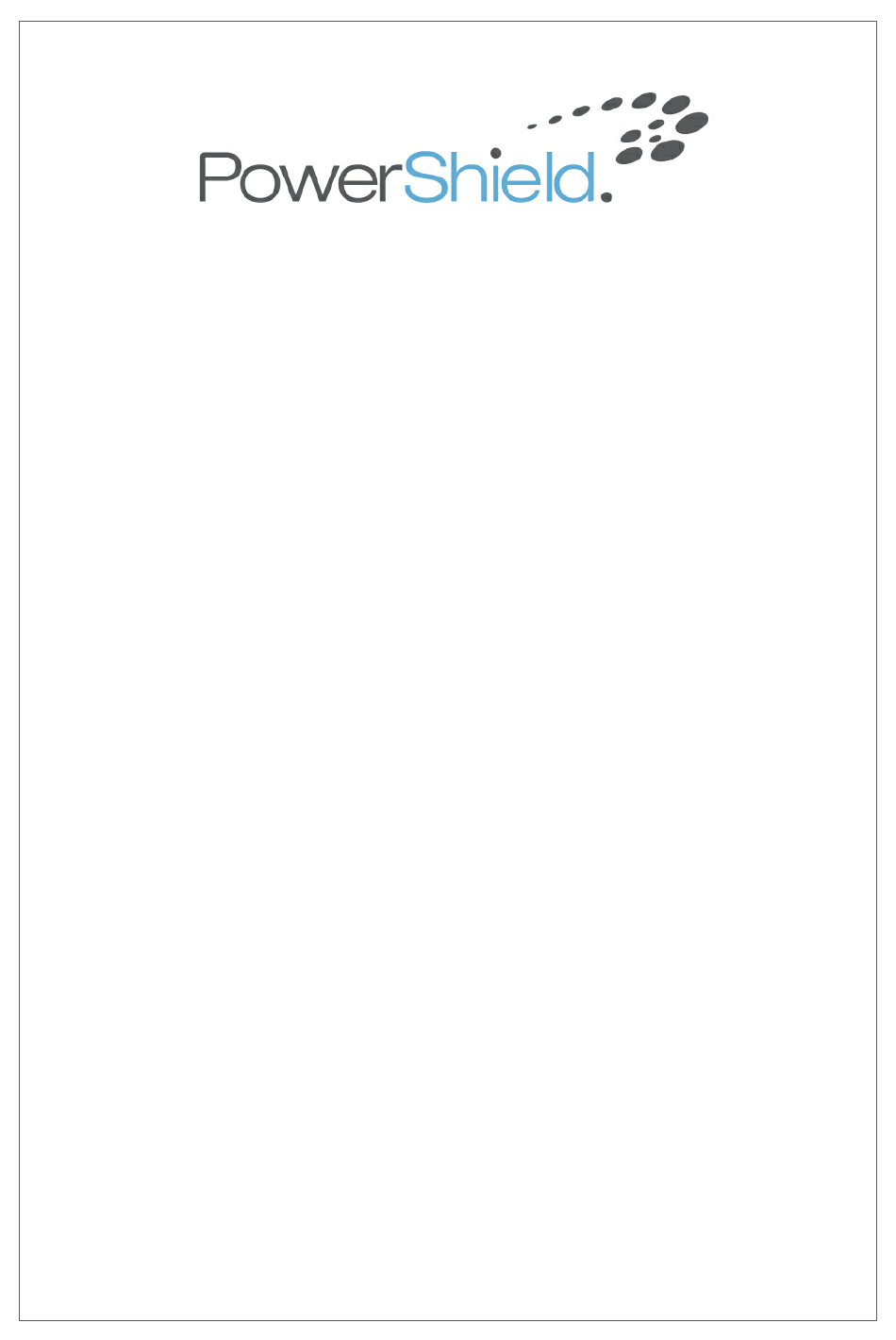

- Page 1 Sentinel Installation Manual m-Senzor © 2015 Pow erShield Ltd.
-
Page 2: Table Of Contents
Mount and Pow er Up the Sentinel ................................. 14 Step 3 – Mounting Rail for m-Senzors ................................15 Step 4 – m-Senzor Pow er Leads ................................15 Step 5 – Connect m-Senzors ................................16 Step 6 – Connect the BBus ................................ - Page 3 Contents ........................... 30 String Configuration Form (SCF) ........................... 31 Monoblock Mapping Form (MMF) 11 Appendix 7 - Monitor & m-Senzor Replacement ........................... 32 Replace a Monitor ........................... 32 Replace an m-Senzor 12 Appendix 8 - Models and Part Numbers ........................... 34 Sentinels ...........................
-
Page 4: Introduction
Introduction Introduction This manual is intended for use with SENTINEL battery monitoring systems that use the m-Senzor range of devices. This includes the full upgrade path from the voltage only m-Senzor to the voltage/temperature/ ohmic value m-Senzor. Note: This manual does not cover the installation of SENTINEL systems that use Measurement Modules. -
Page 5: Definitions For This Manual
For this manual the term has been standardised as monoblock to avoid using the somewhat unwieldy convention of "monoblock/jar" throughout String two or more monoblocks connected in series Battery Bank complete system of parallel connected strings © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 6: Installation Quickguide
Installation QuickGuide Installation QuickGuide © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... - Page 7 Installation QuickGuide © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor...
- Page 8 Installation QuickGuide © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor...
-
Page 9: The Sentinel Battery Monitoring System
Each system consists of at least one Sentinel monitor, an m-Senzor for each pair of monoblocks being monitored, temperature probe and current transducer. An RS232 serial communication port has been provided to be used with Configuration and Link software. For larger systems, multiple Sentinel monitors can be 'daisy-chained'. -
Page 10: Installation - Preliminaries
4.1.3 Faceplate The faceplate, label and LED arrangement of the Sentinel is shown below. Refer to Appendix 1 for a full description of LED behaviour. © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 11: System Capacity
All external communications must operate through the Master unit, a Slave will not communicate. Item Connection Type Used for... Service Port RS232 Temporary local connections. Port 1 (Optional) Ethernet Permanent local or remote monitoring connections. © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 12: M-Senzor

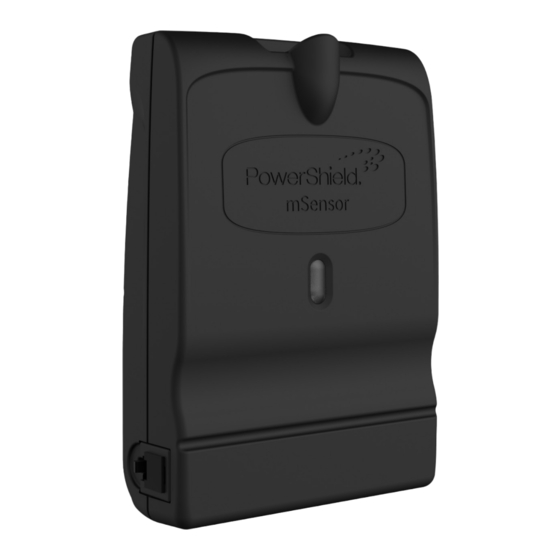

4.1.6 m-Senzor Each m-Senzor is specific to the monoblock voltage to which it will be fitted, e.g. 2V / 6V / 12V. The m-Senzor is a dual device and is connected across a pair of monoblocks. The pair of monoblocks must be located one after the other in a series, within the same battery string. -
Page 13: Bbus
Ensure that all terminals have 6.3mm tabs available for m-Senzor connection as following: Where a dual m-Senzor is to be used – fit two tabs on the negative (-) terminal of the most negative monoblock and two tabs on the positive (+) terminal of the most positive monoblock. Fit one tab on each of the remaining terminals. -
Page 14: Step 2 - Sentinel
When the Sentinel is powered up, it will emit an audible alert, and the green Power LED will light. Other LEDs on the front panel may also light. Install the Sentinel securely. Power up and confirm operation. © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 15: Step 3 - Mounting Rail For M-Senzors
4.2.3 Step 3 – Mounting Rail for m-Senzors The m-Senzor mounting rail can be fitted in any orientation and can be used with both battery racks and cabinets. Drill to suit and fasten with screws or cable ties. Secure the mounting rail to suit battery layout. -
Page 16: Step 5 - Connect M-Senzors
The only requirement is that when connected to the Sentinel each m-Senzor on a BBus port has a different ID. The LED should light solid green when the m-Senzor is powered correctly. If the LED lights red, check the connections of the power lead. -
Page 17: Step 6 - Connect The Bbus
Sentinel BBus port. The m-Senzors can be connected in any arrangement, so long as each m-Senzor on a BBus has a different ID number. Use the short BBus interconnect cables from m-Senzor to m-Senzor, and the longer BBus port cables from m-Senzor to Sentinel. -
Page 18: Step 7 - Connecting The Current Transducer
The SENTINEL Battery Monitoring System Connect BBus port cable from one end of the m-Senzors to the Monitor. Once the BBus is connected to a powered Sentinel, the m-Senzor LEDs should flash green and red in unison. Note a maximum of 10 m-Senzors per BBus and each on that port must have a unique ID. -
Page 19: Step 8 - Connecting The Temperature Probe
– HVAC, plant etc. Install temperature probe and connect to Monitor Record details on SCF form 4.2.9 Step 9 – Communications Connect appropriate communications cabling and devices. The Sentinel supports a range of external communications. © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 20: 4.2.10 Step 10 - Confirmation
Secure all cables tidily Your SENTINEL system is now ready for configuration. You will require Config software and the associated manual, 6300-002 PowerShield Configuration Manual. Proceed with system configuration using Config software Ensure completed MMF and SCF forms are available ©... -
Page 21: Appendix 1 - Led Behaviour
LED is active. When one or more strings are in one string state, but one or more other strings are in a different state, LED flashes (refer examples below). String State Example 1 © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 22: M-Senzor
String State Example 2 4 String system: All Strings are in Float => Float LED is active m-Senzor The m-Senzor has a bi-colour [red and green] LED. It will exhibit varying behavior as described below: LED Behaviour Colour State Description... -
Page 23: Appendix 2 - Sentinel Rear Panel
The Sentinel rear panel is shown below. The power input connector will vary to match the supply. Port 1 & 2 are optional and may not be fitted. Connectors will vary to match the fitted communications. © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 24: Appendix 3 - Communications
Cat5/Cat6 Ethernet cable. Note that if you are connecting direct from Sentinel to PC/laptop, must use a crossover Ethernet cable. If you are connecting from Sentinel to PC/laptop via a network switch or hub, you do not need a crossover Ethernet cable. Function © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 25: Port 2
Connector is RJ45 with pin-outs as per the diagram below. This diagram also shows a modular connector facing towards viewer with latch upwards. Function Not connected Not connected Not connected Not connected Not connected Data + (D1) © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 26: Port 3
“daisy chain” fashion. The interconnection cable should use CAT5 specification cable with conductors 6 & 7 twisted. The connector pin-out is shown below. Function Not connected Not connected Not connected Not connected Data + (D1) Data - (D0) © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 27: Appendix 4 - Relay Outputs And Auxillary Inputs
Refer to the following table: To activate an auxiliary input simply short the terminals of the two way connector. © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 28: Appendix 5 - M-Senzor Connections
Appendix 5 - m-Senzor Connections Appendix 5 - m-Senzor Connections Dual m-Senzor Power Lead Connection Detail Single m-Senzor Power Lead Connection Detail © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 29: Appendix 6 - Installation Forms
Appendix 6 - Installation Forms Appendix 6 - Installation Forms 10.1 Site Identification Form (SIF) © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 30: String Configuration Form (Scf)
Appendix 6 - Installation Forms 10.2 String Configuration Form (SCF) © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 31: Monoblock Mapping Form (Mmf)
Appendix 6 - Installation Forms 10.3 Monoblock Mapping Form (MMF) Site Name: Sentinel Number: © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 32: Appendix 7 - Monitor & M-Senzor Replacement
Refer to 6300-002 PowerShield Configuration Manual for further details. 11.2 Replace an m-Senzor Follow these steps if you are required to replace an m-Senzor or move it for battery work. Step Action Follow the local authority health and safety procedure for opening the battery string breaker/fuse. - Page 33 Appendix 7 - Monitor & m-Senzor Replacement Step Action Fit the BBus cables and connect the power lead via the white 8-way connector at the m-Senzor. The green LED should illuminate within 4 seconds. If it does not, DO NOT proceed to Step 9.
-
Page 34: Appendix 8 - Models And Part Numbers
Port 2 9100-039 Sentinel AC Monitor 9100-040 Sentinel AC Monitor RS485 9100-041 Sentinel AC Monitor RS232 9100-042 Sentinel AC Monitor Ethernet 9100-043 Sentinel AC Monitor Ethernet RS485 9100-044 Sentinel AC Monitor Ethernet RS232 © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... -
Page 35: M-Senzors
Appendix 8 - Models and Part Numbers 12.2 m-Senzors The tables below list the available m-Senzor models and part numbers. Generation 2 Range Part Number Model 9100-081 2V Dual m-Senzor 9100-082 4V Dual m-Senzor 9100-089 6V Single m-Senzor 9100-090 6V Dual m-Senzor... -
Page 36: M-Senzor Leads
Appendix 8 - Models and Part Numbers 12.3 m-Senzor Leads The table below lists the available m-Senzor leads and part numbers. Module Power Leads Part Number Description 8102-000 300mm m-Senzor Single Module Power Lead 8102-001 400mm m-Senzor Single Module Power Lead... -
Page 37: Appendix 9 - Specifications
15m / 50ft (Greater distances may be used in a benign electrical environment.) Temperature Sensors Number of Inputs Up to 5 per Sentinel Scalable to 16 using Slave units Measuring range 0°C to 50°C/32F to 122F System accuracy ±1°C / 1.8F © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor... - Page 38 Port 1 (optional) Ethernet - 10Base-T RS485 Port 2 (optional) RS232 Modbus ASCII or Modbus RTU protocols supported Relay Outputs Number of Inputs Rating 1.25A @ 24VDC Digital Inputs Number of Inputs © 2015 PowerShield Ltd. Sentinel Installation Manual m-Senzor...
