Brown Dog Gadgets Solar Bug 2.0 Assembly Manual

Solar Bug 2.0 Assembly Guide
Select, cut and color
¹
along with the optional matching legs or wings
from the wings and legs template (found
Glue wings and/or legs to the body
²
black silhouette as your guide for placement.
Assemble solar circuit and test it outdoors in
³
sunlight
connect motor wires
HY30X60
BEFORE attaching it to the bug body.
You will need to
to the silver
dot/square ; not
anything copper .
Peel backing
from self-stick
motor.
Use two small
pieces of
Maker Tape to
secure wires
in contact with
silver dot and
square as
shown.
your favorite bug body
Peel ONE SIDE of foam tape and
stick to the underside of the
solar cell.
online).
using the
full
Stick motor
to underside
of solar cell
where shown.

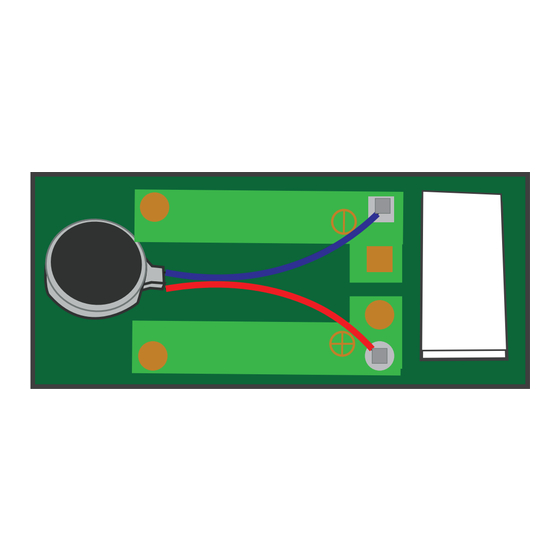

Position motor
wires as pictured.
