Screw
Universal bracket
Battery 21700
Solar power
cable
Camera power
cable
Splice two solar panels together, then fix the iron plates with special
screws under the panel, finally install the universal bracket with the
right angle
Solar panel
Screw
Screw
Microphone
Lens
TF
USB charge port
Power switch

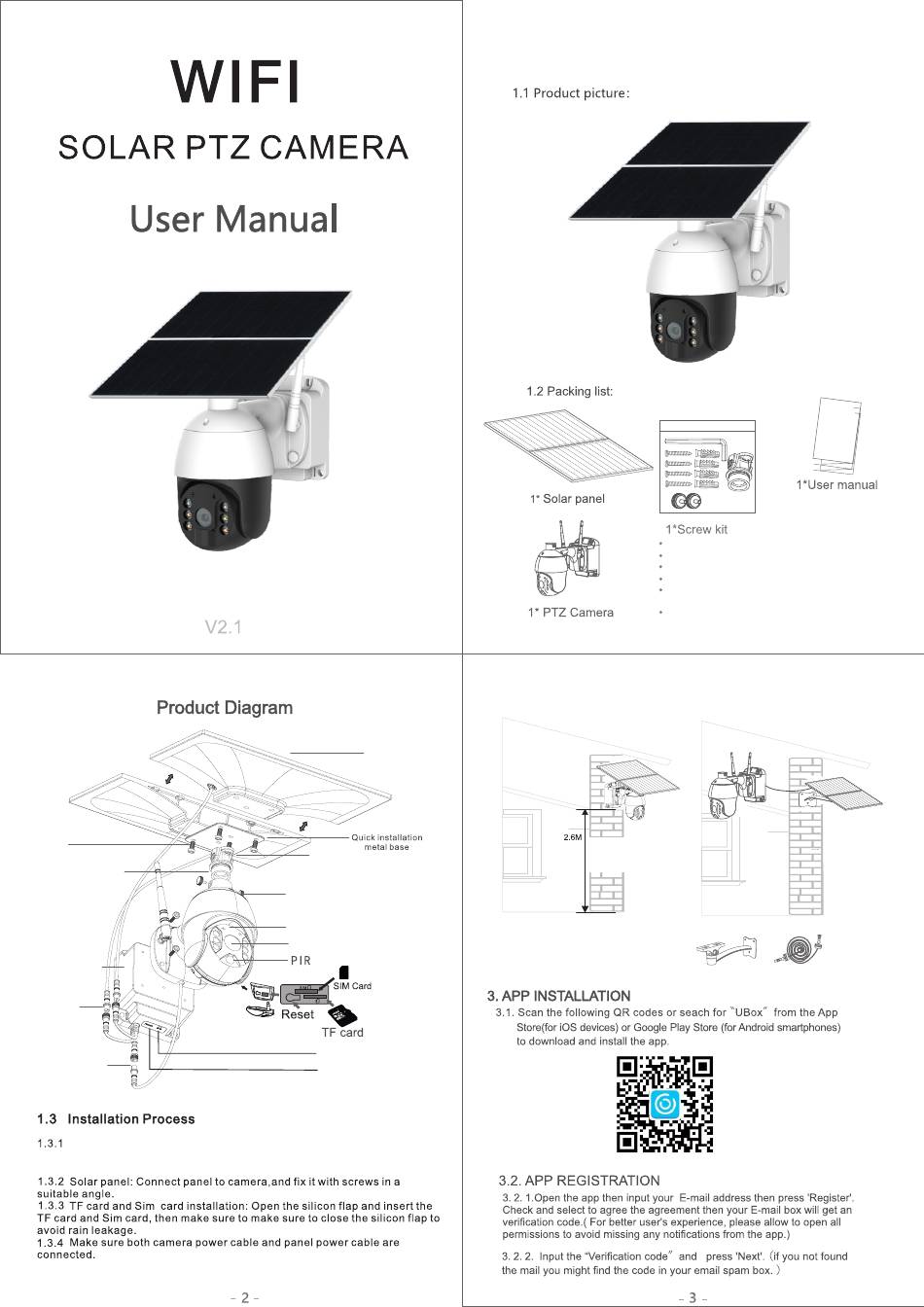

1:PRODUCTS & PACKING LIST
1* Hexagon spanner
4* Tapping screws
2*plastic-cap screw
6*Hexagon socket screw
1* USB charge cable
1* USB charging cable
2 .INSTALLATION
2.1 Intergrated installation
Recommended
installing the camera
about 2.6M
2.2 Separated installation
Accessories needed
(not standard configuration)
1*Extral power
1*Bracket
cable 3M
