Section 4-1 Mounting Assembly - Power Step PSA-EX2500-FRS Manual

FOLDING RETRACTABLE STAIRWAY
To suit Hitachi EX2500 Excavator

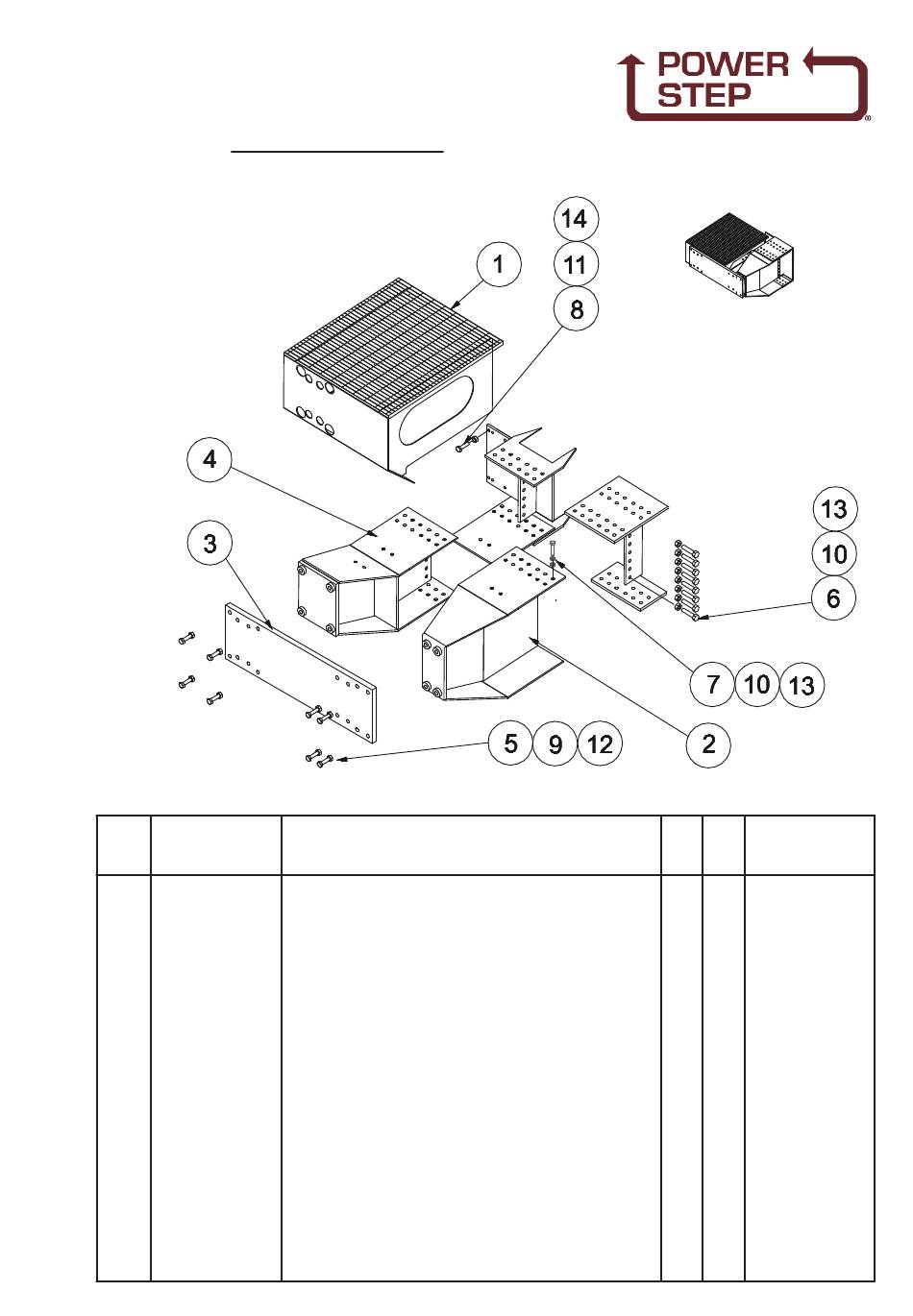

Section 4-1 Mounting Assembly

Item Part No.
-
1 PS-21605
2 PS-21086
3 PS-21606
4 PS-21601
5 PS-M24x145MM
6 PS-M20x60MM
7 PS-M20X50MM
8 CPS-M16x50MM
9 PS-M24NZP
10 PS-M20NZP
11 CPS-M16NZP
12 PS-M24NN
13 CPS-M20WH
14 CPS-M16WH
EX2500-FRS 3-8-15
Part Name
MOUNTING ASSEMBLY COMPLETE
PLATFORM INFILL
REAR OUTRIGGER BEAM
SIDE BEAM
FRONT OUTRIGGER BEAM
BOLT - M24 x 150
BOLT - M20 x 60
BOLT - M20 x 50
BOLT - M16 x 50
NUT - M24
NUT - M20
NUT - M16
WASHER - HARDENED- M24
WASHER - HARDENED- M20
WASHER - HARDENED- M16
Qty
1
1
1
1
1
8
48
12
8
8
60
6
16
120
12
Pg11
