Dear Customer,
CONGRATULATIONS. We ensure that your product will arrive in
top condition. When properly installed it will be a reliable device
for many years in your car, RV or truck.
Before You Install
This device, as well as all other wireless devices, may be subject
to interference. Interference may be caused by cell phones, Bluetooth
headsets, Wi-Fi routers, power lines and other various electrical
equipment, etc.

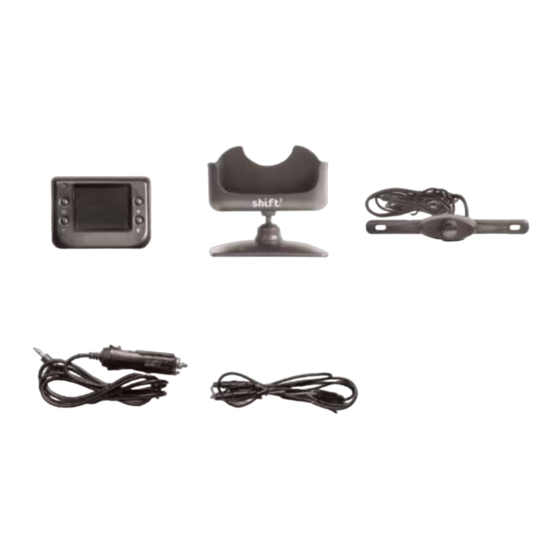

Parts
LCD Monitor
12 Volt power cord
Quick splice connectors
Wedge shims
Wireless Rear-view Camera
Monitor support
Monitor wiring cable
License plate
Grommet
nuts and bolts
INSTRUCTION MANUAL
Rear-view camera
Hook and loop fastener
License plate and
sheet metal screws
Cable ties
Advertisement
Table of Contents
Summary of Contents for MERCHSOURCE shift3
- Page 1 Wireless Rear-view Camera INSTRUCTION MANUAL Dear Customer, CONGRATULATIONS. We ensure that your product will arrive in top condition. When properly installed it will be a reliable device for many years in your car, RV or truck. Before You Install This device, as well as all other wireless devices, may be subject to interference.
- Page 2 Installation and Operation These instructions do not apply to all vehicles. They are only meant as a general guide due to the number of different makes and models. For vehicle specific questions contact your vehicle’s manufacturer. • MONITOR INSTALLATION When deciding a location to mount the monitor, make sure it is in an area that will not obstruct your vision while driving.
- Page 3 Installation and Operation • MONITOR POWER CONNECTION To supply the monitor with power, either use a 12 Volt cigarette lighter adaptor plugged into the vehicle’s cigarette lighter socket, or use a wiring harness hard wired to the vehicle’s fuse box. Power Cable with 12 Volt Cigarette Lighter Adaptor Power jack...
- Page 4 Installation 4. Before passing the power cable through the hole, insert the supplied grommet to cover the metal edges of the drill hole. 5. You will need to locate the WHITE vehicle’s Fig.2 Existing Opening for Access reverse lights This can be easily identified by the following: - With the parking brake engaged, turn your vehicle ignition key to “ON”...
- Page 5 Installation & Testing • CAMERA WIRING DIAGRAM +12V DC positive • COLORED Quick-splice connector Camera wire harness Revese light bulb • BLACK Quick-splice connector Wireless rear-view camera -12V DC negative (GROUND) • QUICK-SPLICE WIRING INSTRUCTIONS Insert the existing Insert the wire Crimp tap with pliers, wire to be tapped to be attached...
- Page 6 Rear-View Camera, including but not limited to damaged property, injury and/or loss of life. MerchSource LLC do not have any liability for any decision, action or in reliance on the Rear-View Camera, or for any delays, inaccuracies and/or errors deriving therefrom. In no event, shall MerchSource LLC in action taken by any person in connection with the Rear-View Camera and its functioning.
