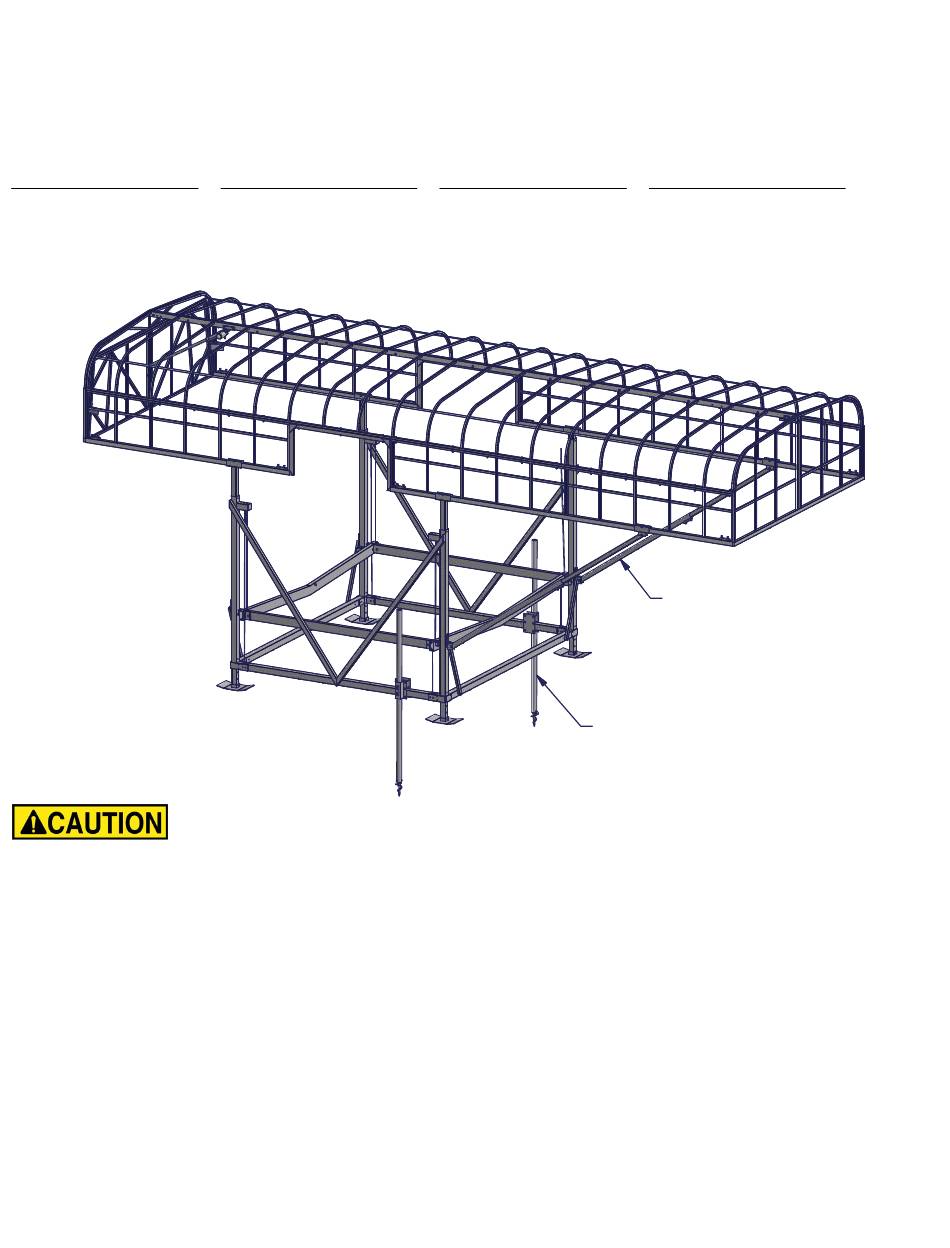

TowerMax Canopy
Instructions
Part #:
10ft Wide 12 Volt System
1042234 - 25x120
1042235 - 27x120
1042236 - 29x120
1042237 - 31x120
1042238 - 33x120
- PUT SAFETY FIRST
Failure to follow instructions may result in personal injury and may invalidate the applicable
warranty.
-Before attempting to install this canopy, study and fully understand the proper operating procedures
and safety precautions outlined in this owner's manual.
-To avoid personal injury use proper protective clothing and safety eyewear when assembling,
installing, removing, or servicing this product.
-A canopy frame with the canopy cover attached is a wind hazard! Do not leave cover on frame unless
canopy is secured to a properly installed boat lift.
-Canopy frame and cover cannot support excess weight. Do not stand on, hang from, or set heavy
objects on canopy.
-Inspect all canopy bolts, nuts, cords, and hooks every three months for loose or damaged parts.
Tighten or replace parts as needed.
-If you have any questions about assembly, installation, or suitability of this product, contact an
authorized dealer or ShoreMaster directly.
10ft Wide 120 Volt System
1042245 - 25x120
1042246 - 27x120
1042247 - 29x120
1042248 - 31x120
1042249 - 33x120
11ft Wide 12 Volt System
1042239 - 25x132
1042240 - 27x132
1042241 - 29x132
1042242 - 31x132
1042243 - 33x132
1042244 - 35x132
Lift Anchor Kit (PN: 1045871)
recommended for areas with high wind.
(Sold Separately)
11ft Wide 120 Volt System
1042250 - 25x132
1042251 - 27x132
1042252 - 29x132
1042253 - 31x132
1042254 - 33x132
1042255 - 35x132
Canopy Braces included for
canopy lengths 27ft and longer.
Advertisement
Summary of Contents for Shoremaster TowerMax
- Page 1 -Inspect all canopy bolts, nuts, cords, and hooks every three months for loose or damaged parts. Tighten or replace parts as needed. -If you have any questions about assembly, installation, or suitability of this product, contact an authorized dealer or ShoreMaster directly.
-
Page 2: Installation
Installation A TowerMax canopy may fit more than one boat lift model. A TowerMax canopy may fit many non-ShoreMaster brands. Contact ShoreMaster or an authorized dealer for more information. -
Page 3: Assembly And Installation
Assembly and Installation Step 1. Fasten both full length canopy top weldments together using 3/8 x 2.75 bolts, one flat washer on the bolt head side, and one 3/8 brass flange nut. Every hole along the center rib should get this hardware, with the exception of the eight holes detailed below. - Page 4 Parts List ITEM DESCRIPTION Wdmt TowerMax Top Wdmt TowerMax Side Bottom - Longer Wdmt TowerMax Side Bottom - Shorter Wdmt TowerMax Side Door Frame Bolt Hex 3/8-16 x 2.75 SS 304 Bolt Hex 3/8-16 x 3.5 SS 304 Set Screw 1/2-13 x 1.5 SS 304 Cup Point...
- Page 5 Parts List ITEM DESCRIPTION Wdmt TowerMax Canopy End Wdmt TowerMax End Adjustment Pocket Top Prt Tube 1.625 x 1.125 x .125 x 10.0 Bolt Hex 3/8-16 x 4.25 SS 304 Bolt Hex 3/8-16 x 3.0 SS 304 Set Screw 1/2-13 x 1.5 SS 304 Cup Point...
- Page 6 ITEM DESCRIPTION Actuator Wdmt TowerMax Canopy Door Wdmt TowerMax Canopy End - Door Side Wdmt TowerMax Actuator Upper Mount Bolt Hex 3/8-16 x 4.25 SS 304 Bolt Hex 3/8-16 x 3.25 SS 304 Bolt Hex 3/8-16 x 3.0 SS 304 Set Screw 1/2-13 x 1.5 SS 304 Cup Point...
- Page 7 Step 12. Remove blue lift caps from boat lift uprights. Lower boat lift rack to full down position and make sure there is no weight on the lift. Step 13. Attach four canopy legs by sliding them into exposed opening in lift uprights. Insert one 3/8 x 1 carriage bolt in the lift leg from the inside and attach loosely with one 3/8 brass nut as shown.
- Page 8 Step 14. Place the assembled canopy frame into the exposed U-shaped channels (saddles) of the canopy legs. Slide the canopy frame into desired position. Step 15. Place canopy cover over canopy frame. Position cover so it fits equally over the entire frame. Note: Frame position should match estimated boat and motor position.
-
Page 9: Wiring Information
Wiring Information GREEN BLUE REMOTE MALE MALE FEMALE MALE FEMALE FEMALE CONNECTOR CONNECTOR CONNECTOR CONNECTOR CONNECTOR CONNECTOR 12V DC System: Connect ring terminals to positive and negative terminals on one battery. The red BATTERY wire should go to the (+) terminal. The black wire should go to the (-) terminal. Connect the other side (male connector) to the female connector of the remote box, this should also have a red and black wire. - Page 10 TowerMax Canopy Cover Attachment To avoid personal injury, do not let go of bungee cords when under tension. Stretching and removing bungee cords requires strength and proper balance. Always wear safety glasses and the proper protective clothing. A canopy cover is a hazard if exposed to high wind. Do not attach canopy to canopy frame if wind affects your ability to safely fasten.
- Page 11 Step 3. Step 4. Step 5. Starting on the door Place one bungee along Starting in the upper corner of side, put one bungee in each every vertical tube of the door the door, wrap a bungee around to the top corner of the door flap weldment.
-
Page 12: Removal And Storage
Operation and Use Canopy provides best protection when your boat is positioned up and into the frame. -Severe or strong winds can pick up a boat, lift, and canopy. This would cause damage to equipment and injury to anyone in its path. Position your boat up within canopy frame to provide protection and reduce chance of severe winds circulating inside canopy.
