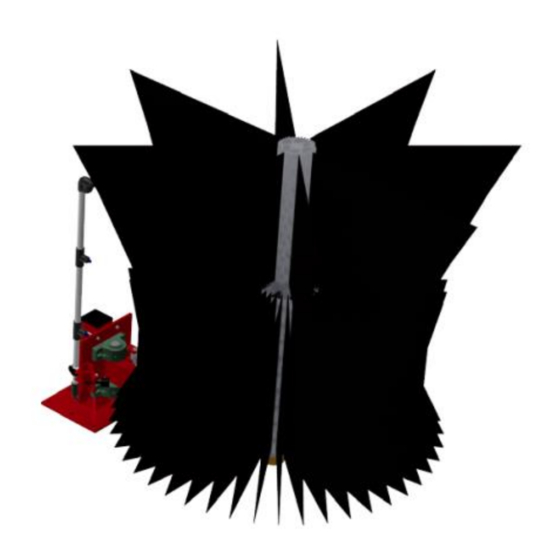

  • Page 1 Bottom Motor Side Washer SFB Series Owner’s Manual Sonny's Enterprises LLC 5605 Hiatus Road Tamarac, Florida 33321...

  • Page 2: Table Of Contents

    Owner’s Manual Bottom Motor Side Washer SFB Series *Table of Contents* WARNING *SAFETY REQUIREMENTS* WARNING ..............3 *INTRODUCTION* ........................5 Product Specifications ......................6 *INSTALLATION* ........................8 Utilities Requirements ......................8 Equipment Installation ......................13 Side Washers Installation ....................13 Adjustments and Testing .....................

  • Page 3: Warning *Safety Requirements* Warning

    Owner’s Manual Bottom Motor Side Washer SFB Series WARNING *SAFETY REQUIREMENTS* WARNING 1. All employees must be thoroughly trained in safe operation and standard maintenance practices. All employees must review this entire manual monthly. 2. Do not enter the wash tunnel when the equipment is operating. Death or dismemberment may occur.
  • Page 4 Owner’s Manual Bottom Motor Side Washer SFB Series 13. Store all cleaning and washing solutions and oils in a well-ventilated area. Clean up fluid spills immediately to prevent hazardous safety conditions. Be certain to follow all safety procedures on SDS Sheets for each chemical product used.

  • Page 5: Introduction

    Owner’s Manual Bottom Motor Side Washer SFB Series *INTRODUCTION* This Manual contains information that is vital to the successful installation, operation and maintenance of your SONNY’S vehicle washing equipment. Please read, and understand, the full contents of this manual before installation and operation of the equipment.

  • Page 6: Product Specifications

    Owner’s Manual Bottom Motor Side Washer SFB Series Product Specifications ➢ Constructed from aluminum or stainless steel ➢ Available in six cleaning heights: 18, 21, 28, 35, 50 or 63 inches ➢ Positive motor to brush shaft coupling ➢ Simple mechanical brush pressure adjustment ➢...
  • Page 7 Owner’s Manual Bottom Motor Side Washer SFB Series © 2021 SONNY’S The CarWash Factory ® . All Rights Reserved. SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 7 of 21 published without prior written consent. Content, prices, and availability subject to change without notice.

  • Page 8: Installation

    Owner’s Manual Bottom Motor Side Washer SFB Series *INSTALLATION* Utilities Requirements Utilities interconnection and the materials required for interconnection to Sonny’s equipment are the responsibility of the customer! Perform all trades work to all applicable local and national codes! Water •...
  • Page 9 Owner’s Manual Bottom Motor Side Washer SFB Series Dimensions © 2021 SONNY’S The CarWash Factory ® . All Rights Reserved. SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 9 of 21 published without prior written consent. Content, prices, and availability subject to change without notice.
  • Page 10 Owner’s Manual Bottom Motor Side Washer SFB Series Figure #1 © 2021 SONNY’S The CarWash Factory ® . All Rights Reserved. SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 10 of 21 published without prior written consent.
  • Page 11 Owner’s Manual Bottom Motor Side Washer SFB Series Figure #2 © 2021 SONNY’S The CarWash Factory ® . All Rights Reserved. SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 11 of 21 published without prior written consent.
  • Page 12 Owner’s Manual Bottom Motor Side Washer SFB Series Figure #3 Figure #4 © 2021 SONNY’S The CarWash Factory ® . All Rights Reserved. SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 12 of 21 published without prior written consent.

  • Page 13: Equipment Installation

    Owner’s Manual Bottom Motor Side Washer SFB Series Equipment Installation Side Washers Installation Tools Consumables Safety Glasses PTFE Paste ½” Drive Ratchet Set PTFE Tape Standard Combo Wrenches Impact Wrench Set 4’ Level Sledgehammer 1” Hammer Drill Pry Bar Tape Measure...
  • Page 14 4 inches to 6 inches of cloth penetration on the vehicle surface. Note: The SONNY'S supplied BLACK high pressure hose on the washer unit is for the hydraulic PRESSURE connection and the ORANGE OR RED high pressure hose on the washer unit is for the hydraulic RETURN connection.

  • Page 15: Adjustments And Testing

    Owner’s Manual Bottom Motor Side Washer SFB Series Adjustments and Testing Adjust the Cleaning Pressure of the Washer With each brush hanger in its extended position measure the extend tension of the hanger with a fish weigh scale hooked to the underside of the "C" channel brush core and pulling the brush away from its extended position with the scale.

  • Page 16: General Operation

    Owner’s Manual Bottom Motor Side Washer SFB Series *GENERAL OPERATION* Side Washer Operation Brush rotation starts and stops with a signal from the Customer supplied Controller system to the Customer's hydraulic power pack which drives the hydraulic motors on the brushes, or if applicable, from the controller system to the electric motors.

  • Page 17: Preventive Maintenance

    Owner’s Manual Bottom Motor Side Washer SFB Series *PREVENTIVE MAINTENANCE* DAILY 1. Check all hydraulic, air and chemical lines and fittings for leaks. Repair, or replace, as needed. 2. Check electrical fittings and connections; make sure they are seal tight.
  • Page 18 Owner’s Manual Bottom Motor Side Washer SFB Series *PARTS* © 2021 SONNY’S The CarWash Factory ® . All Rights Reserved. SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 18 of 21 published without prior written consent. Content, prices, and availability subject to change without notice.
  • Page 19 Owner’s Manual Bottom Motor Side Washer SFB Series © 2021 SONNY’S The CarWash Factory ® . All Rights Reserved. SonnysDirect.com This document is confidential and proprietary to SONNY’S and cannot be used, disclosed or Page 19 of 21 published without prior written consent. Content, prices, and availability subject to change without notice.

  • Page 20: Warranty

    Owner’s Manual Bottom Motor Side Washer SFB Series *WARRANTY* SONNY’S ENTERPRISES, INC. FACTORY LIMITED LIFETIME WARRANTY Equipment manufactured by SONNY’S ENTERPRISES, INC. is warranted to be free from defect in material and workmanship. Welded metal framework and other non-moving, non-wearable fabricated metal components manufactured by SONNY’S are warranted for the life of the equipment...

  • Page 21: Customer Service

    Owner’s Manual Bottom Motor Side Washer SFB Series *CUSTOMER SERVICE* Please contact SONNY’S Equipment Department for installation and/or operational questions regarding this piece of equipment. Please refer to the Parts Catalog and contact SONNY’S Customer Service Order Entry Department for any replacement parts for this piece of equipment.
