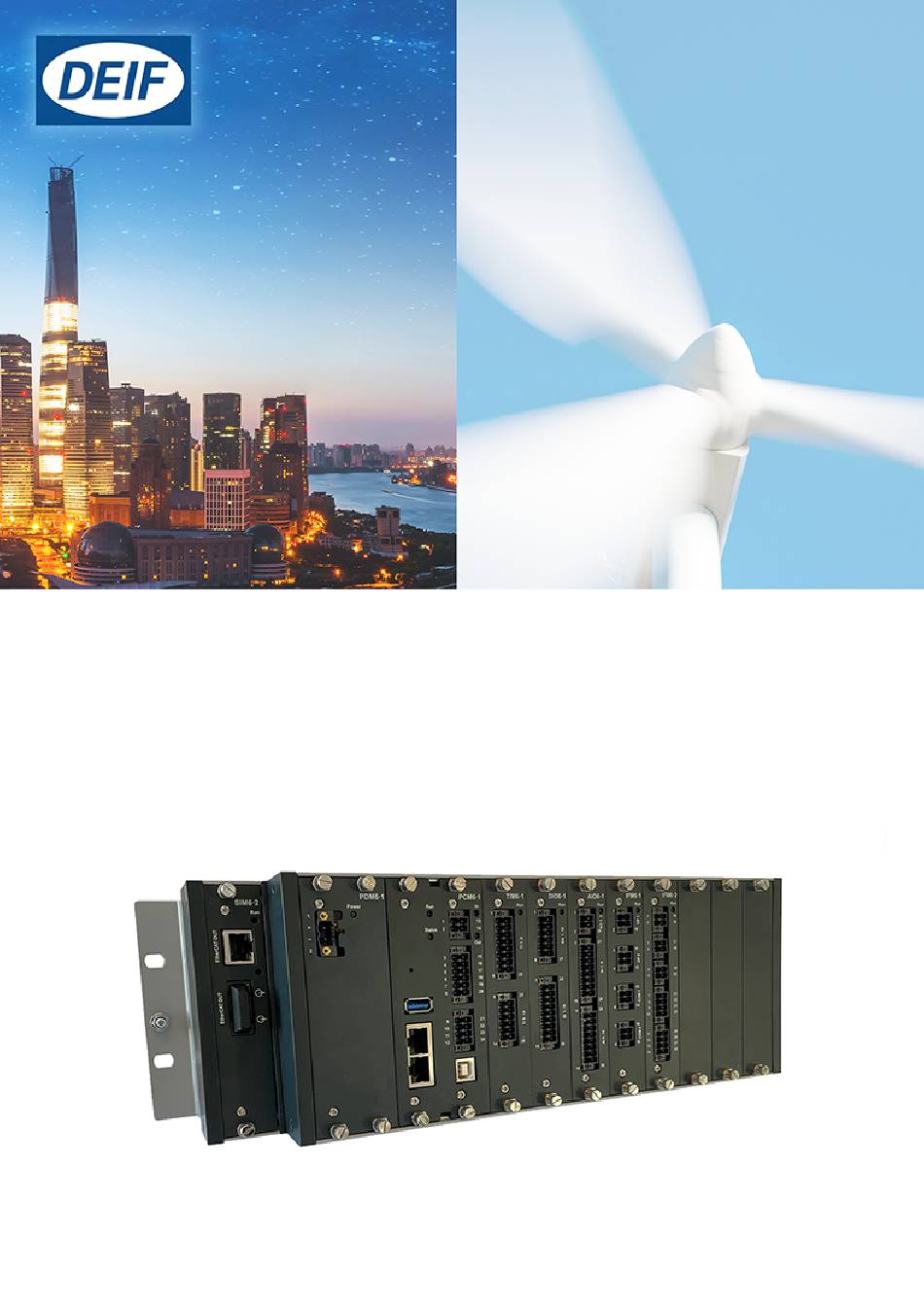

USER'S MANUAL
AMC 600
Getting started guide
4189341335A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMC 600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Deif AMC 600

Summary of Contents for Deif AMC 600

  • Page 1 USER'S MANUAL AMC 600 Getting started guide 4189341335A...

  • Page 2: Table Of Contents

    1.2 Symbols for hazard statements ......................................1.3 Technical support ............................................. 1.4 Legal information ............................................2. Configure AMC 600 2.1 Software ................................................2.1.1 Download AMC 600 software ....................................... 2.1.2 System requirements ........................................2.1.3 PC tools ..............................................2.2 Connection ..............................................2.2.1 Power connection ..........................................
  • Page 3 6. Update firmware 6.1 View logs ..............................................6.2 Create factory reset ..........................................User's manual 4189341335A EN Page 3 of 33...

  • Page 4: About The Getting Started Guide

    If the guidelines are not followed, these situations could result in minor or moderate injury. NOTICE This shows an important notice Make sure to read this information. Technical support Technical documentation Download the technical documentation from the DEIF website: www.deif.com/documentation/ User's manual 4189341335A EN Page 4 of 33...

  • Page 5: Legal Information

    Service and support DEIF is committed to being available to our customers and partners 24 hours a day, seven days a week, to guarantee the highest levels of service and support. www.deif.com/support Training DEIF arranges training courses at DEIF offices worldwide.

  • Page 6: Configure Amc 600

    • Microsoft Windows 10 or later, 64 bit version (Recommended). As the AMC 600 supports SSH (Secure Shell) and SCP (Secure Copy) as basic communication protocols, it can be accessed from any system supporting these protocols (if enabled). Not all browsers are suitable for this software. We recommend to use Google Chrome or Mozilla Firefox.

  • Page 7: Connection

    AMC 600 file system, and accessed via the SSH (Linux command shell) or SFTP (file transfer). For service purposes by DEIF or direct access to the PCM6.2 in special cases, the Service port is used for SSH (Linux command shell) access via USB serial communication.

  • Page 8: Default Hostname

    A PC setup to IPv4 with a Link-local address and mDNS support can access the system web pages on: https://[hostname] 2.4.3 Default User and Password The AMC 600 is supplied by default with one user account (root): Default username root Default password deif7800 Additional user roles and passwords (Operator, Service, Administrator) can be added in the Users menu.

  • Page 9: Test Connection With Ping

    IP address. If the network settings are OK, then continue with the Programming. Continue below to see how to make a connection to the AMC 600 with the SSH client (PuTTY) or the SFTP client (WinSCP). User's manual 4189341335A EN...

  • Page 10: The System Web Page

    The system web page 2.5.1 Access to the System web page To access the AMC 600 system page, open a browser and go to: https://192.168.20.13 More information Test the connection if you cannot access the web page. 2.5.2 About the System web page...

  • Page 11: Menus

    Menus 2.6.1 View modules Select Modules to see an overview of the available modules: User's manual 4189341335A EN Page 11 of 33...

  • Page 12: View System Information

    2.6.2 View System information Select Info to see a summary of the System information: User's manual 4189341335A EN Page 12 of 33...

  • Page 13: View Network Configuration

    2.6.3 View Network configuration Select Tools > Network configuration to see the controller IP and Gateway address: More information Change advanced network configuration for how to configure these settings. User's manual 4189341335A EN Page 13 of 33...

  • Page 14: Iec61131-3 (Codesys) Programming

    3. Program AMC 600 IEC61131-3 (CODESYS) programming More information See AMC 600 CODESYS Development package 4189340814 for a guide on how to install the AMC 600 CODESYS development package and the first steps to get started with it. User's manual 4189341335A EN...

  • Page 15: Additional Configuration

    4. Additional configuration Change advanced network configuration Under Tools > Network configuration the network interface configurations for each port (eg. eth0 or eth1) or bridged connections between ports (eg. br0) can be configured. 4.1.1 Ports When configuring a bridge up, you can specify the Port that should be included in the bridge. 4.1.2 Real-time mode When checking the box Real-time mode the priority of the Ethernet is raised to priority 50, but still below the real-time priorities in...

  • Page 16: Extended User Management

    Extended user management Under Tools > Users the additional users : Admin, Service and Operator user roles can be enabled with password. Start by providing password for Admin. Once Admin password has been set, the root user is disabled. You can then extend with Service and finally Operator user roles.

  • Page 17: Enable Ssh (Secure Shell) Access

    Enable SSH (Secure Shell) access By default SSH access is enabled on the AMC 600. 4.3.1 Create connection with WinSCP Launch WinSCP: When using file transfer, make sure transfer to temporary filenames is disabled. To disable file transfer to temporary filenames, go to Tools, select Preferences and Transfer > Endurance:...
  • Page 18 Then disable transfer to temporary file: Creating a session to AMC 600 go to Session and fill in Hostname, User name and password. Save (Save…) the session for later or press Login: User's manual 4189341335A EN Page 18 of 33...
  • Page 19 This will open a session: User's manual 4189341335A EN Page 19 of 33...

  • Page 20: Create Connection With Putty

    4.3.2 Create connection with PuTTY Launch PuTTY: In the PuTTY Configuration window enter IP address, ensure Connection type is SSH, and port is 22, then open: This opens the Linux command shell, prompting for user name –first type "root" [ENTER] – followed by password – type "deif7800" [ENTER] –...

  • Page 21: Change Network Configuration With Ssh

    4.3.3 Change network configuration with SSH It is highly recommended to use the AMC 600 webpage to configure the network settings. However the SSH command difconfig is supported by all OS versions 1.0.0.0 and above for PCM6·1. Reset IP to factory default ~ # difconfig reset This script will delete interface file and switch to factory default.

  • Page 22: Change Password

    NOTICE Cyber security The user has the full responsibility for the security level of the AMC 600 system. It is strongly recommended to change the password before putting the systems into a production environment. To change password create a connection to the PCM: Use "passwd"...

  • Page 23: Setting To Local Date And Time

    Set to local date and time When supplied the AMC 600 has UTC time as default time. The time in the unit can both be set with the command shell, or with NTP (Network time protocol). See the Operative system software document for details on setting up NTP.

  • Page 24: Access With The Service Port

    To configure the AMC 600 with the Service port, the development PC is connected with a Standard USB-B cable. NOTICE USB driver The USB driver is automatically installed from Windows Update, when connecting the USB cable to the AMC 600. If no connection to Windows Update is available the driver can be manually installed. Manual installation The USB serial driver for Microsoft Windows 10 is available for download at the DEIF FTP Server: AWC_500/PC tools/USB_Service_Port_Driver/CP210xVCPInstaller_x64.exe...
  • Page 25 Connect to the AMC 600 with the USB-B cable. Open PuTTY and configure it to serial communication: 1. Select the serial radio button. 2. Change the com port to match the USB-cable. 3. Set communication speed. 4. Select open. In the newly opened terminal window enter root and press enter, and then enter root password and press enter again (default root password is: deif7800).

  • Page 26: View Existing Ip Address

    Alternatively: ~ # factory-reset -n The AMC 600 then has a new IP-configuration. Reboot the AMC 600 for the changes to take effect. To reboot the AMC 600, type: ~ # reboot Wait 10 seconds and the AMC 600 is ready for connections at the default IP-address 192.168.20.13 and can be accessed via the Ethernet port.
  • Page 27 The firmware can be updated via webpage: https://192.168.20.13 Click Tools > Firmware update on the webpage. Next, click "Choose File" button to select the dupdate file on the local PC. (E.g. DEIF-AMC-600-PCM61-bootloader-and- OS_v1.0.1.0.dupdate) User's manual 4189341335A EN Page 27 of 33...
  • Page 28 It might ask for the username and password to continue. Next, click Upload button, it will start uploading the firmware. When the loading process is complete, a line of green text will be printed out on the webpage to indicate the upload is successful. The firmware update only takes effect when you reboot the system.
  • Page 29 Wait for the reboot process to be finished. Then reload the webpage, the updated version number can be found on the lower left corner of the page. Want more details about the updating process, check out the system logs on the webpage (Refer to "View logs" section).
  • Page 30 Here, you can select different kinds of logs to display on the page. Click "inverted triangle" icon to get more logs. You can also select all logs or remove all. User's manual 4189341335A EN Page 30 of 33...
  • Page 31 To get additional debug information, the feedback log is available to download. Select Download feedback file to get the compressed feedback log file. Unzip the file to access the individual files. User's manual 4189341335A EN Page 31 of 33...
  • Page 32 Create factory reset NOTICE Factory reset of settings Factory reset restores the AMC 600 to its factory settings. Please make sure to back up important information prior to performing the reset. A factory reset can be performed in three ways: 1.
  • Page 33 • 2. Use the reset pinhole located on the front of the PCM6·1 module (above the "USB host" connector). • Use a paper-clip to push the reset button until the "Status" LED stops blinking red. 3. Use the SSH command: ~ # factory-reset User's manual 4189341335A EN Page 33 of 33...
