Summary of Contents for bsw SPL-MHL-380BSW

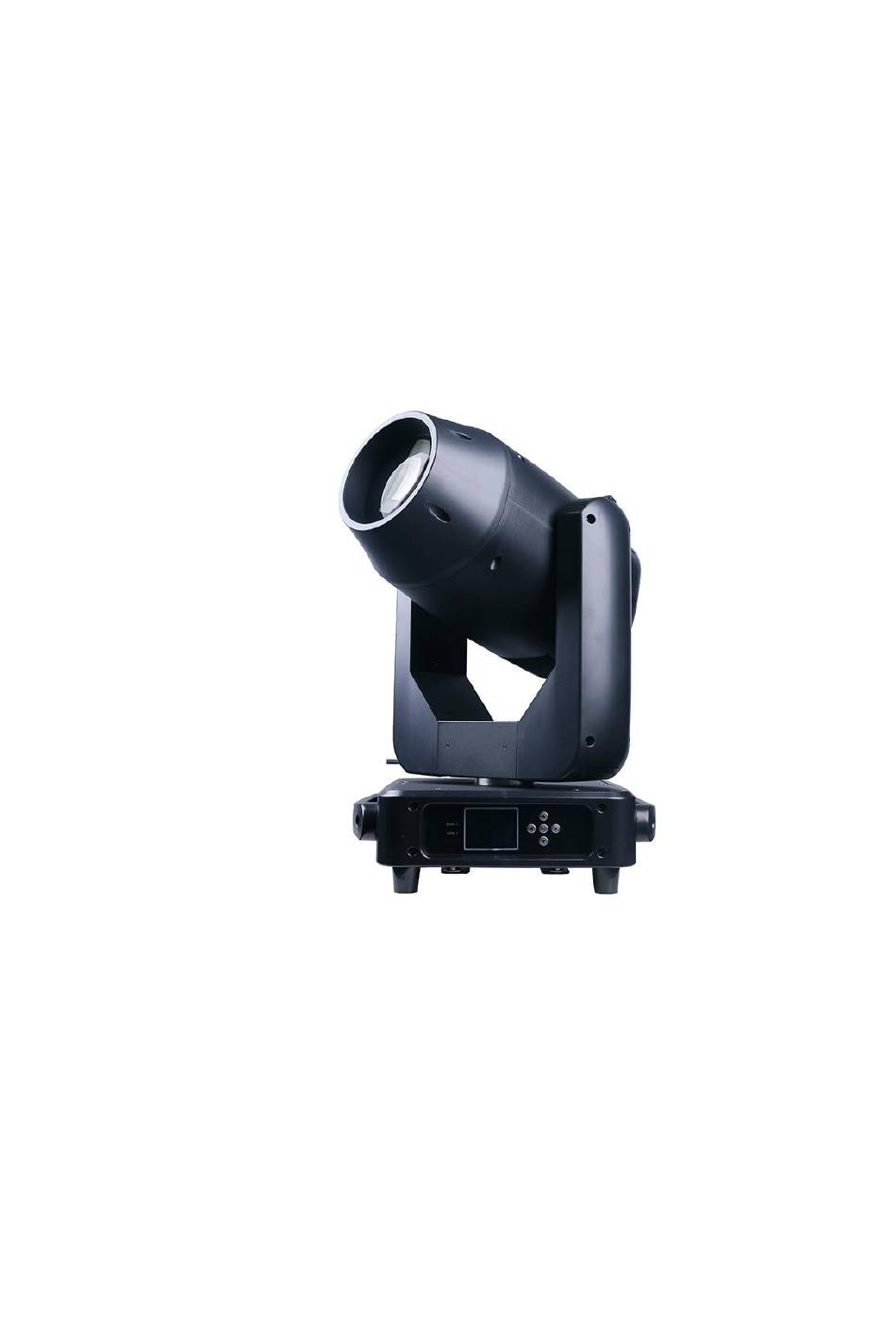

- Page 1 BSW MOVING HEAD USER MANUAL SPL-MHL-380BSW Please read and keep this manual carefully for further use! - 1 -...
-
Page 2: Installation
Thank you for buying our professional Beam moving head. This user manual includes important information for installation and operation, so please read this user manual carefully before installation and operation, and keep this user manual well for further use. In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly. -
Page 3: Product Specification
► This fixture is not suitable for direct installation on combustible material surface, please keep the fixture surface at least 0.5m from any combustible material. ► If you use the quick lock cam in hanging up the fixture, please make sure the quick lock fasteners turned in the quick lock holes correctly. -
Page 4: Display And Operation
6.Operation mode: master-slave/DMX/Auto 7. Focus/Zoom: Yes 8. Fixed gobo: 11 gobos+open+ Filter Flame plate: 2+1+1 gobos 9. Strobe: 25Hz 10. Color: 12 colors+open 11. Prism 1: 8+16-facet 12. Prism 2:16-facet 13. Pan: 540° 14. Tilt: 270° 15.Frost / Six-color effect: Yes 16. - Page 5 DMX monitor Fixture test Auto Manual 1.Color 000-255 2.Shutter/strobe 000-255 …… 19.frost 000-255 Reset XY Reset MT Reset System Info Temperature Display panel temperature Motor board temperature Fan speed system version System time Total usage time time of this use Total lamp-on time Time of this lamp-on Sensor...
- Page 6 XY encoder Linear change of color wheel reset Factory setting Motor Calibration (The password is "up down Color down". ) Pattern effect pattern Glass gobo focus zoom Dimming zero Dimming stroke Prism 1 Zero Prism 1 stroke Prism 2 Zero Prism 2 stroke Forst stroke Stroke calibration...
- Page 7 055 - 059 Color 5+color 6 060 - 064 Color 6 065 - 069 Color 6+color 7 070 - 074 Color 7 075 - 079 Color 7+color 8 080 - 084 Color 8 085 - 089 Color 8+color 9 090 - 094 Color 9 095 - 099 Color 9+color 10...
- Page 8 gobo 2 shake slow to fast 115 - 134 135 - 154 gobo 3 shake slow to fast 155 - 255 gobo 4 (water pattern) slow to fast gobo 1 000 - 009 010 - 019 gobo 2 gobo 3 020 -029 030 -039 gobo 4...
-
Page 9: Dmx 512 Connection
Speed from slow to fast Dimmer CH23 speed 000-255 CH24 gobo speed 000-255 Speed from slow to fast Gobo wheel Flame plate Color wheel Rotation wheel DMX-512 connection Connect the provided XLR cable to the male 3-pin XLR output of your controller and the other side - 9 - to the female 3-pin XLR input of the light.then connect the DMX signal to the first fixture to the 2 fixture, after all fixtures are connected,... - Page 10 The signal cable should be two - core with screened cable with XLR input and output connectors. Please refer to the diagram below DMX terminator connection If there are many lines or lights, it is recommended to use a DMX terminator to prevent DMX signal corruption, the DMX terminator is an simple XLR plug with a 120 Ω...
- Page 11 Cleaning and maintenance Cleaning should be performed every 15-day period, by using a sponge which is dipped with alcohol, rather than wet cloth or other chemical liquid, to clean the mirror. CAUTION Cut off power before cleaning and maintenance! Attention Do not see directly light source when open the light, and make sure power off before do any installation or maintenance.
-
Page 12: Warranty Card
or not Note: the maintenance should be done by the verified technician. Warranty Card This product is made of high-brightness transistor. We will provide 1 year warranty under the condition that user has operated the light normally and lifetime service. We won't provide warranty if the damage is caused by artificial or force majeure event.
