Operators Manual
P2599BA-EN
2022-10
TORQUE ANALYZER
1
P2599BA-EN | 2022-10
Apex Tool Group

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cleco Torque Analyzer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Apex Tool Group Cleco Torque Analyzer

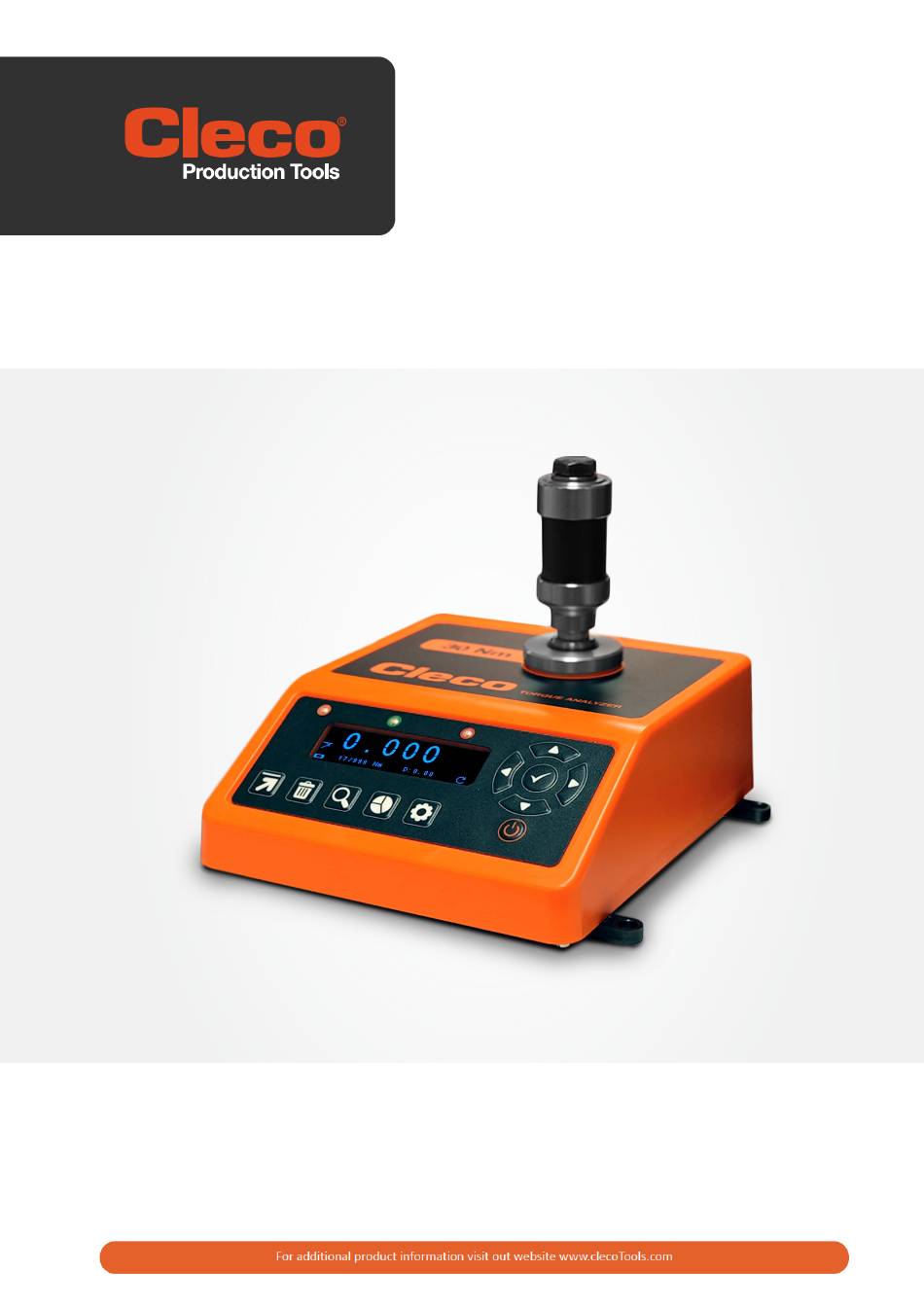

  • Page 1 Operators Manual P2599BA-EN 2022-10 TORQUE ANALYZER P2599BA-EN | 2022-10 Apex Tool Group...
  • Page 2: Table Of Contents

    About this Manual Packing list Spares & Accessories Features & Dimensions Specifications Hardware Technical Features Icons Start Up Fixed Icons Input Powering your Torque Analyzer Measurement Screen Deletion Settings AutoPrint Settings Readings List Statistics P2599BA-EN | 2022-10 Apex Tool Group...
  • Page 3: Compliance

    INTENDED USE This can be used on all the Cleco tightening tools, except impact wrenches. Changes or modifications to the not expressly approved by Cleco Torque Analyzer Cleco Production Tools could void the user’s authority to operate the equipment. COMPLIANCE This device complies with part 15 of the FCC rules.
  • Page 4: About This Manual

    No part of this document may be reproduced in any way or in any form, in whole or in part, or in a natural or machine-readable language, or transmitted on electronic, mechanical, optical, or other media, without the express permission of the Apex Tool Group.
  • Page 5: Packing List

    PACKING LIST The following Items are supplied with the Cleco Torque Analyzer dependent on model specification purchased. 1 x Cleco Torque Analyzer (with standard rundown adapter) 1 x Calibration Certificate (12 months) 1 x Quick Start Guide 1 x Power Supply 3 x Regional Power Cords All contents are supplied packaged in a box.

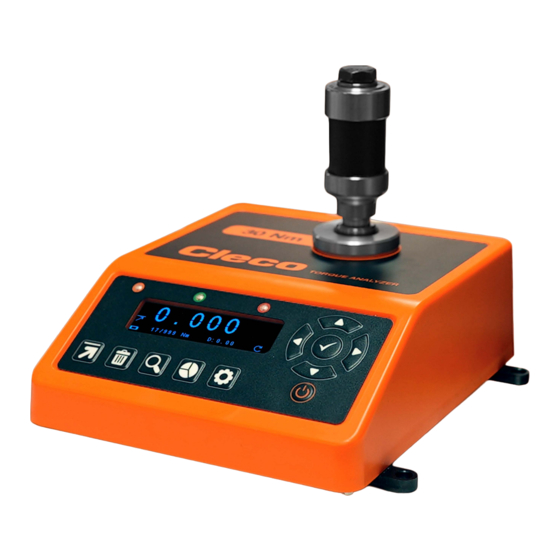

  • Page 6: Features & Dimensions

    FEATURES AND DIMENSIONS P2599BA-EN | 2022-10 Apex Tool Group Apex Tool Group...
  • Page 7: Specifications

    Easy selectable output to AutoPrint of all results. Interface to simple PC package that outputs the print data to an Excel spreadsheet. Cycle Status Indication: LED HI/OK/LO torque status. User definable limits. Operating Languages: English, Czech, French, German, Italian, Hungarian, Spanish, Swedish, Polish, Turkish. P2599BA-EN | 2022-10 Apex Tool Group Apex Tool Group...
  • Page 8: Hardware

    Humidity 10-75% non-condensing. Ingress protection rating: IP45. Torque Measurement Display up to 5 significant figures. Sample every 20 micro seconds. Warranty: 12 months parts and labour against faulty workmanship or materials. P2599BA-EN | 2022-10 Apex Tool Group Apex Tool Group...
  • Page 9: Icons

    Click Track Pulse START UP Turning on your Torque Analyzer Turn on by pressing the On/Off button situated below the arrowed keypad. The first screen you will see is as below. P2599BA-EN | 2022-10 Apex Tool Group Apex Tool Group...
  • Page 10 Torque Analyer latest software version of the torque module and KB represents the latest version of the keyboard. The unit will then enter measure mode, showing the last measurement mode used is automatically displayed. P2599BA-EN | 2022-10 Apex Tool Group...
  • Page 11: Fixed Icons

    Statistics – This will display the following stats from the current readings: count, range, mean, min, max, and standard deviation (sigma). Settings – Allows you to toggle through various screen settings. See separate screen section of this manual below. P2599BA-EN | 2022-10 Apex Tool Group...
  • Page 12: Input

    2) Connect the 5V DC port with a DC power supply. 3) Insert 2 x Type ‘C ‘ Cell (LR14) NiMH or Alkaline batteries. Please note: Rechargeable batteries cannot be charged on board the Cleco Torque Analyzer. P2599BA-EN | 2022-10 Apex Tool Group...
  • Page 13: Measurement Screen

    Screen 2 on the second press Track mode. Screen 3 on the third press Click mode with peak value displayed. Screen 4 on the fourth press pulse mode with peak value and cycle duration displayed P2599BA-EN | 2022-10 Apex Tool Group...
  • Page 14: Deletion

    The other time you are forced to delete all readings is when you change the measurement mode mid-way through readings you have already done. In addition, readings are also deleted when the torque limit specifications are altered. P2599BA-EN | 2022-10 Apex Tool Group...
  • Page 15: Settings

    Frequency Response (Hz): 75, 151, 256, 307, 384, 542, 768, 921, 1024, 1536, 2304, 3072, 4608 Cycle End Time (s): 0.20, 0.5, 1.0, 2.0, 5.0, 10, 20 Param: 0 = Off, 1 = On Units: Nm, lbft, lbin, Ncm, kgcm, kgm, + others (display valid units for span) P2599BA-EN | 2022-10 Apex Tool Group...
  • Page 16: Autoprint Settings

    HI, LO, OK Direction: Right (Clockwise), Left (Anti-clockwise) Duration: Reading duration in seconds. Spec Limits: USL, Target and LSL. Secondary: Show if there are any second parameters. Serial No.: Show the serial number of the tool. P2599BA-EN | 2022-10 Apex Tool Group...
  • Page 17: Readings List

    You can navigate through the results by using the up and down arrow keys. A second press will allow you to export your readings to a PC. Press the green button to accept. All readings are exported in AutoPrint format. P2599BA-EN | 2022-10 Apex Tool Group...
  • Page 18: Statistics

    Sample count and o = Sigma (Standard deviation). Pressing the up and down arrow keys takes you to the second screen which displays the current minimum and maximum readings as well as the range between them. P2599BA-EN | 2022-10 Apex Tool Group...
