PROGRAMMING MANUAL OF THE AC151-06 TRANSMITTER
1. TECHNICAL SPECIFICATIONS
Power supply:
Frequency:
Operating temperature:
Average range:
Radiated power:
AC151-06 - 6-channels:
Possible of control of 6 motors or 6 groups of motors.
Works with all AM series radio control motors as well as AC control units and switches offered by ALUPROF S.A.
Company reserves the tolerance of catalog data due the different conditions usage.

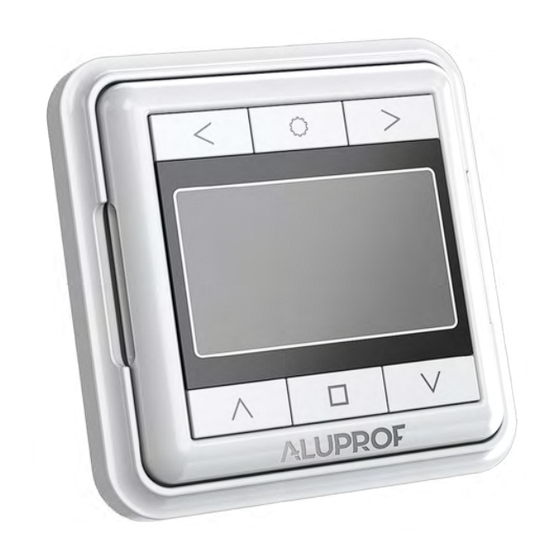

2. DIAGRAM OF THE FRONT PANEL
LEFT
SET
UP
STOP
In accordance with the provisions of the Directive of the European Parliament and of the Council 2012/19 / EU of 4 July 2012
on waste electrical and electronic equipment (WEEE), it is prohibited to place of used equipment together with other wastes,
marked with crossed out wheeled bin symbol. The users are obliged to transfer their used equipment to a designated collection
point for proper processing. The marking means, at the same time, that the equipment was put on the market after 13 August
2005. These legal obligations have been introduced to reduce the amount of waste generated from waste electrical and
electronic equipment and to ensure an appropriate level of collection, recovery and recycling. The equipment does not contain
any dangerous components, which would have any particularly negative impact on the environment and human health.
We reserve the right to any technical change.
Valid on 2022.03.16
PROGRAMMING MANUAL OF THE AC151-06 TRANSMITTER
3 V (1xCR2430)
433.92 MHz
~ -20°C - ~ +55°C
80 meters (in open space), 20 meters (inside buildings)
10 miliwat (mW)
RIGHT
DOWN
P2
ON/OFF
OPERATING
ACTIVE
MODE
CHANNEL
CLOCK
WEEK DAYS
SHUTTER MOVE
BATTERY
STATUS
ROLLER
1
