Summary of Contents for Kobold OM 43 Series

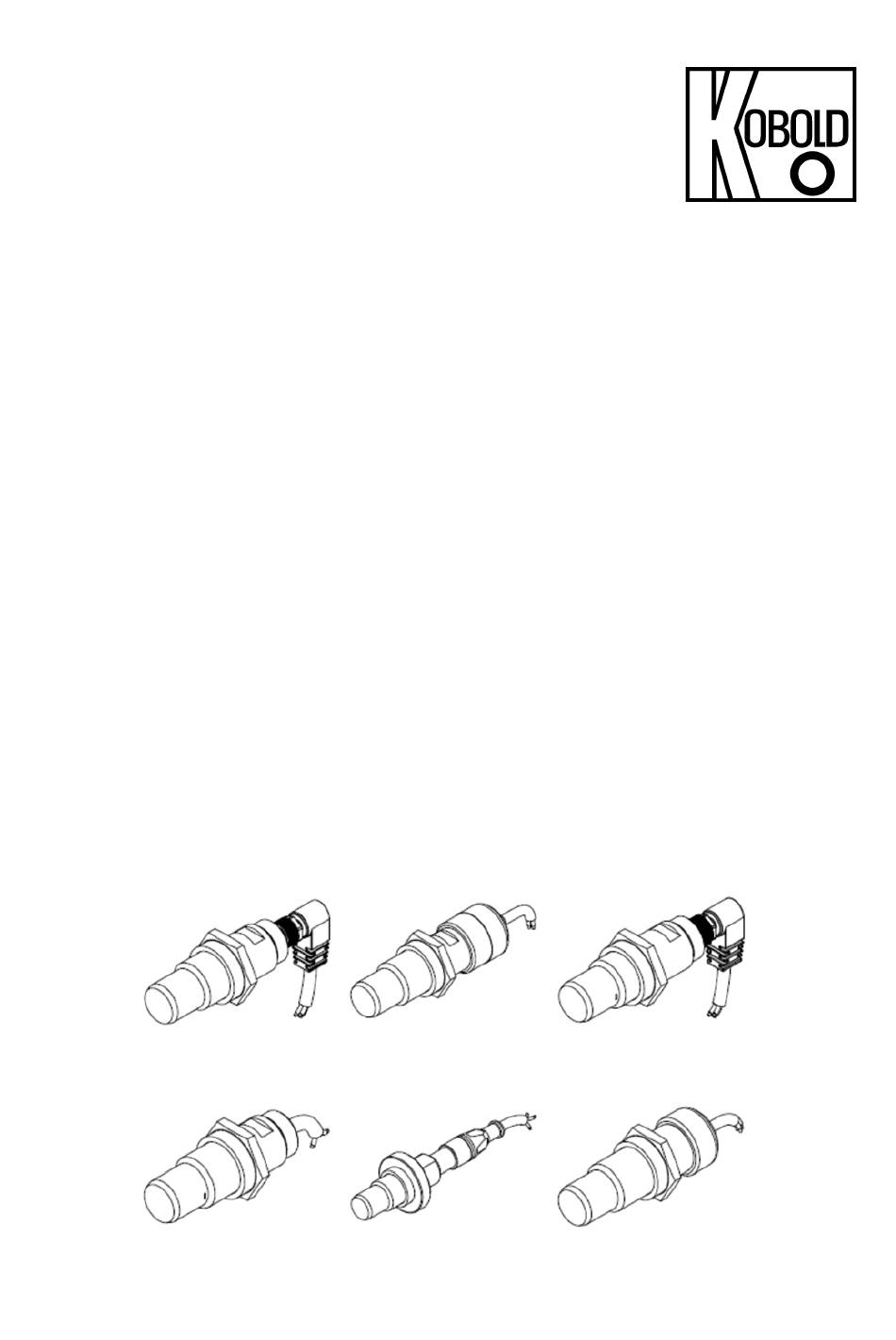

- Page 1 Operating Instructions Pulse Generator for series OM… Model: OM…/43 OM…/44 OM…/45...
-
Page 2: Table Of Contents
Dimensions ....................15 Disposal ...................... 16 EU Declaration of Conformance ..............17 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 OMx Sensor K01/1122... -
Page 3: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 4: Instrument Inspection
Therefore, any resulting damage is not the responsibility of the manufacturer. The user assumes all risk for such usage. Only use the Kobold pulse generator within the operating limits specified in the "Technical Data" chapter. Deviating operating data can lead to damage. If in doubt, consult the manufacturer. -
Page 5: Safety Information
OMx Sensor 6. Safety Information The following safety instructions must be observed: Implement all the supply lines without faults. The pick up system (puck up, transducer and lines) may not be located in the area of strong, high-frequency electromagnetic fields, such as those emitted e.g. -
Page 6: Electrical Connection
OMx Sensor 7. Electrical Connection OM…/43: OM…/44: OM /45: page 6 OMx Sensor K01/1122... -
Page 7: Assembly And Disassembly
OMx Sensor 8. Assembly and Disassembly The pick up system (puck up, transducer and lines) may not be located in the area of strong, high-frequency electromagnetic fields. This can result in erroneous measurements of the pick up system. The connecting lines of the pick up connections are to be shielded and laid separately from the supply lines. - Page 8 OMx Sensor Installing and connecting OM…/43 Plug assignment Terminal diagram Installation position 1. Clean the pick up hole. At flowmeters of the OMG and OMH series check the inserted O-ring. 2. Screw the pressure housing 626.1 into the pick up hole up to a distance of 0.5 mm (43D) respectively 1.0 mm (46D) from the outer diameter of the pole wheel.
- Page 9 OMx Sensor Removing OM…/44 1. Separate the pick up cable from the supply voltage. 2. Loosen threaded cover 624.3. Pull the pick up insert 624.1 and spring 624.2 out of the pressure housing 626.1. 3. Loosen the hexagon nut 626.3 and spacer 626.2. 4.
- Page 10 OMx Sensor Terminal diagram Installation position Replacing OM…/44 1. Clean the pick up hole. At flowmeters of the OMG and OMH series check the inserted O-ring. 2. Screw the pressure housing 626.1 into the pick up hole up to a distance of 0.25 mm from the outer diameter of the pole wheel.
- Page 11 OMx Sensor Replacing OM…/45 Removing OM…/45 1. Loosen the plug 624.6 from the amplifier 627.1. 2. Loosen the hexagon nut 626.3, spacer 626.2 and threaded cover 624.5. 3. Pull out the pick up insert 624.1 with spring 624.2. 4. Turn out the pressure housing 626.1. Installing and connecting OM…/45 Terminal diagram OMx Sensor K01/1122...
- Page 12 OMx Sensor Installation position OM…/45 1. Clean the pick up hole. At flowmeters of the OMG and OMH series check the inserted O-ring. 2. Screw the pressure housing 626.1 into the pick up hole up to a distance of 0.25 mm from the outer diameter of the pole wheel. (One rotation corresponds to 1 mm.) 3.
-
Page 13: Possible Faults
OMx Sensor 9. Possible faults Faults can have different causes. The following tables list the symptoms of a fault, the possible causes and measures for troubleshooting. Troubleshooting Cause Remedy Pick up/pick up insert defective ► Screw out the pick up/pick up insert and check: A functioning pick up/pick up insert sends a pulse when approaching a ferromagnetic part. -
Page 14: Technical Information
OMx Sensor 10. Technical Information Material dry Electrical Model System Voltage Protection face sleeve connection right-angle plug inductive -20…+100 °C arcap/ 10…30 V 250 bar with LED and IP 65 (-25…+90 °C) ceramic 3 m cable Hall-effect 10…30 V -40…+150 °C 420 bar arcap 3 m PTFE cable... -
Page 15: Dimensions
OMx Sensor 11. Dimensions OM…/43 OM…/44 OM…/45 OMx Sensor K01/1122 page 15... -
Page 16: Disposal
OMx Sensor 12. Disposal Note! Avoid environmental damage caused by media-contaminated parts Dispose of the device and packaging in an environmentally friendly manner Comply with applicable national and international disposal regulations and environmental regulations. Batteries Batteries containing pollutants are marked with a sign consisting of a crossed-out garbage can and the chemical symbol (Cd, Hg, Li or Pb) of the heavy metal that is decisive for the classification as containing pollutants: 1. -
Page 17: Eu Declaration Of Conformance
OMx Sensor 13. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Sensor Model: OM.../43/44/45 to which this declaration relates is in conformity with the standards noted below: EN IEC 63000:2018 Technical documentation for the assessment of electrical... - Page 18 OMx Sensor Additional for pulse generator OM…/45: The product is in conformity with the standards noted below: EN 61000-6-2:2005/AC:2005 Electromagnetic compatibility (EMC) - Part 6- 2: Generic standards - Immunity for industrial environments EN 61000-6-4:2007/A1:2011 Electromagnetic compatibility (EMC) - Part 6- 4: Generic standards - Emission standard for industrial environments Also, the following EC guidelines are fulfilled: 2014/30/EU...
