Summary of Contents for Equalizer TILT SYSTEM

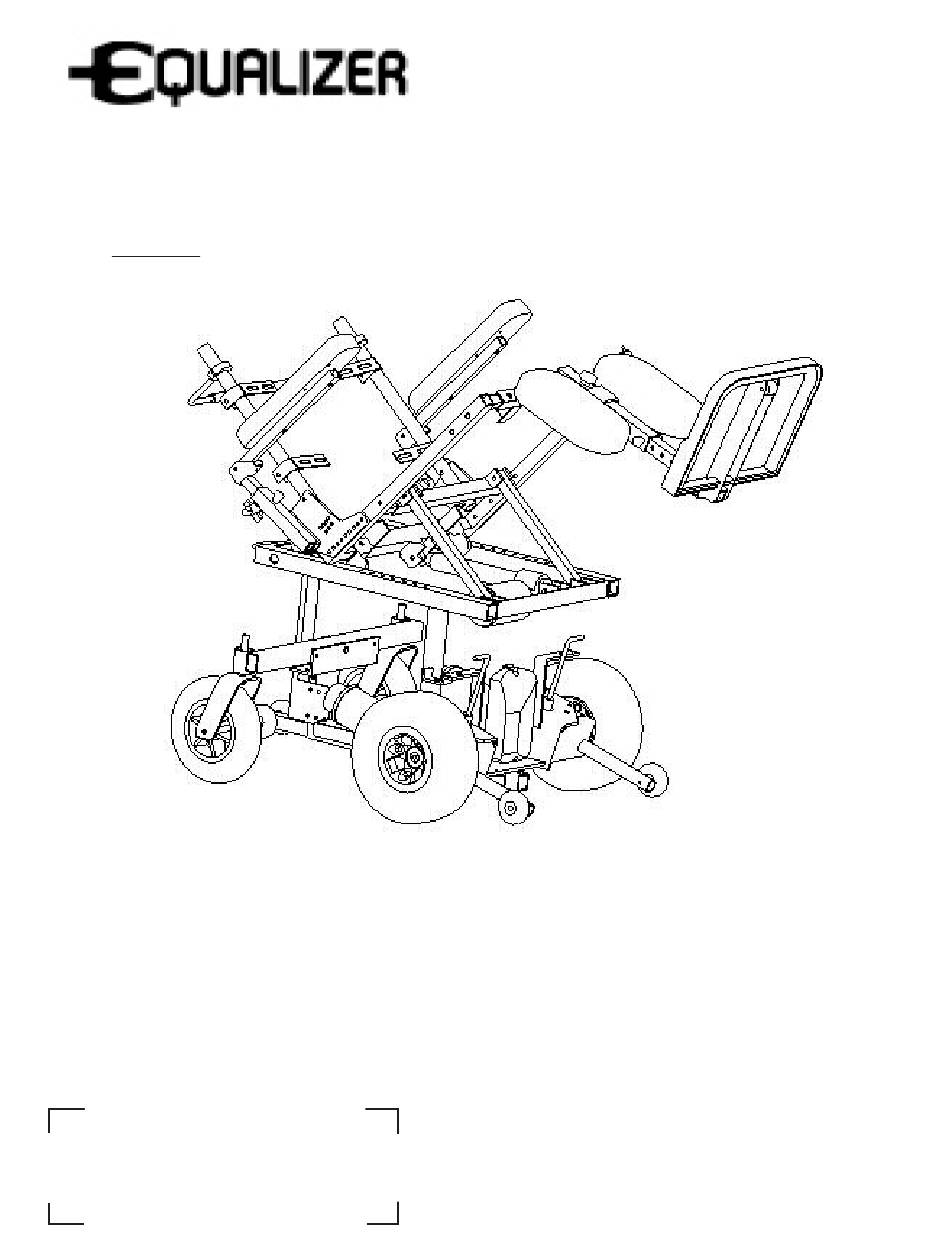

- Page 1 OWNER’S OPERATOR AND MAINTENANCE MANUAL DEALER: THIS MANUAL MUST BE GIVEN TO THE USER OF THE WHEELCHAIR. Set Your Own Pace! USER: BEFORE USING YOUR NEW EQUALIZER TILT SYSTEM, READ THIS MANUAL AND SAVE FOR FUTURE REFERENCE. PN30175 Revised 1109...
-
Page 2: Table Of Contents
Table of Contents THIS MANUAL COVERS THE OPERATION OF YOUR NEW EQUALIZER TILT SYSTEM . BE SURE AND FIND THE INFORMATION THAT PERTAINS TO YOUR NEEDS BEFORE OPERATING. Introduction Warnings Safety Summary Operating Information Safety/Handling of seating systems/wheelchairs Specifications... - Page 3 OWNERS MANUAL rev. 8/26/04 The Equalizer tilt seating system is an adjustable seating system that can be or- dered from the factory with a few predetermined set up instructions requested by the equipment provider purchasing the equipment from Leisure-Lift. All decisions...
-
Page 4: Equalizer Tilt
& supplier to fit the seating system to you and adjust the control settings for your level of function and ability. Before using the Equalizer Tilt System you and each person who may assist you should read this entire manual and make sure to follow all instructions. -
Page 5: Warnings
NOTE: Indicates important things to remember when using your Equalizer. WARNING/CAUTION notices as used in this manual apply to hazards or unsafe practices which could result in personal injury or property damage. -
Page 6: Safety Summary
The Equalizer seating system has optional transport securement anchors intended for use with a four point strap system. Leisure-Lift requires that the rider be transferred from the power chair and secured to automotive type seating while being transported. -
Page 7: Operating Information
BEFORE attempting active use of the seating system/wheelchair. • Turn off the power before you are seated in the Equalizer Tilt System. • Always have assistance when you are entering or exiting the Equalizer Tilt System. - Page 8 Leisure-Lift wheelchairs and seating systems have NOT been designed or tested as a seat for any kind of weight training. If occupant uses said seating system/wheelchair as a weight training apparatus, Leisure-Lift shall NOT be liable for bodily injury and the warranty will be void. WEIGHT LIMITATION Wheelchairs equipped with the Equalizer Power Tilt Only have a weight limitation of 250 Ibs.
- Page 9 EFFECTIVE DECEMBER 2, 1994 THE FEDERAL GOVERNMENT REQUIRES THIS STATEMENT TO BE INCLUDED. ELECTROMAGNETIC INTERFERENCE CAUTION: IT IS VERY IMPORTANT THAT YOU READ THIS INFORMATION REGARDING THE POSSIBLE EFFECTS OF ELECTROMAGNETIC INTERFERENCE ON YOUR POWERED WHEELCHAIR. Electromagnetic Interference (EMI) From Radio Wave Sources Powered wheelchairs and motorized scooters (in this text, both will be referred to as powered wheelchairs) may be susceptible to electromagnetic interference (EMI), which is interfering to electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones.
- Page 10 Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fields from hand -held radio wave sources (transceivers are of special concern). It is possible to unintentionally bring high levels of EM energy very close to the powered wheelchair's control system while using these devices.
-
Page 11: Safety/Handling Of Seating Systems/Wheelchairs
SAFETY /HANDLING OF SEATING SYSTEMS/WHEELCHAIRS “Safety and Handling” of the wheelchair requires the close attention of the seating system/ Wheelchair user as well as the assistant. This manual, as well as the owners manual provided with the wheelchair, points out the most Common procedures and techniques involved In the safe operation and maintenance of the seating system/wheelchair. - Page 12 TRANSFERRING TO/FROM OTHER SEATS WARNING BEFORE attempting to transfer in or out of the wheelchair, every precaution should be taken to reduce the gap distance. Turn both casters toward the object you are transferring onto. Also be certain the wheel locks are engaged to help prevent the wheels from moving. Always have as- sistance when you are being transferred.
-
Page 13: Specifications
200 lbs. 300 lbs. Weight Capcity Information - Installing the Equalizer seating system on a power base reduces the published weight capcity (maximum rider weight) of the power base by 50 lbs. This is be- cause published power base specifications are based on standard seating systems that weigh... - Page 14 SPEED REDUCTION AND/OR INHIBIT - The tilt system has two safety switches built into it that sense the angle the seat is tilted at in relationship to the world, including the slope of the sur- face that you may be driving on such as a hill or a ramp.
- Page 15 While driving on a smooth surface you will find that at approx. 30-35 maximum angle, the unit leaves creep speed and comes to a stop. Maneuvering the power chair at full speed or encountering bumpy surfaces will cause the two safety modes to be enacted at shallower angles than those listed above.
- Page 16 Joysticks with integral actuator controls The controller has two modes of operation. One is called the “drive mode”. It is used to drive the chair. The second mode is the “actuator control mode” used to power the tilt and/or power seat actuators. While you are in the “drive mode”, the power wheelchair controls will function as explained in the basic owners man- ual for the Scout power wheel chair you have purchased.
-
Page 17: Setup Adjustments
SETUP ADJUSTMENTS There are a number of set up adjustments only available to be performed by your autho- rized equipment provider. The following is a list of adjustments that can be made by the equipment owner or care giver. Armrest support height The height of the armrest supports can be adjusted. - Page 18 you to move the pad forward or back. You may also turn the arm pads inward to get them through doorways easier. Tools needed: 7/16” wrench Leg rigging adjustments The optional center mounted foot plate can be adjusted in a number of ways. a) Leg support length.
- Page 19 The M1 has an assembly with wheels that can be telescoped out and pinned in place as needed to add extra stability to the M1. Most Equalizer users will not experience having the anti-tip wheels engage the floor, however we are providing them on the M1 due to its shorter wheel base.
- Page 20 Cushions - Wipe the cushions with a sponge or rag moistened with a mild solution of soap and water. 2. Checking fastener tightness The following fasteners on the Equalizer are intended to be hand tightened and therefore should be checked periodically and retighten if vibrations have caused them to loosen. a) Black plastic knobs on armrest supports b) Black plastic knob on the clamp assembly used to secure the center column mounted foot plate.
-
Page 21: Troubleshooting
TROUBLE SHOOTING If you have having operational problems with your power chair equipped with the Equalizer, there are a few simple things you may want to have checked before contacting you equipment provider. -
Page 22: Limited Warranty
During the warranty period, Leisure-Lift, Inc. may, at its discretion, determine it is necessary to return the Equalizer Tilt System to the factory for repair. Leisure-Lift, Inc. will provide parts and labor, at our factory, free of charge for problems considered to be covered under our warranty. The cus- tomer is responsible for all freight charges if the Equalizer Tilt System is shipped to the factory. - Page 23 Dear Friend: Thank you so much for your purchase of a PaceSaver Scout power wheelchair! We value your trust in us and we will do everything we can to keep you happy. You're in a special group now. Thousands of people before you have trusted Leisure-Lift to provide them with the highest quality mobility products avail- able.
