TEKNIX TEK12260W Installation And Operating Instructions Manual

12 place integrated dishwasher
Hide thumbs

Advertisement

Quick Links

Download this manual

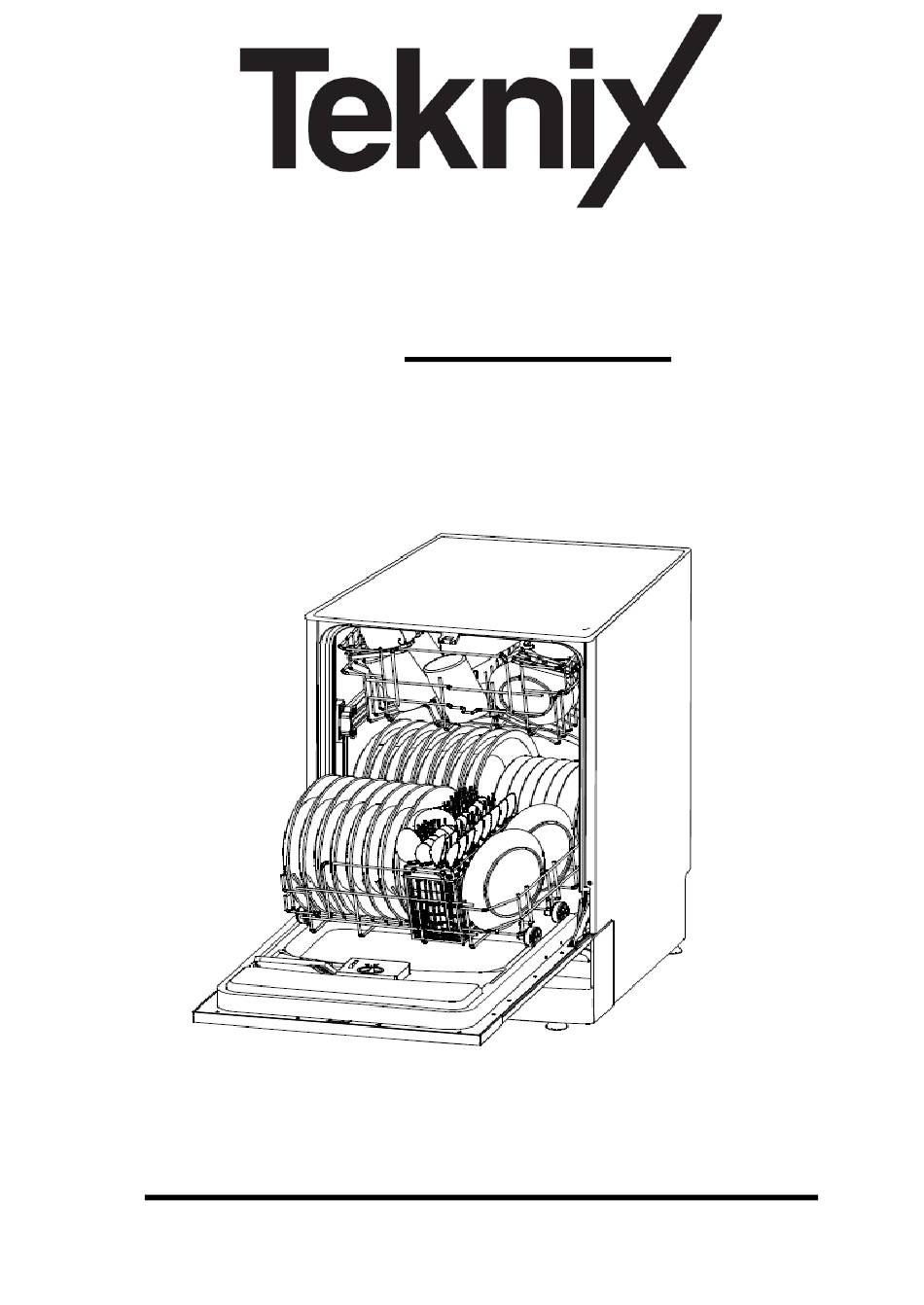

Installation and Operating Instructions
Model: TEK12260W
12 Place Integrated Dishwasher
Please read these instructions carefully before attempting to install or use this appliance. It is
advisable to keep these instructions in a safe place for future reference.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TEK12260W and is the answer not in the manual?

Questions and answers

Related Manuals for TEKNIX TEK12260W

Summary of Contents for TEKNIX TEK12260W

  • Page 1 Installation and Operating Instructions Model: TEK12260W 12 Place Integrated Dishwasher Please read these instructions carefully before attempting to install or use this appliance. It is advisable to keep these instructions in a safe place for future reference.
  • Page 2 Introduction Thank you for choosing this Teknix appliance. It has been designed to give years of trouble-free use provided it is installed and maintained correctly. Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference.
  • Page 3 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Teknix appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
  • Page 4 Description of the Appliance Rear View 1. Upper Basket with spray arm below 2. Lower Basket with Spray Arm Below 3. Door with Control Panel on top edge 4. Water Drain Pipe 5. Water Inlet Connector 6. Plug & Cable...
  • Page 5 CONTENTS: Section 1. Installation Section 2. Safety Advice Section 3. Operating the Appliance Section 4. Maintenance...
  • Page 6 Section 1. Installation  Position the appliance in a dry, well ventilated room with a solid level floor. The room temperature must not fall below +5° or rise above +35°.  This appliance is fitted with adjustable feet so that you can ensure it is sitting level.
  • Page 7  The following diagrams are shown as guidance for installation between existing built-in cabinetry. Ensure that the position for your dishwasher has the following minimum dimensions: If you are positioning the appliance close to a right angled run of cabinets, you must maintain a minimum of 50mm clearance for the door to open correctly (see diagram below).
  • Page 8  To fit your cabinetry décor panel to the dishwasher, use the template supplied. This will allow you to accurately position the fixing hooks.  Fix the top and lower hooks onto your décor panel as shown above and then position the panel onto the appliance door (see diagram below) Top Hook ...
  • Page 9  When you have fitted the décor panel to the appliance door, you will need to adjust the door spring tension. To do this turn the adjusting screws in a clockwise direction to increase the door tension and anti-clockwise to relax the tension (see diagram below).
  • Page 10 Section 2. Safety Advice  This appliance is manufactured and intended for DOMESTIC use only. Any guarantee offered with the appliance is not valid for any installation in a commercial environment.  This appliance MUST BE EARTHED!  Never try and disconnect the power by pulling the supply cable – hold the plug firmly and pull it out of the socket.
  • Page 11 Section 3. Operating the Appliance 3.1. Before You Operate The Appliance 3.1.1. Adding Salt  The sole use of 3-in-1 tablets is not recommended as failure to add salt to the salt container will leave your dishwasher exposed to limescale damage which is not covered by the manufacturers guarantee.
  • Page 12  Remove the Rinse Aid Filler Cap (1).  Add Rinse Aid until the container is full (2).  Replace the Filler Cap (3).  If rinse aid is low the indicator light (6) will show on the control panel. 3.1.3.
  • Page 13 3.1.4. Adjusting The Rinse Aid Dispenser The rinse aid container has 6 settings. Your machine has been pre-set at setting 4. If you can see white spots on the crockery or poor drying is a problem increase the setting to 5. If the crockery is still not drying properly, increase the setting to 6.
  • Page 14 3.2. The Control Panel 1) On/Off Button 2) Program Selection Buttons/Lights 3) Power Indicator Light 4) All-in-one button & Light 3.3. Loading The Baskets 3.3.1. Upper Basket The upper basket is designed to hold delicate and lighter items such as glasses, coffee and tea cups and saucers, as well as small plates, small bowls and shallow pans (as long as they...
  • Page 15 3.3.3. Cutlery Basket The cutlery basket has been designed to hold cutlery items only. Do not use this basket for other items! Always ensure that knives and/or sharp items are placed into the basket with the sharp end pointing down. Do not let them touch each other –...
  • Page 16 You can fold back the cup shelves on the top basket as follows: You can collapse the plate racks in the lower basket as follows:...
  • Page 17 3.5. Program Selection Table = Rinse Aid Required N.B. The dishwasher does not have a separate drying programme. Drying is by residual heat only. 3.6. Selecting a Program & Starting the Cycle Please read in conjunction with Section 3.2. The Control Panel ...
  • Page 18 Section 4. Maintenance 4.1. Cleaning the Filter The filter helps prevent large pieces of food or other items entering the pump and causing damage. It is important that you examine and clean the filter system on a regular basis. Blocked filters are not covered under the Guarantee! The filter assembly is located inside the appliance just...
  • Page 19 4.3. Cleaning the Spray Arms Small particles of food will over time get into the spray arms and cause blockages. Periodically remove the spray arms (as shown below) and wash them in warm soapy water. Blocked spray arms are not covered under the Guarantee! To remove the upper spray arm, hold the nut and rotate the arm...
  • Page 20 4.5. Before Calling Service If you appear to have a problem with your dishwasher, please take a few minutes to check the following ‘trouble shooting’ guide. The problem may be easily solved without the need for a service call. Dishwasher Will Not Start •...
  • Page 21 Knocking Noise From Inside the Cabinet • The spray arm is catching against an item in the basket – reposition the items • Items of crockery are loose in the basket and water pressure is causing them to move – reposition the items of crockery The Crockery is not Clean •...
  • Page 22 To Register your Appliance simply complete the card in your appliance pack and return it with a stamp affixed or Alternatively you can Register online at www.repairtechuk.com SERVICE HELP-LINE Should your appliance develop a fault, please call the montpellier Service Helpline on: 01527-888133 Please remember to have all your product details available, including the model number, serial number, date of purchase and your retailer’s details...
  • Page 23 Appliance Dimensions:...
  • Page 25 Important Note: This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
