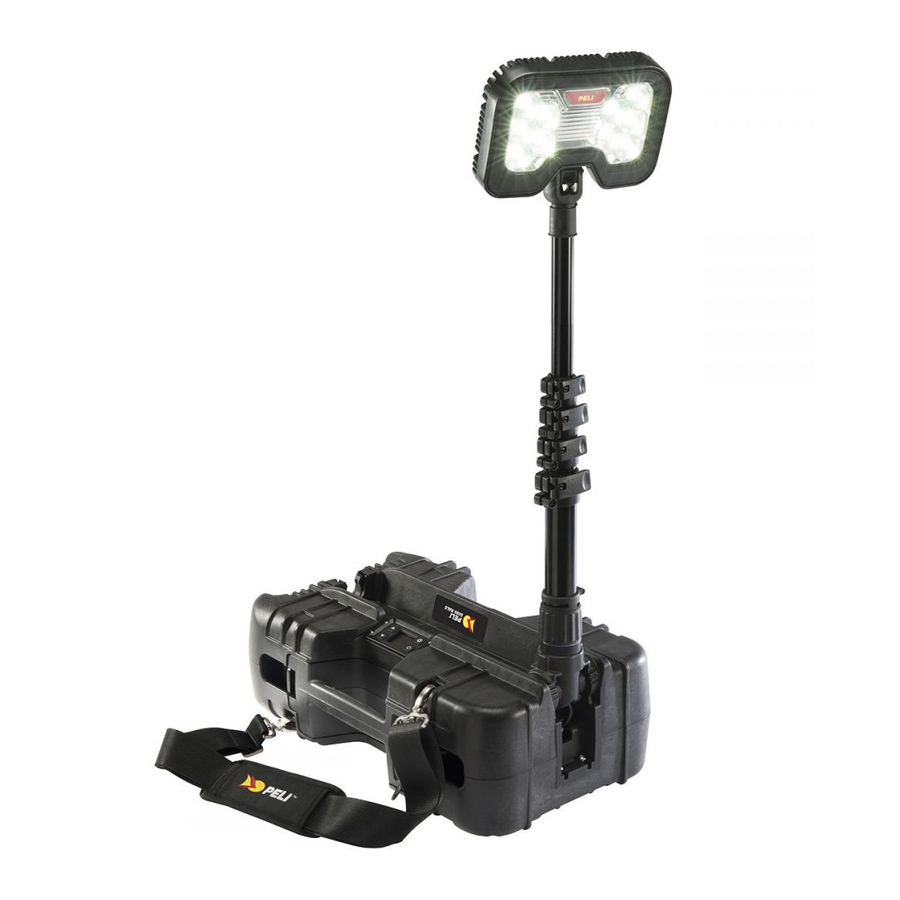

PELI 9490 RALS - Floodlight Manual

Mast Operation

1. Lift the light and pole to a selected position, then twist the red locking collar clockwise to lock the pole in place.
2. To extend the mast, release the clamp on each section and raise. Lock each clamp until you have reached your chosen height.
3. To collapse the mast, reverse the procedure.

Light Operation

Prior to light operation, locate the required fuse.

With a slotted screwdriver, screw the fuse into the fuse receptacle on the side of the power pack. (A)

1. Press power button on keypad once to switch on. The default setting is the preset* high mode (as indicated by the three symbols at the top of the screen). (B)

   Your remaining run time is displayed in the center of the screen and your battery level is shown at the bottom of the screen.
2. Press the bottom left button on the keypad to change between high, medium and low power. Your remaining run time varies between these settings.
3. Press the up or down buttons on the keypad at any time to enter the Intelligent Control (IC) mode. The IC mode allows you to select any run time up to 24 hours. In this mode, your power level is displayed at the top of the screen instead of the preset 'sun' symbols. You can go back to preset mode at any time by pressing the bottom left button on the keypad.
4. Press the power button on the keypad to switch off.

The 9490 IC features three preset modes which provide recommended lux levels over a certain distance. Please see table below:

The 9490 features the ability to be used while charging. When the charger is connected to AC power and the product is switched on, the 9490 will automatically select a light level to allow continuous operation. - automatic mode. (In this mode, the battery level will remain constant, the light will be at a 50% level.

In AC mode the display will show the battery level and power level but the time display will be replaced by --:-- and the hourglass icon will be extinguished.

Manual adjustment of the brightness will still be possible. If the brightness is increased, then automatic mode will be exited, a new runtime will be computed based upon the new operating conditions. The battery level and the display will revert to the normal IC mode, (or preset mode if the bottom left button has been used). If the brightness is decreased, the unit will remain in continuous mode (and the battery will charge up slowly).

If the charger is removed, the unit will return to normal operation and the run time display will show the remaining time for the selected setting.

Flash Mode

1. Press and hold the power button for 3 seconds until flashing begins, then select the required power level.
2. To switch flashing mode off, press the power button again.

Power Pack

The 9490 power pack is removable. This allows for continuous use of the product by replacing it with another fully charged power pack when required. To remove the power pack simply release the clips and lift via the handle. (C, D)

Power Pack Level

The power pack is equipped with a power level monitor which remains permanently illuminated to tell the user how much power the battery contains. The level monitor will glow brightly when the product is switched on and dim when not in use.

While the product is switched on, the number of segments illuminated in the level monitor will gradually reduce over time. The product will switch off soon after a single red flashing segment is displayed. Once the product has switched itself off, the single red segment in the level monitor will continue to flash, indicating that a recharge is required.

Power Pack Charging

The power pack can be charged inside or outside of the main 9490 housing.

1. Remove the dust cap from the charging socket and plug in charger.
2. Connect the charger to the mains AC power supply.

Charge Cycle Indication

During charging, the level monitor display will become brighter and continue to cycle until all segments of the display are shown. Once the display stops cycling and shows all segments, the battery is fully charged.

Note: The power pack can be left attached to the charger without any harm to the battery.

ONLY USE APPROVED POWER SUPPLY AND ENSURE CHARGING IS CARRIED OUT IN A WELL VENTILATED ROOM. DO NOT STORE BATTERY PACKS IN A DISCHARGED STATE.

WHEN NOT IN USE, RECHARGE THE BATTERY PACK EVERY 3 MONTHS.

Battery/Fuse Replacement

Contact your dealer for a replacement battery or fuse.

Environmental

At the end of its technical life, the sealed lead battery should be sent to a suitable recycling center or returned to the point of purchase.

BATTERY SAFETY

BATTERY SAFETY – YOU MUST READ THESE WARNINGS AND INSTRUCTIONS BEFORE USING OR CHARGING YOUR BATTERIES!

HANDLE AND STORE BATTERIES PROPERLY TO AVOID INJURY OR DAMAGE BATTERIES CAN BE DANGEROUS!

IMPROPER HANDLING OF BATTERIES CAN LEAD TO LEAKING, FIRE OR EXPLOSION WHICH CAN CAUSE SERIOUS INJURY OR PROPERTY DAMAGE.

Rechargeable Batteries

» Hazardous Location Safety Approvals for explosive environments are only valid for the Peli battery pack that is supplied with the equipment.

» For replacement battery packs, only use the approved Peli battery pack for the model of the product that you are using. The use of other battery packs will reduce performance, expose the user or others to serious injury, and will invalidate the safety approval.

» Equipment should only be charged in a non-hazardous location.

» Equipment should only be charged using the Peli charger base that is supplied.

» Batteries should be charged and operated between the temperatures shown in this table:

» DO NOT charge rechargeable alkaline batteries while they are still in the equipment. Charging the alkaline batteries while they are still in the equipment can cause internal gas or heat generation resulting in venting, explosion or possibly fire which could cause serious injury or property damage.

» Deep discharge* of the rechargeable batteries may cause batteries to vent potentially dangerous gasses and electrolytes.

» It is strongly recommended to condition* batteries every three months. During storage, the capacity of the battery decreases due to self-discharging. Leaving the product unused for long periods of time will decrease the battery life. Withdrawal of the charger from the product prior to a 'READY' indication will result in an inadequate charge.

» If products are stored that contain regchargeable products, it is advisable to do so in a cool, dry place. If the average temperature exceeds 25°C (77°F) (below 30°C or 86°F), the frequency of supplementary charging should increase.

» It is advisable to always condition a battery that has been stored before use.

*Deep Discharge: The battery has been allowed to discharge most of its capacity to a point beyond which irreparable damage has occurred. See battery specifications for the specific levels.

*Condition a Battery: Charge your battery to the fullest capacity and then disconnect from charger. Let the light run until it completely drains the battery and turns itself off. Place the torch back onto its charger and completely recharge the battery before using it. This conditioning or "cycling" of the battery will help it retain a fuller charge for a longer period of time.

» If the charger fails to indicate a full charge after repeated charging attempts, or the battery exhibits a marked reduction in performance, a battery replacement is required.

» DO NOT use chargers designed for a different battery technology or equipment, or model. Doing so may damage the product and expose the user to serious injury or property damage.

» Ni-MH Rechargeable Battery Packs: DO NOT use Ni-MH rechargeable battery packs for longer than three years or 500 charge/discharge cycles, whichever comes first. Using Ni-MH rechargeable battery packs for longer than three years or 500 charge/discharge cycles will reduce the performance of the battery and expose the user to serious injury or property damage.

» Li-Ion and LiFePO4 Rechargeable Battery Packs: DO NOT use Li-Ion and LiFePO4 rechargeable battery packs for longer than five years. Using for a period longer than five years will reduce the performance of the battery and expose the user to serious injury or property damage.

» Lead Acid Battery: DO NOT use lead acid batteries for longer than five years or 400 charge/discharge cycles at 100% DOD ( Depth Of Discharge) *, whichever comes first. Using lead acid batteries for longer than five years or 400 charge/discharge cycles at 100% DOD will reduce the performance of the battery and expose the user to serious injury or property damage.

* DOD ( Depth Of Discharge) *: is the fraction or percentage of the capacity which has been removed from the fully charged battery. Depth of Discharge is defined as the total amount of energy that is discharged from a battery, divided by the battery's nominal capacity. Depth of discharge is normally expressed as a percentage.

Battery Recycling

ALWAYS dispose of batteries properly at an approved battery recycling center. Failure to do so may be a crime and can lead to the release of harmful toxic materials.
