GR300 DC-13 Owner's Manual

DC-13
Dual Bus Converter
OWNER'S MANUAL
_______________________________________

DESCRIPTION

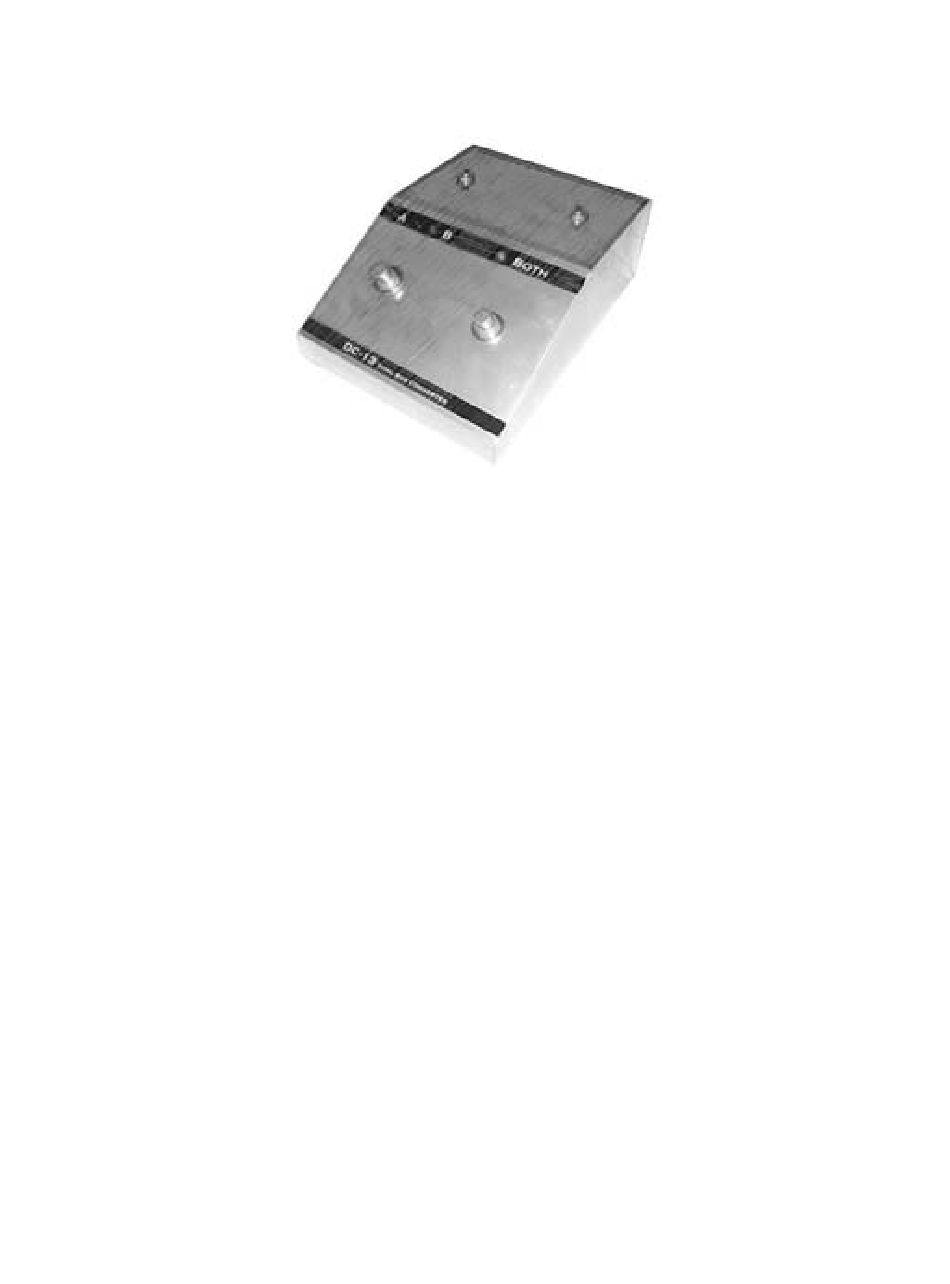

Congratulations on your purchase of the DC-13
Dual Bus Converter.
The DC-13 combines the technology found in the
Roland BC-13 bus converter with technology
found in the Roland US-20 unit selector.
Like a BC-13 Bus Coverter, the DC-13 can
convert the vintage 24-pin style signals into
modern, 13-pin control signals, enabling the
vintage guitar synth enthusiast access to the
latest in guitar technology.
_______________________________________

IMPORTANT NOTES

• The DC-13 does not pass the output from
the guitar's standard pickups to the 13-pin
synthesizer(s). To access the output from
the guitar's pickups, use either the 1/4"
Like a US-20 Unit Selector, the DC-13 can be
used to select between two guitar synthesizers,
either individually or together.
In addition, the DC-13 has special separate
outputs for line-level guitar signal and hex fuzz.
Your DC-13 has been hand-built and hand-wired
using quality components for reliable operation
and is backed by a five-year warranty.
Please read this owner's manual carefully before
using the DC-13.
standard output jack on the guitar, or use
the direct Guitar Line Output on the DC-
13.
