Summary of Contents for Mobi Technologies 70676

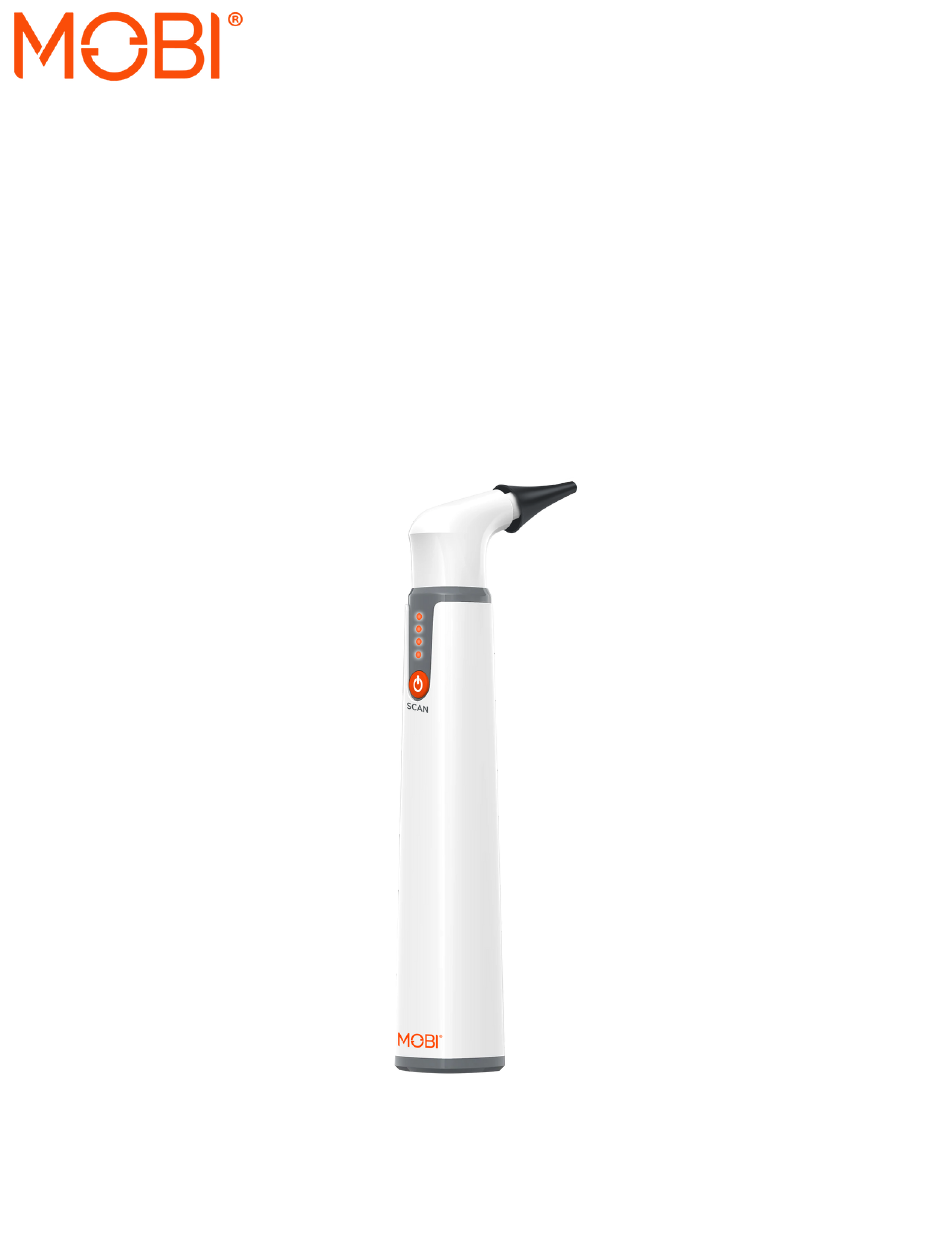

- Page 1 V 1.4 Ear, Nose & Throat Wi-Fi Otoscope HD Camera Quick Start Guide #70676...
-
Page 2: Table Of Contents
Contents Table of Contents ............2 Before Getting Started ..........3 Product Functions ............4 Account Setup ............... 5 EZ Mode Setup ............6 - 9 AP Mode Setup ............10-12 Viewing Camera ............13 Warranty ................14 General Information .......... -
Page 3: Before Getting Started
Before Getting Started Before Getting Started Ensure you have access to your email to verify your MOBI Smart Account. Have your 2.4 GHz Wi-Fi Network Name & Password ready. If you experience issues setting up your device, contact support at www.getmobi.com/gethelp. You can also reach us at (323)904-3000, Monday - Friday, 8:30 AM - 5:30 PM PST. -
Page 4: Product Functions
Product Functions MOBI Otoscope Breakdown The MOBI Ear, Nose, & Throat Smart Wi-Fi Otoscope is a sleek and reliable multi-purpose camera with a 3.5mm lens and a rechargeable battery. Speculum Covers the camera/LED guide lights before entering the ear to prevent injury/misuse. Battery Indicator Battery life is displayed (ranging from 1 -4 dots). -
Page 5: Account Setup
Account Setup 1 - Register If you are a first-time MOBI Smart user, please create an account. Open the MOBI Smart App & tap "Register." Agree to the Privacy Policy terms & conditions. Enter a valid email address & tap "Get Verification Code."... -
Page 6: Ez Mode Setup
Otoscope Setup (EZ Mode) 3 - Add Device - EZ Mode Tap "Add Device" or the "+" icon in the top right-hand corner. Tap on "MOBI E.N.T. Otoscope." Note: For adding additional devices, tap the "+" icon in the top right- hand corner, and find your device. - Page 7 5 - Setup Wi-Fi Enter your 2.4 GHz Wi-Fi name & password. Tap "Next" to confirm. Note: This product only connects to a 2.4 GHz Wi-Fi signal. Note: Please get in touch with your Internet Service Provider if you cannot identify your 2.4 GHz Wi-Fi Network.
- Page 8 6 - Connecting After tapping "Next," the MOBI Smart App will display your connection status. Note: If your connection times out, your smartphone may be connected to a 5GHz Wi-Fi network. Please check your Wi-Fi name & password, and try again. 7 - Success Once connected successfully, your MOBI Smart App will prompt you...
- Page 9 8 - EZ Mode Use Congratulations, you've set up your device in EZ mode. To use your MOBI E.N.T. Otoscope, tap the blue "VIEW" button. Note: In EZ Mode, the MOBI E.N.T. Otoscope is only viewable while connected to the 2.4GHz Wi-Fi Network used to connect the device under step 5 - "Wi-Fi Setup."...
-
Page 10: Ap Mode Setup
Otoscope Setup (AP Mode) 9 - Add Device - AP Mode The otoscope includes an additional operation method called AP Mode. It generates a direct hotspot signal that provides higher picture quality and allows users to utilize the otoscope outside their home network. - Page 11 11 - Set a Password After selecting "AP Mode," you'll be redirected to a screen that will: Display your AP Hotspot signal name Prompt you to create a custom, 8-digit password for the signal. After creating a password, your Otoscope will create a hotspot signal.
- Page 12 13 - Select AP Hotspot In your smartphone's Wi-Fi settings, select the Network signal that reads: SL-MOBI WiFi-XXXX. Once connected, return to the app and the MOBI E.N.T. Otsocpe's main interface to view the Otoscope Camera. Once in the MOBI E.N.T. Otoscope's main interface, iOS users may see the following prompt: "The Wi-Fi Network 'SL-MOBI WiFi-XXXX'...
-
Page 13: Viewing Camera
Viewing Camera 14 - Disabling AP Mode To disable AP Mode and set the MOBI E.N.T. Otoscope back to EZ Mode, return to Step 10 and tap "AP Mode" under Advanced Settings. Then tap "Disable AP Mode." Note: If you don't disable AP mode, you must connect your smartphone device to the MOBI E.N.T. -
Page 14: Warranty
Warranty LIMITED PRODUCT WARRANTY MOBI® warrants its products to be free from defects in material and workmanship for 90 days from the date of purchase. Should the product prove to be defective during the warranty period, we would either replace or repair the product at our option without charge. -
Page 15: General Information
General Information General Information This otoscope camera is a portable, handheld video camera with a short focal length; it's compatible with iPhone, iPad, Android devices, and tablets. The high-resolution camera provides great video quality. There are 6 LED lights on the tip of the camera, which make the light path and increase the visual field of view. -
Page 16: Safety Information
Saftey Information Safety Information When operating your equipment: Warning! This product cannot be used for the diagnosis and treatment of any patient unless specified by a physician. Warning! When using this product, please make sure that the product has an intact appearance and does not have any missing accessories. -
Page 17: Specifications
Specifications Specifications Network Standard: IEE 802.11 b/g/n Antenna: Built-in IPEX antenna Operating Frequency: 2.4 GHz Data Rate: 802.11a/b/g/n: up to 150Mbps Camera Diameter: 3.9mm Camera Light Source: 6LEDs Power Input: 5v/1A Battery Type: 800mm Ah lithium battery Battery life 2-2.5 hours Important information to note: Clean the surface of the device with 75% alcohol solution before contacting the skin. -
Page 18: Fcc Statement
FCC Statement FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
