CTM LYNG 5648533 Installation And User Instructions

INSTALLATION
NB: It is best to carry out pairing and test the On/
Off switch before installation.
Mount the switch directly on the wall or on the
outside of a standard wall box.
TIP: Program all the units in a system before
mounting. This will make it easier to test
the equipment.
DIPSW
Back of On/Off switch
OFF
DIP 1 – not in use
DIP 2 – not in use
DIP 3 – Master switch function/Lock function:
If DIP3=ON, only this switch panel can turn paired
products back on if they have been turned off with
this switch panel. Factory setting = OFF.
DIP 4 – not in use
5
ANNUAL END USER TEST
The system owner/user must familiarise themselves with the
accompanying Installation and User Instructions at installation,
and is under an obligation to test that installed equipment shuts off
the water supply as required in the Norwegian Insurance Approval
Function testing must be performed at least twice a year in
accordance with the Installation and User Instructions for sensors
Technical data
Dimensions:
Conforms to RS16
Battery:
CR2032
RF:
868.100 MHz +5 dBm
Compatible with "v2"
equipment, see page 2
ON
CTM Lyng AS is Norway's leading manufacturer
and supplier of security products for the home,
assistive technology, energy efficiency, and light
and heating control for all building types under the
mKomfy , mTouch
®
We distribute our products through wholesalers.
We offer everything from product
development to production and distribution.
Our production facility in Vanvikan is equipped with
some of the most advanced machinery in Europe.
Verkstedvegen 19, 7125 Vanvikan, Norway
Tel: +47 72 83 16 11
Email: marked@ctmlyng.no
For more information, visit us at
www.ctmlyng.com
Thank you for choosing a product from CTM Lyng AS
Board (FG) test.
and switch panels.
IP Code:
20
Battery life:
5 years in
normal use
RF range:
30 metres
, Microsafe and Centrol brands.
® ® ®
6
Installation and user instructions

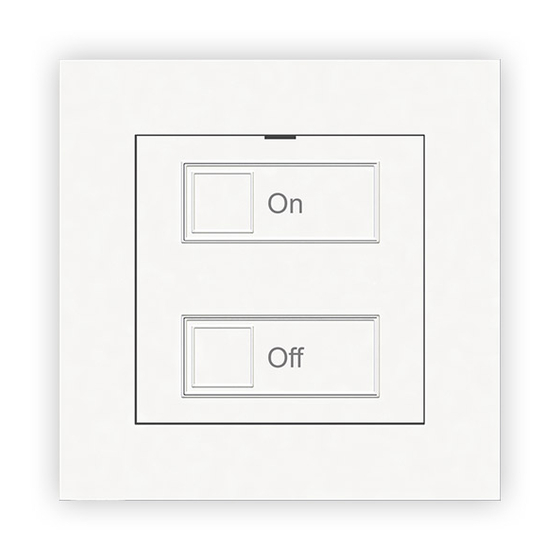

On/Off switch, wireless
No. 5648533 / 6251647
