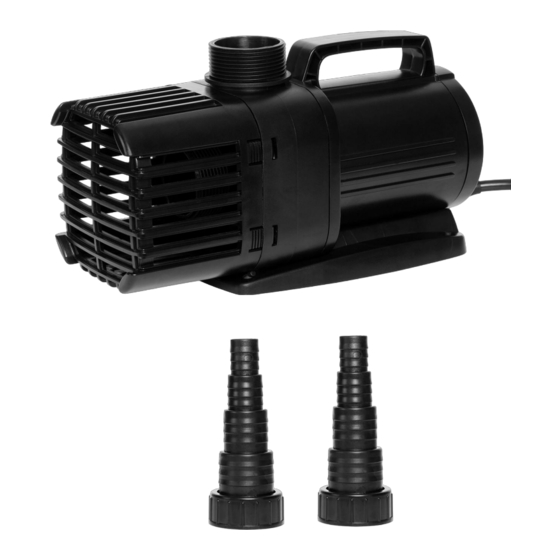

- Page 1 HMW-ARP2000 Homewell 2100GHP pond pump HMW-ARP3000 Homewell 3000GHP pond pump HMW-ARP5000 Homewell 5000GHP pond pump HMW-ARP8000 Homewell 8000GHP pond pump INSTRUCTION MANUAL...
- Page 2 Thank you for purchasing the HOMEWELL water pump. This is a versatile pump ideal for fish ponds, fountains, waterfalls, and other water features. This submersible/external water pump is designed for continuous operation. The unit comes assembled and is ready to use. Simply plug in to turn the pump on.
- Page 3 The pump can be disassembled for maintenance. Specifications Flow Max. Total Input Model Rated voltage Inlet/Outlet (inch) (GPH) Head (Ft) Current (A) HMW-ARP2000 120V 60Hz 2100 0.95 Min.0.75” - Max.1.5” HMW-ARP3000 120V 60Hz 3000 Min.0.75” - Max.1.5” HMW-ARP5000 120V 60Hz 5000 2.45...
- Page 4 PARTS BREAKDOWN ASSEMBLY INSTRUCTIONS The pump comes assembled. To take it apart for cleaning start by sliding off the foot plate. The foot plate comes with 4 plastic feet that slide in an out of the base. Take off the pre-filter by pressing the two buttons in on one side. Unscrew the 4 screws connecting the pump body with the pump chamber.
- Page 5 Troubleshooting: 1. If the pump stops working potential solutions are check the power, let the pump cool down and clean the rotor of obstructions. 2. While setting up the pump unsubmerged refer to the placement section for proper setup. 3. If the pump stops pumping but it is still on, there could be residual air in the chamber, which would stop the water from pumping.
