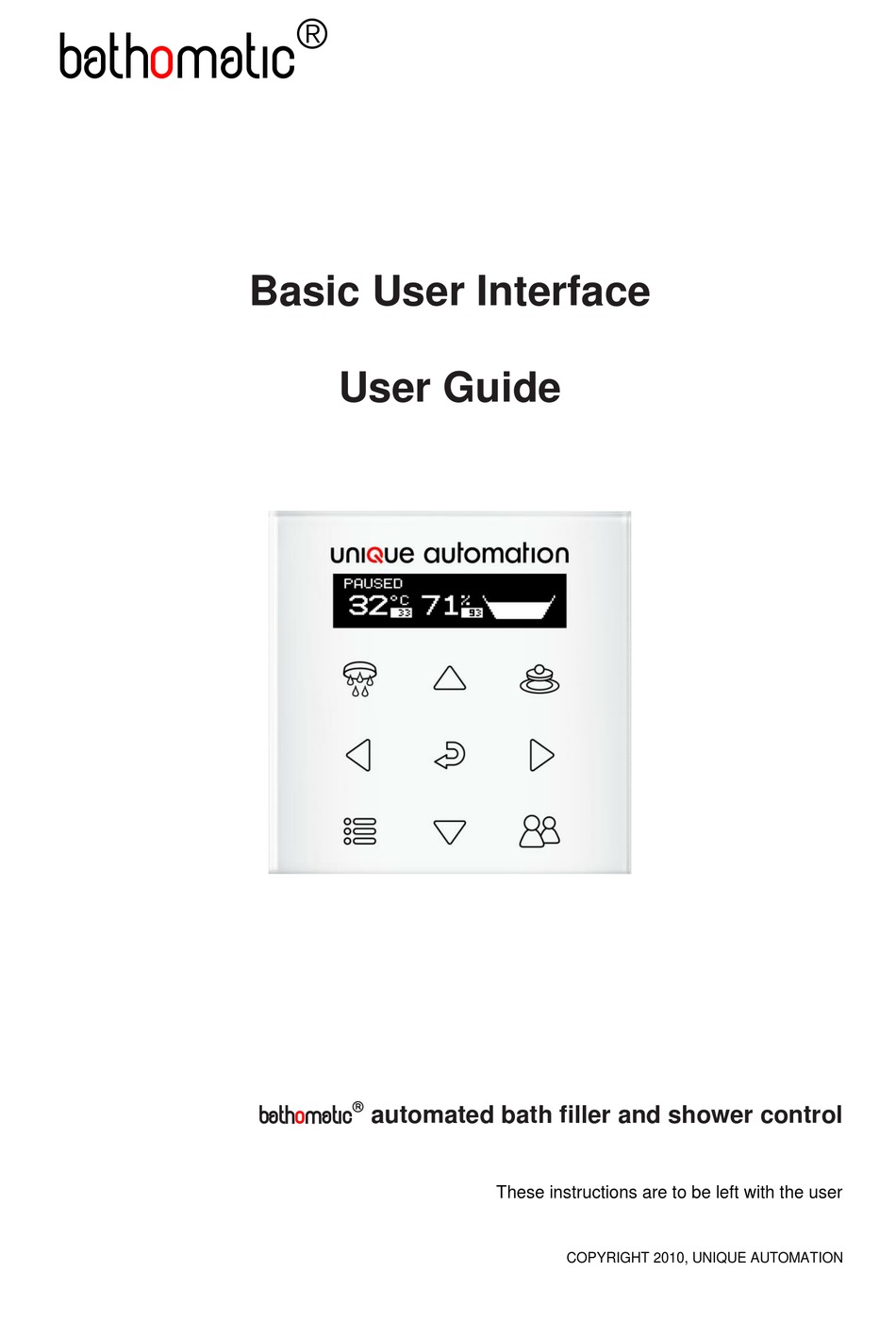

  • Page 1 ® bathomatic Basic User Interface User Guide  bathomatic automated bath filler and shower control These instructions are to be left with the user COPYRIGHT 2010, UNIQUE AUTOMATION...
  • Page 2: Table Of Contents

    Hand Shower ......................7 Drain Operation ......................7 Closing the drain..................... 7 Opening the drain ....................7 Main menu ......................... 7 Service menu ......................8 0% - bath calibration ....................9 100% - bath calibration ..................10 2010-07-23 COPYRIGHT 2010, UNIQUE AUTOMATION...
  • Page 3: Introduction

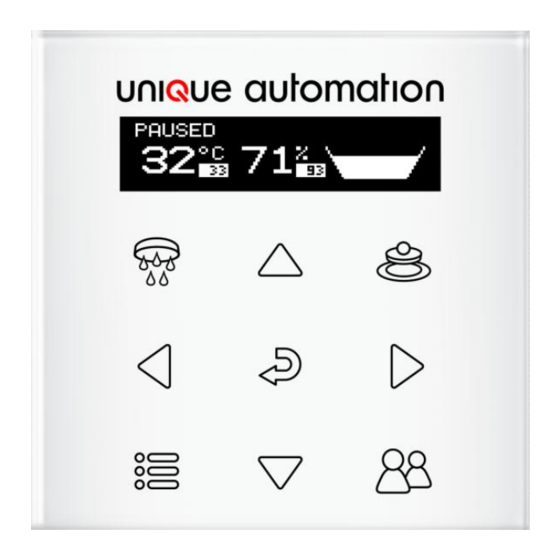

    Basic User Interface (BUI). Below are simple instructions allowing users to run a bath and alter their preferences using the easy to navigate BUI with its function/navigation buttons and graphics display.
  • Page 4: Graphics Display

    Desired Water Depth - displays the depth value last sent to bathomatic Pressing the button during filling or draining will put bathomatic in paused status awaiting further instructions. Pressing the button again will change status to filling and followed by the button will change status to draining.
  • Page 5: Quick Start

    The desired values for water temperature and depth can be altered when bathomatic is empty and is not filling or draining. Should you wish to change the desired temperature and depth when bathomatic is filling or draining press...
  • Page 6: Changing A Preset

    Following the process above alter the variables of a preset and end the process by scrolling to the Store preset line and using store the preset or using store the preset and go back to the preset menu. 2010-07-23 COPYRIGHT 2010, UNIQUE AUTOMATION...
  • Page 7: Hand Shower

    When bathomatic is filing the drain cannot be open. Should you wish to open the drain while bathomatic is filling you need to pause bathomatic by pressing the button. When bathomatic is paused the drain functionality is enabled.
  • Page 8: Service Menu

    Service menu Main Menu Service Service Menu Menu Right arrow increments the number Service Menu Exit the service menu by pressing the menu button 2010-07-23 COPYRIGHT 2010, UNIQUE AUTOMATION...
  • Page 9: 0% - Bath Calibration

    SET 0% Bath tub calibration should only be undertaken when the bath tub is in sight, and you have easy access to the power switches supplying bathomatic and all associated equipment. It is advisable that calibration is done prior to final positioning of the bath panels/aprons.
  • Page 10: 100% - Bath Calibration

    It is strongly recommended that 100% bath calibration is made below the point of overflow. If 100% - bath calibration is set at the point of overflowing, due to the fluctuation of depth reading bathomatic may never reach 100%, thus it may not stop filling should 100% fill is requested. 2010-07-23...
