The EEN-BP2R car park control unit enables RF
control of two car park accesses called "ENTRY"
and "EXIT".
It works with an active antenna supplied with the
EEN-KBP2R kit that receives an RF signal.
It accepts the 2 and 4-channel Intratone RF
868MHz remote controls.
When controlling the 2 accesses, the anti-passback
function is available and can be set by switches.
It can be installed on a DIN rail or wall-mounted.
Car park control unit features:
-
12
24 V AC/DC – 200 mA.
-
2 2A 24V relays.
Description of the unit's components
TOP
Removable memory
The EEN-BP2R meets the R&TTE 1999/5/EC directive: electrical safety standard EN 60950 (2000)
applied, EMC standard EN 301 489-3 (2000) applied, radio standard EN 300 220-3 radio (2000) applied.
The case and its accessories must not be disposed of with unsorted municipal waste, but must
follow the WEEE (Waste Electrical and Electronic Equipment) collection and recycling channel.
Installation and user guide for the EEN-BP2R car park control unit
Page 1 / 6
for the EEN
for the
for the
EEN- - - - BP2R
EEN
EEN
Presentation
Reset button
Terminal
blocks
EC standards
End of life product recycling:
BP2R Car park control unit
BP2R
BP2R
Car park control unit
Car park control unit
Car park control unit
RW
Remote control management:
-
On the internet: www.intratone.com.
-
Read/write mode from the web
-
Max 2,500 remote controls
-
Opening of max 5 units per remote control.
Be sure to note the unit's
serial number. It will be
needed for managing your
remote controls from the
Internet.
Red LED
V233 – 0008 – AA
Advertisement
Table of Contents
Related Manuals for Intratone EEN-BP2R
Summary of Contents for Intratone EEN-BP2R

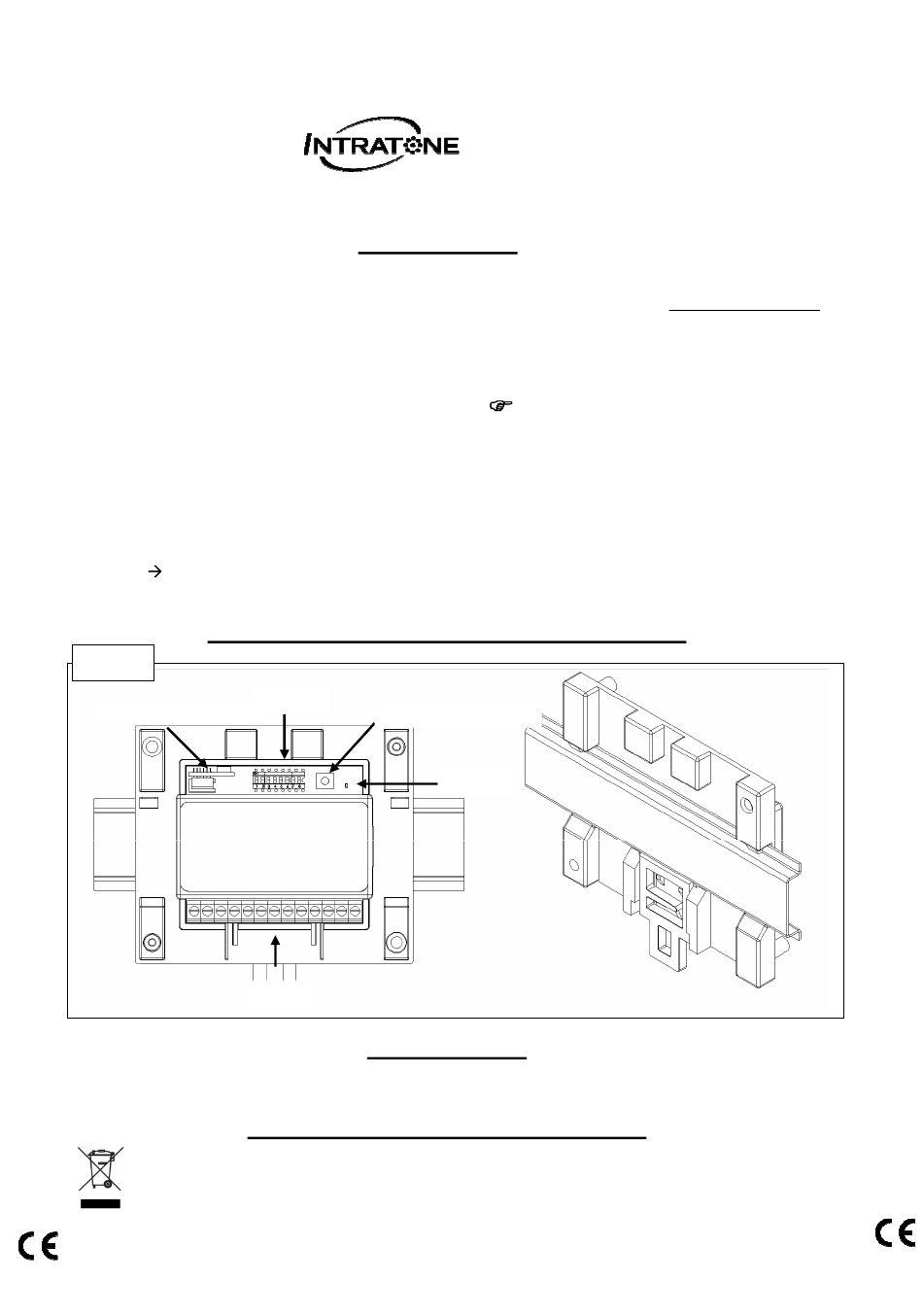

- Page 1 Terminal blocks EC standards The EEN-BP2R meets the R&TTE 1999/5/EC directive: electrical safety standard EN 60950 (2000) applied, EMC standard EN 301 489-3 (2000) applied, radio standard EN 300 220-3 radio (2000) applied. End of life product recycling: The case and its accessories must not be disposed of with unsorted municipal waste, but must follow the WEEE (Waste Electrical and Electronic Equipment) collection and recycling channel.
- Page 2 This will be the case for solid metal doors on the car park or where the "ENTRY" access is at some distance from the "EXIT" access Installation and user guide for the EEN-BP2R car park control unit Page 2 / 6 V233 – 0008 – AA...
- Page 3 Operation of the red LED State Correspondence New unit: The unit works with all Intratone remote controls whether or not they are 1 flash every programmed. This state allows the installation of the car park control unit to be 3 seconds tested.
- Page 4 Left and right buttons of 2-button remote controls Buttons III and IIII The 2-button remote controls do not operate this mode Installation and user guide for the EEN-BP2R car park control unit Page 4 / 6 V233 – 0008 – AA...
- Page 5 The anti-passback function is only activated with the combined use of ENTRY and EXIT vehicle detection loops, and it only works with remote controls programmed to work with the anti- passback function (see www.intratone.com). This function does not concern any remote controls not programmed to work with anti-passback.
- Page 6 Sizes Installation and user guide for the EEN-BP2R car park control unit Page 6 / 6 V233 – 0008 – AA...
