Bottom Drill
630
1087
4x
4x
4x
2x 7/8'' Brass Y's
1x Hole Saw Arbor
1089
1088
226
228
421
314
430
335
420
311
301
221
244
401
400
236
2x 1/4" Female Terminals
1/4" Ring Terminal
1x Quick Connector
235
233
1026
611
1x 90° Duct Elbow
with vent hole
501
2x 2" Defrost Vents
600
1x 2" Duct Y
610
1x 2" Elbow Vent
504
214
503 .1
505
506
Advertisement
Summary of Contents for Ice Crusher Heaters ICCH-BD-C-CFZ 500

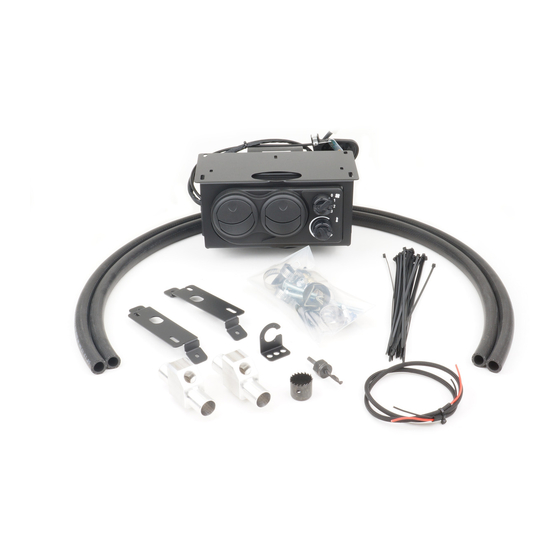

- Page 1 Bottom Drill 1026 1x 90° Duct Elbow with vent hole 1089 2x 2" Defrost Vents 1087 1088 1x 2" Duct Y 503 .1 1x 2" Elbow Vent 2x 7/8'' Brass Y's 2x 1/4" Female Terminals 1/4" Ring Terminal 1x Quick Connector 1x Hole Saw Arbor...
- Page 3 Ice Crusher Cab Heater Kit Ice Crusher Below Dash Cab Heater CFMoto ZForce 500 ICCH-BD-C-CFZ 500 Options MaxStat Customer Name:_______________________ Heater Unit Options Vent Hole Cut Clamp-off Tools Heater Brackets MaxStat Hardware Bag ...
- Page 5 CFMoto ZForce 500 Under Dash Compact Ice Crusher Heater. Please read all instructions before beginning installation. When working on cooling systems always allow the vehicle to cool to avoid being burned or scalded by hot coolant. Always disconnect vehicle’s negative battery lead before working on electrical systems. This kit is reasonably complex to install.
- Page 6 CFMoto ZForce 500 Under Dash Compact Ice Crusher Heater. Install heater and defrost mounting bracket, defrost duct (optional) with the end with tabs toward defrost duct mounting bracket (optional) as shown in Figure 2 and attach using supplied #10x1/2” mounting screws. Install heater supports bracket as shown in Figure 3 using supplied 5/16x5” bolts and 5/16 nuts.
- Page 7 CFMoto ZForce 500 Under Dash Compact Ice Crusher Heater. Please Note: Before connecting the hoses to the Y and fittings, take a garden hose and run water through the heater hose and heater assembly. This will help remove air from the system and stop air locks, this step must be carried out.
- Page 8 CFMoto ZForce 500 Under Dash Compact Ice Crusher Heater. Figure 1 Figure 2 www.utvheaters.com 9/25/17 ICCH-BD-C-CFZ500 Ver.
- Page 9 CFMoto ZForce 500 Under Dash Compact Ice Crusher Heater. Figure 3 www.utvheaters.com 9/25/17 ICCH-BD-C-CFZ500 Ver.
- Page 10 CFMoto ZForce 500 Under Dash Compact Ice Crusher Heater. Figure 4 Figure 5 www.utvheaters.com 9/25/17 ICCH-BD-C-CFZ500 Ver.
- Page 11 CFMoto ZForce 500 Under Dash Compact Ice Crusher Heater. Figure 6 Figure 7 www.utvheaters.com 9/25/17 ICCH-BD-C-CFZ500 Ver.
- Page 12 CFMoto ZForce 500 Under Dash Compact Ice Crusher Heater. Figure 8 Figure 9 www.utvheaters.com 9/25/17 ICCH-BD-C-CFZ500 Ver.
- Page 13 CFMoto ZForce 500 Under Dash Compact Ice Crusher Heater. Figure 10 Figure 11 www.utvheaters.com 9/25/17 ICCH-BD-C-CFZ500 Ver.
- Page 14 CFMoto ZForce 500 Under Dash Compact Ice Crusher Heater. Figure 12 Figure 13 www.utvheaters.com 9/25/17 ICCH-BD-C-CFZ500 Ver.
- Page 15 CFMoto ZForce 500 Under Dash Compact Ice Crusher Heater. Figure 14 www.utvheaters.com 9/25/17 ICCH-BD-C-CFZ500 Ver.
- Page 16 CFMoto ZForce 500 Under Dash Compact Ice Crusher Heater. Figure 15 www.utvheaters.com 9/25/17 ICCH-BD-C-CFZ500 Ver.
- Page 17 CFMoto ZForce 500 Under Dash Compact Ice Crusher Heater. Figure 16 www.utvheaters.com 9/25/17 ICCH-BD-C-CFZ500 Ver.
- Page 18 CFMoto ZForce 500 Under Dash Compact Ice Crusher Heater. Figure 17 Included in your Ice Crusher Heater Kit are our custom CNC made aluminum Y fittings. These Y fittings install into the UTV’s cooling system as shown in the installation instructions. To assemble simply use Teflon sealing tape or pipe thread sealer on the supplied 5/8”...
