Page 1

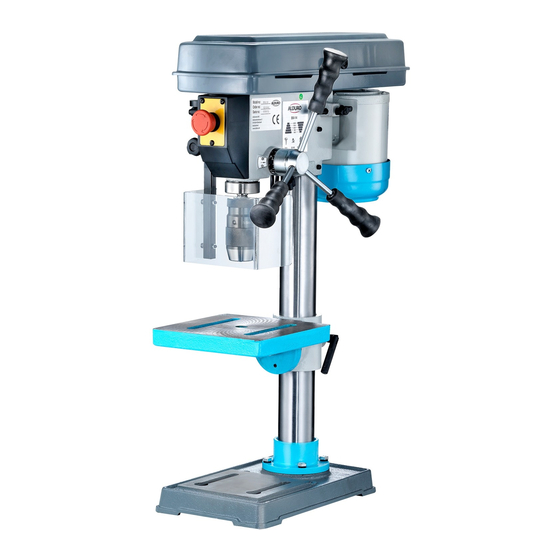

Alduro BM-14 • Drill press • Max 30kg workpiece weight • Up Ø 16 mm drilling in steel (S235JR) • 490 - 2510 min Safety Rules • Make sure your workpiece is secured • Do not change tools when spindle is moving •...
Page 2
Rules Safety Safety goggles No baggy clothing No open hair No jewellery Including watches and rings No gloves Terms On Off Switch Safety off Feed Lever Safety shield Spindle & tool Table...
Page 3
Shield Adjustment The shield can be moved by untightening this screw. Make sure do have the shield in place when drilling. Workpiece Holding For workpiece holding a vise must be used. It is not allowed to use the machine without the vise. Be carefull not to cut into the vise or the table.
Page 4
Tool Change Place a towel underneath the tool, then place the tool in the collet and tighten it while holding it with one hand. Aftwerwards tighten the tool holder with both hands. Make sure the tool is inserted as far as possible. Tools Wood Metal...
Page 5
Cutting Values Different materials and tool diameters require different cutting speed. Please use the following table to get the right settings. Chip Formation GOOD There are different kinds of chip. Illustrated bellow you can see which we want an which not. The right combination of speed and feed creates the correct kind of chip.
Page 6
Walk trough Alduro BM-14 • Select material and tool • Secure your material on the table • Insert and secure your tool • Check cuttings speed • Make sure all the safety measures are taken • Clothing • Jewellery • Safety equipment •...
Page 7
Safety Rules • Make sure your workpiece is secured • Do not change tools when spindle is moving • Never touch moving spindle • Always keep your hands away from the moving spindle • No towels near moving parts • No measuring or marking when machine is running •...
