Summary of Contents for EnjoyCool LINK

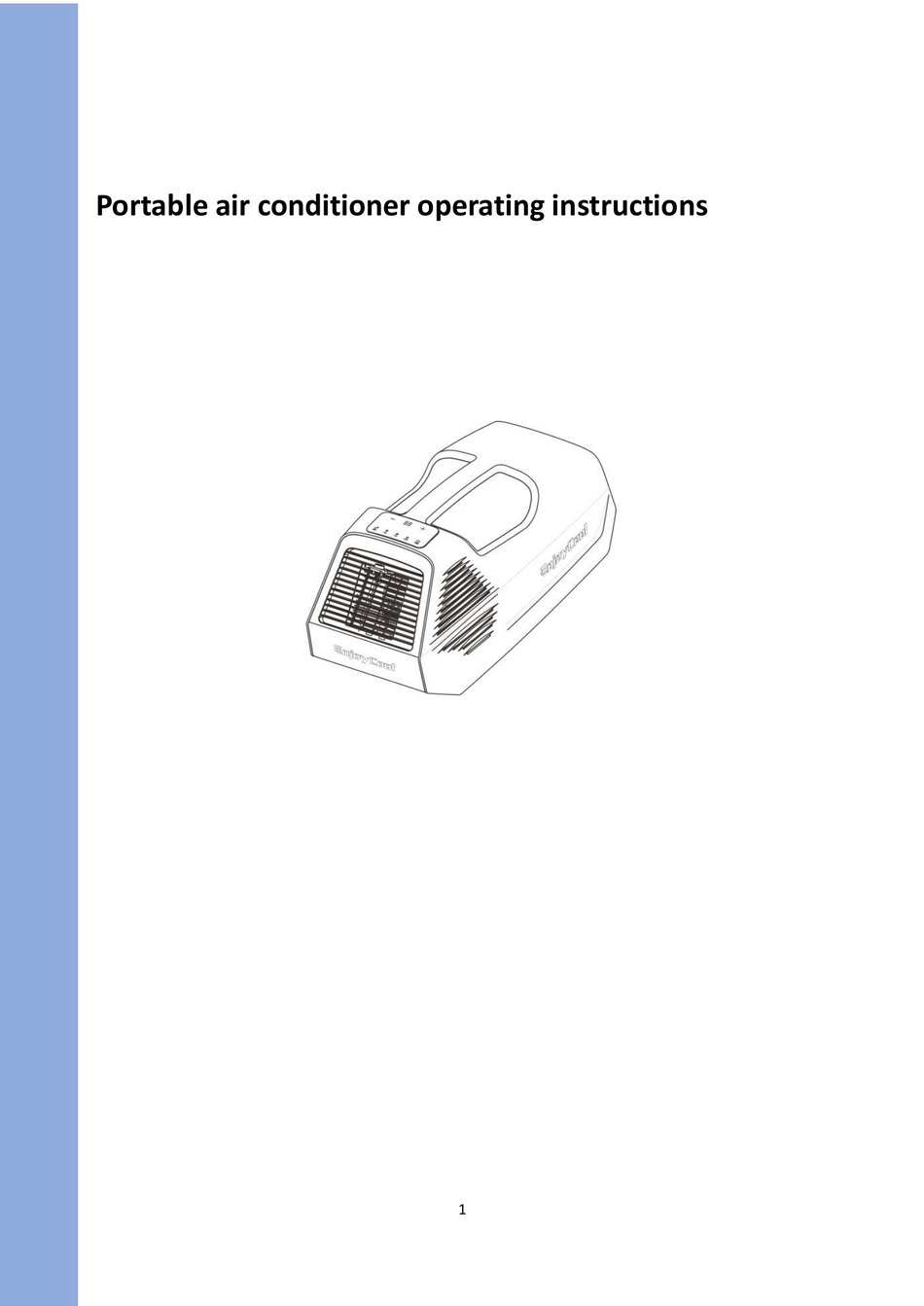

- Page 1 ⚫ Portable air conditioner operating instructions...
- Page 2 Catalogue Precautions for ..............03 Products ..............04 Control Panel - Remote Control Panel ............05 ...............06 Charging the battery via the mains .............09 Environment of ..............09 Tent placement ..............10 Connecting windows ..............11 Cold Air Extension Duct Installation...
-
Page 3: Table Of Contents
Instructions ............11 Troubleshooting ..............12 Cleaning and maintenance ..............12 Packing list ..............13 Environmental Checklist ..............14 Warranty Card ..............15 Precautions for use This manual contains important safety information on the proper use and maintenance of air conditioners to prevent personal injury or property damage to users and others，Please read the text with full understanding of the following (signs, icons) and be sure to observe the safety instructions provided. - Page 4 ➢ The product must be repaired or maintained by a professional and it is forbidden to disassemble, modify, repair or clean the internal components without permission； ➢ This product must not be operated by children, persons lacking physical, sensory or mental capabilities and adults who do not understand the contents of this manual；...
- Page 5 Note All images in this brochure are for reference only and your air conditioner may vary slightly depending on the model. Introduction to the main components ⚫ This product is equipped with a new 24v high performance compressor, a new double pipe exhaust system and a classic carry handle for easy mobility;...
- Page 6 Control Panel Remote Control Panel Power button ⚫ With the power on, press this button once to switch on when operating with the control panel and press and hold for 3 seconds to switch off. ⚫ With the power on, press this button once to switch on and once to switch off when operating with the remote control panel.
-
Page 7: Use
- button ⚫ Lower the temperature setting by 1°C per press of "-" (16°C Min), not valid in Power mode. Wind speed button ⚫ In cooling mode the "air speed" button switches the frequency and air speed to three different operating modes (F1 strong air speed mode, F2 medium air speed mode, F3 light air speed mode)；... - Page 8 ⚫ Power supply via adapter： ① Air conditioning power connectors ②Power adapters ③Home AC 100-240V（50-60Hz) Note: Use the adapter provided by the original manufacturer, do not use a third party adapter (to avoid unnecessary electrical hazards). ⚫ Powered by battery： ③Wiring (with Battery coupling illustration：①Docking position ②Rotate to a fixed position...
- Page 9 Accessory connections Connecting the drain Accessory connection to the upper connection drain The unit turns gaseous water in the air into a liquid, just like a conventional air conditioner, and it uses gravity to collect and discharge the water produced. Its interior can store condensed water for approximately hours, depending...
- Page 10 ⚫ Take care to keep it level in use. It is best to tilt it backwards by 5-10 degrees, not forwards or from side to side, otherwise condensate will leak out of the front, and bottom of the air conditioning unit. ⚫...
-
Page 11: Use
Battery charge status LED1 LED2 LED3 LED4 LED5 Power supply power ☼ ○ ○ ○ ○ 0%-20% ☼ ○ ○ ○ 20%-40% ☀ ☼ ○ ○ 40%-60% ☀ ☀ ☼ ○ 60%-80% ☀ ☀ ☀ Fully charged ☀ ☀ ☀ ☀... -
Page 12: Placement
When using outdoors, in rainy weather, please take special care to prevent the machine and batteries from getting wet and to keep the air inlet and exhaust open and free from foreign objects. Tips: 1. After a long and bumpy transport, please turn on the equipment for the first time or leave the equipment for a long time, and leave it flat for more than 30 minutes before turning it on and running. -
Page 13: Instructions
Use a piece of pearl cotton to fit the window, cut two 8cm diameter round holes with a hobby knife, spacing the two holes about 12cm apart, adjust the right angle and stick it to the window. Close the window and insert the two exhaust pipes of the air conditioner into the two holes. Exhaust pipe placement precautions：... -
Page 14: Troubleshooting
Troubleshooting Digital tube Fault conditions display code Indoor ambient temperature sensor failure Communication failure between main board and display board Undervoltage protection Overvoltage protection Cleaning and maintenance ⚫ Before cleaning and maintenance, the power must be stopped and disconnected； * Do not use flammable liquids or chemicals to clean the appliance and do not under any circumstances allow water to be used to flush the appliance as this could cause an electrical hazard；... -
Page 15: List
When not in use for a long period of time, unplug the battery and the mains cable, remove the extension hose, drain hose, adapter, cold air extension hose connector and exhaust hose connector and store in a cool, dry place out of direct sunlight and moisture. Packing list Serial Photos... -
Page 16: Checklist
Environmental Checklist Harmful substances Part name 六价铬 多溴联苯 多溴二苯醚 铅(Pb) 镉(Cd) 汞(Hg) (Cr+6) (PBBS) (PBDE) Compressors and ○ ○ ○ ○ accessories Pipework and ○ ○ ○ ○ ○ valves Motors ○ ○ ○ ○ ○ Power ○ ○ ○ ○... -
Page 17: Card
Warranty Card Product Date of name purchase Product type User Name Contact number Dealer (signature) Contact address Date of repair Fault description Maintenance staff Date of repair Fault description Maintenance staff Please ensure that the date of purchase is completed and stamped to ensure your rights, if not stamped and dated please keep the original invoice safe. - Page 18 costs arising from the repair . The user is responsible for his own postage and transportation costs. 3、Repairs will not be made free of charge even if the fault is within the warranty period, if it occurs due to the following circumstances: (1) Failure or damage caused by an accidental disaster or by man.
