Summary of Contents for SLS LAB BASICS SLS2600

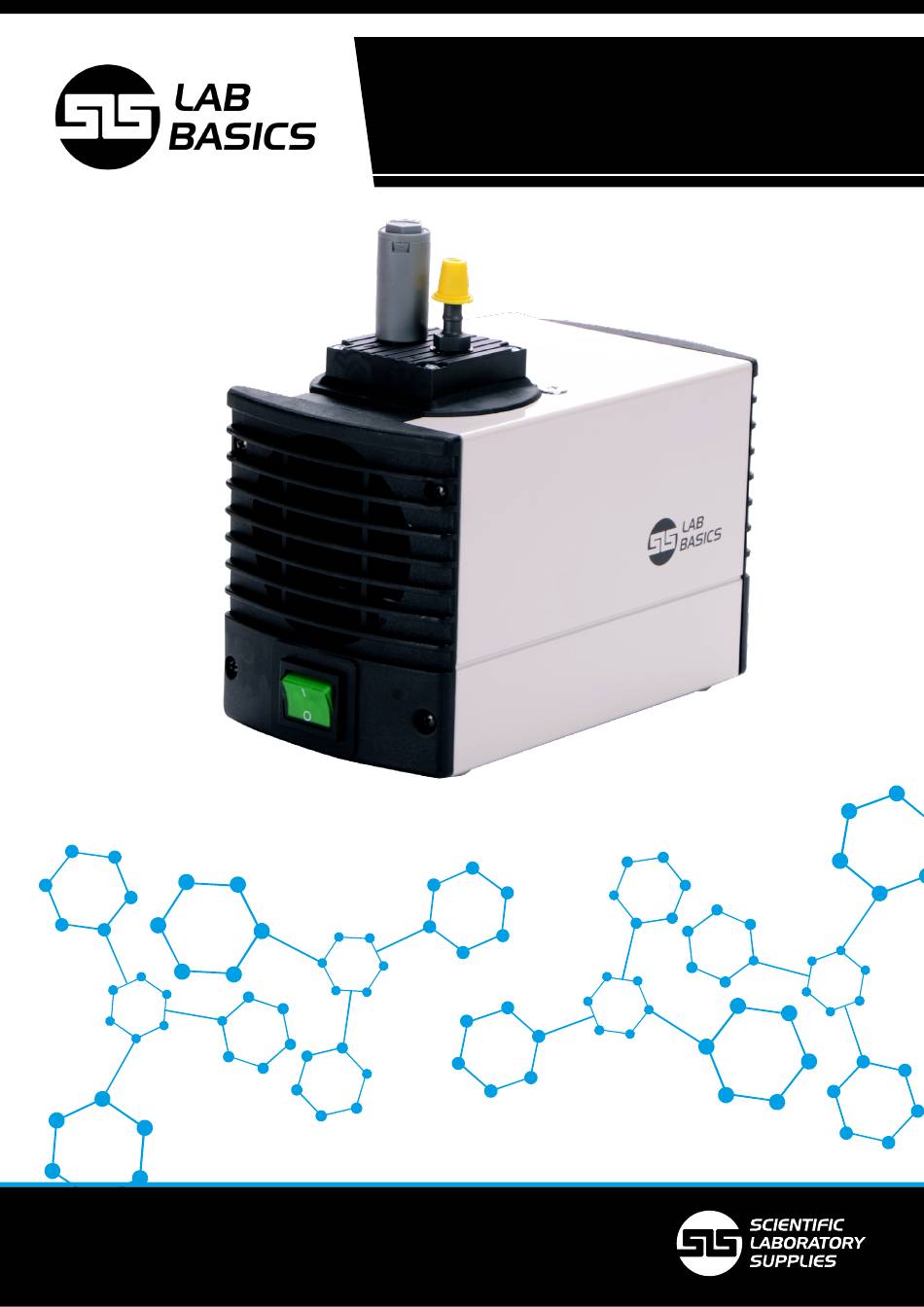

- Page 1 SLS Lab Basics Mini Vacuum Pumps Code: SLS2600/2602 User Manual United Kingdom: Northern Ireland: slsinfo@scientific-labs.com NI.sales@scientific-labs.com International: Republic of Ireland: slsexport@scientific-labs.com ROI.sales@scientific-labs.com...
-
Page 2: Table Of Contents
SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 Contents 1. About this document........................3 2. Use ..............................4 3. Safety ............................5 4. Technical Data ..........................7 5. Design and Function ........................10 6. Installation and connection......................11 7. Operation.............................12 8. Servicing............................14 9. Troubleshooting..........................17 10. Spare parts and accessories.....................19... -
Page 3: About This Document
SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 1 . About this document 1.1. Using the Operating Instructions The Operating Instructions are part of the pump. ► Carefully study the Operating Instructions before using a pump. ► Always keep the Operating Instructions handy in the work area. -
Page 4: Use
SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 2 . Use 2.1. Proper use The pumps are exclusively intended for transferring gases and vapours. Owner’s responsibility Operating parameters Only install and operate the pumps under the operating parameters and conditions and conditions described in chapter 4, Technical data. -
Page 5: Safety
SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 3 . Safety Note the safety precautions in chapters 6. Installation and connection, and 7. Operation. The pumps are built according to the generally recognized rules of technology and in accordance with the occupational safety and accident prevention regulations. - Page 6 SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 Standards The pumps conform to the Directive 2011/65/EU (RoHS2). The pumps conform to the safety regulations of the Directive 2014/30/EU concerning Electromagnetic Compatibility and the Directive 2006/42/EC concerning Machinery. The following harmonized standards have been used: •...
-
Page 7: Technical Data
SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 4 . Technical Data All pumps are secured against overheating with thermal switches and are equipped with a mains fuse. Pump materials SLS2600 Component Pump material Pump head Diaphragm EPDM Valve plates/sealings Table. 2... - Page 8 SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 SLS2600 Pneumatic performance Max. permissible operating pressure [bar g] Ultimate vacuum [mbar abs.] Delivery rate at atm. pressure [l/min]* Pneumatic connections Hose connection [mm] ID 4 Ambient and media temperature Permissible ambient temperature + 5 °C to + 40 °C...
- Page 9 SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 SLS2602 Pneumatic performance Max. permissible operating pressure [bar g] Ultimate vacuum [mbar abs.] Delivery rate at atm. pressure [l/min]* Pneumatic connections Hose connection [mm] ID 4 Ambient and media temperature Permissible ambient temperature + 5 °C to + 40 °C...
-
Page 10: Design And Function
SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 ufbau und Funktion Mini-Laborpumpen N 86.18, N 811.18 5 . Design and Function Aufbau und Funktion Aufbau N 86 K_.18 SLS2600/2602 1 Outlet (pressure side) Auslass (Druckseite) 2 Inlet (suction side) Einlass (Saugseite) -
Page 11: Installation And Connection
SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 6 . Installation and connection Only install and operate the pumps under the operating parameters and conditions described in chapter 4, Technical data. Observe the safety precautions (see chapter 3). 6.1. Installation ► Before installation, store the pump at the installation location to bring it up to room temperature. -
Page 12: Operation
SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 7 . Operation 7.1. Installation Before switching on the pump, observe the following points: Operational requirements Pump All hoses attached properly Fan openings not blocked Specifications of the power supply correspond with the data on the pump’s type plate. - Page 13 SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 Automatic starting can cause personal injury and pump damage When the operation of the pump is interrupted by the WARNING thermal switch, the pump will restart automatically after cooling down. ► After triggering of the thermal protection or in the event of power failure, remove the pump’s mains plug from the...
-
Page 14: Servicing
SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 8 . Servicing 8.1. Servicing Schedule Component Servicing interval Pump Regular inspection for external damage or leaks Filter (Accessory) Replace if it is dirty Diaphragm and valve plates/sealings (valve plates) Replace at the latest, when pump output decreases Table. - Page 15 Instandhaltung Mini-Laborpumpen N 86.18, N 811.18 Gesundheitsgefährdung durch gefährliche Stoffe in der Pumpe Gesundheitsgefährdung durch gefährliche Je nach gefördertem Stoff sind Verätzungen oder Stoffe in der Pumpe Vergiftungen möglich. WARNUNG Je nach gefördertem Stoff sind Verätzungen oder Bei Bedarf Schutzausrüstung tragen, z. B. Vergiftungen möglich.
- Page 16 SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 Changing the valve plates/sealings 1. Remove the valve plates/sealings (fig. 4 (7) from the intermediate plate (2). 2. Check that the valve seats, the head plate (3) and intermediate plate (2) are clean. If scratches or distortion are evident on these parts they should be replaced.
-
Page 17: Troubleshooting
SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 9 . Troubleshooting Extreme danger from electrical shock! ► Disconnect the pump power supply before working on the pump. WARNING ► Make sure the pump is de-energized and secure. ► Check the pump (see Tab. 9 to 12). - Page 18 SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 Flow rate, pressure or vacuum too low The pump does not achieve the output specified in the Technical data or the data sheet. Cause Fault remedy Connections or lines completely or Check connections and lines.
-
Page 19: Spare Parts And Accessories
SLS Lab Basics Mini Vacuum Pumps SLS2600/2602 10 . Spare parts and accessories 10.1. Spare parts A Service Set contains all spare parts needed for one complete service. ► For pump range SLS2600/2602: 1 diaphragm, 2 valve plates/sealings. Service Set for pump type: Order-No.:... - Page 20 SLS Lab Basics Mini Vacuum Pumps Clarity in Servicing Our service options: Fault Find & Fix On-Site Repairs With service prices starting at just £17.95, For an agreed fee, the SLS Service Centre will dispatch an engineer to your site to the Fault Find &...
