Summary of Contents for skilleye SEC-8P3562IRT

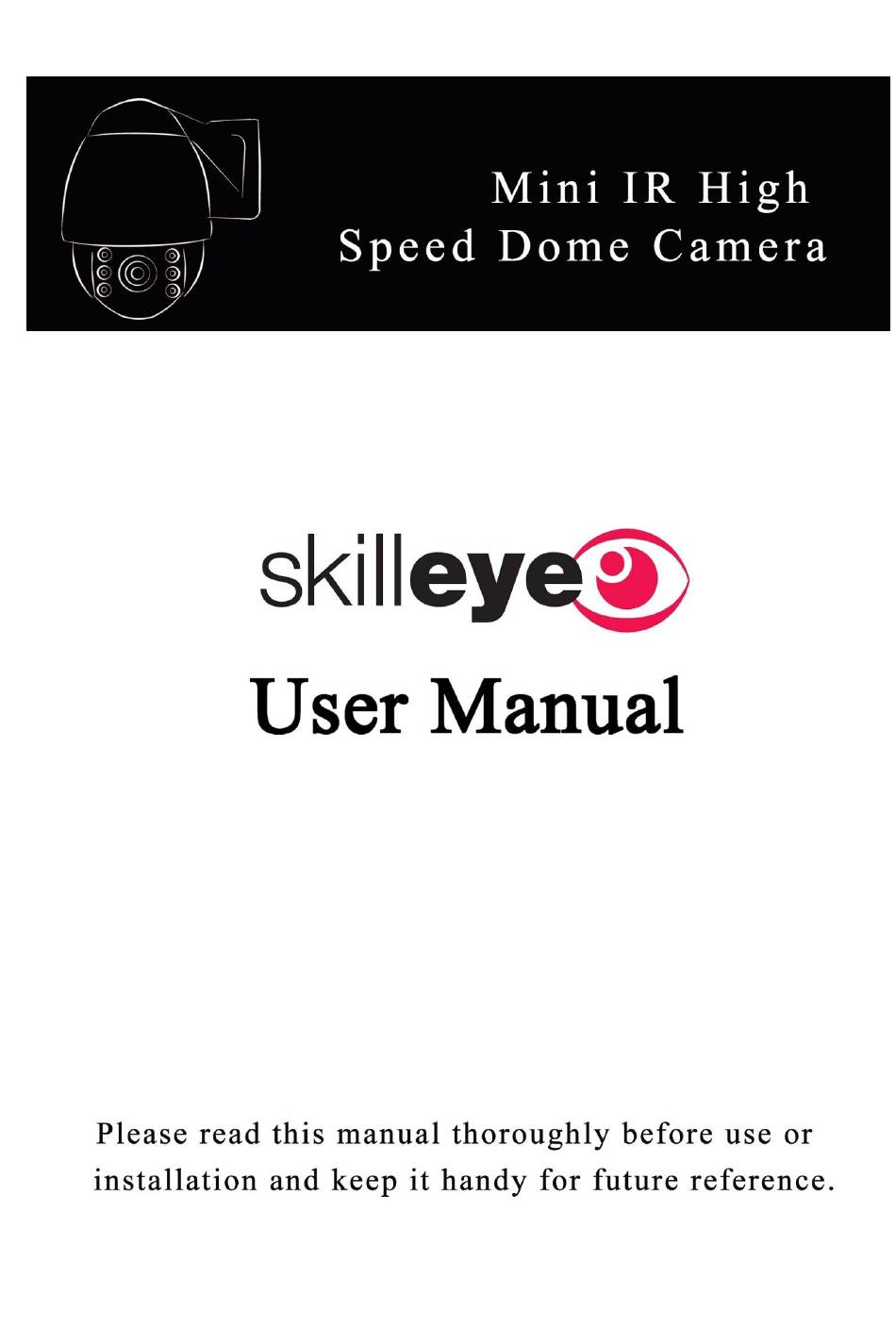

- Page 1 SEC-8P3562IRT...
- Page 2 WARNINGS AND CAUTIONS WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH VENTILATION GRILLS OR OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user the presence of non-insulated “dangerous voltage”...
- Page 3 PRECAUTIONS: 1. Persons without technical qualifications should not attempt to operate this dome device before reading this manual thoroughly. 2. Remove any power to the dome before attempting any operations or adjustments inside the dome cover to avoid potential damage to the mechanism. 3.
- Page 4 IMPORTANT SAFEGUARDS 1. Read these instructions before attempting installation or operation of dome device. 2. Keep these instructions for future reference. 3. Heed all warnings and adhere to electrical specifications. Follow all instructions. 4. Clean only with non abrasive dry cotton cloth, lint free and approved acrylic cleaners. 5.
-
Page 5: Table Of Contents
INDEX 1 Product Introduction ...................... 1 1.1 Package Contents ...................... 1 1.2 Specification ....................... 2 1.3 Performance Features ....................3 1.4 Function Description ....................4 2 Installation ........................6 2.1 Product Dimension ..........Errore. Il segnalibro non è definito. 2.2 Bracket Dimension ..................... 7 2.3 Installation ............ - Page 6 * Indicates the functions with default protocol, it might not function by using other protocols ※ Indicates the optional functions, only with certain mode...
-
Page 7: Product Introduction
1 Product Introduction 1.1 Package Contents TVI IR speed dome Wall mount bracket Power supply Screws kits User manual... -
Page 8: Specification
1.2 Specification Horizontal Rotation Speed 0.02°-280°/s Tilt Rotation Speed 0.02°-160°/s Horizontal Rotation Range 360° Tilt Rotation Range 93° Auto Flip Horizontal 180°, Vertical 93° Ratio Speed Support Auto control IR LED IR Testing Time 2-15s selectable Ambient Light Testing 0-50 grades IR Illumination On 0-25 grades selectable IR Output Power... -
Page 9: Performance Features
1.3 Performance Features PWM function. Intelligent IR illumination & power consumption is variable, dependant the zoom factor. 3D allocation. That screen coordinate location and zoom local are performed at the same time can be available. Privacy masking. 24 privacy masking areas can be random set (module support). ... -
Page 10: Function Description
1.4 Function Description Auto-adaptive to Protocol and Module The dome can auto-adaptive to the multi protocol and most of the module without changing the DIP switch. Privacy Masking In the monitoring scope, areas that users can’t or aren’t willing to make show in the screen of the monitor can be set as privacy protected area (area masking), such as area where customers enter the password in monitoring system of bank or some doorway. - Page 11 wash out to white. The camera will adjust the iris so that the target in the sensitive area will be properly exposed. Iris Control Factory default is automatic camera aperture, in mode of which camera senses changes in ambient light through moving and adjust automatically lens aperture to make the brightness of output image stable.
-
Page 12: Installation
2 Installation 2.2 Bracket Dimensions 2.2.1 Wall Mounted Bracket 2.2.2 Corner Mounted Bracket 2.2.3 Pole Mounted Bracket... - Page 13 2.2.4 Ceiling Mounted 2.3 Installation of Brackets. 2.3.1 Wall Mounted Fig 1 Installation conditions: This wall mounted dome can be used on walls whose thickness and sturdiness should be enough to install expansion bolt outdoors, or be used with an electrical box or mounted to a stud indoors.
- Page 14 through it. Fig 3 2.3.2 Corner Mounted Fig 11 Installation conditions: Corner mounted dome can be used in the hard wall structure with an angle of 90° whose thickness should be enough to install expansion bolt in indoor and outdoor environment. The wall can bear at least 4 times the weight of the dome.
- Page 15 Fig 12 b. As shown in fig 13, use M8 screw nut to fix the base of corner mounted on the wall with all cables through the center holes of the corner mounted, marine glue and bracket. Enough wiring length should be left. Fig 13 c.
-
Page 16: Installation
Fig 15 Installation conditions: Pole mounted dome can be used in the hard pole structure in indoor and outdoor environment whose diameter should match the installation size of stainless hose clamps. Factory default is 6 inches stainless hose clamps (fit φ130-152mm pillar). The pole structure can bear at least 4 times the weight of the dome. - Page 17 Fig 18 Installation conditions: Ceiling mounted dome with thick pole can be used in the hard ceiling structure whose thickness should be enough to install expansion bolt in indoor and outdoor environment. The ceiling can bear at least 4 times the weight of the dome. Install the base of ceiling and boom: a.
-
Page 18: Connection
Fig 21 Note : If the dome is used in the outdoor conditions, after using enough raw materials to wrap the thread at the upper end of boom, tighten the boom on the base of ceiling. Use the silica gel around the joint sleeve and connector of the boom to be sure water proof 2.4 Connection RS485 Connection... -
Page 19: Instruction
3. Instruction 3.1 Power On Action IR SPEED DOME When initializing the system, the operation as left figure will run in 2 seconds. PROTOCOL PELCO-D/P When restoring out-of-factory settings, please wait patiently. COMM 2400.N.8.1 The operation as left figure will run in 1 minute. DOME ID MODULE This left figure means initializing the pan/tilt motor of speed... -
Page 20: Special Function
Press ZOOM+ button to make the lens closer and magnify the scene. Focus After FOCUS- button is pressed, the object in vicinity will become clearer while the object far away will become ambiguous. After FOCUS+ button is pressed, the object far away will become clearer while the object in vicinity will be ambiguous. -
Page 21: Screen Character Operation
3.4 Screen Character Operation Call preset 95 to enter the OSD, call preset 94 to exit the OSD. Up or Down: Move the option of the OSD, change the value on the OSD. Right: Enter the option, select the item or confirm. ... -
Page 22: Osd Menu
4 OSD Menu... -
Page 23: System
4.1 System <DOME> <MAIN MENU> <PRESET> When preset 90 is called form a PTZ controller the <SCAN> main menu will appear overland on the video output of the <SYSTEM> <GUARD TOUR> camera.The main menu lists several sub-menu which each <DOME> <PATTERN>... -
Page 24: Preset
4.2.1 Preset PRESET NO: Select the preset number needing to be operated, whose range is 001-220. CALL PRESET: Call the preset number edited. <SET PRESET> Entering SET PRESET displays the content as left <PRESET> figure. Call preset 1 to save and call preset 2 to back.Because some presets are used to realize special functions, they can not be set and PRESET NO called normally. -
Page 25: Pattern
<GUARD TOUR> <GUARD TOUR> ID: The tour sequence of guard tour group. Its range is 1-16. ID POINT TIME SPEED POINT: The preset of guard tour. Its range is 01-64 settable. TIME: The default time of all points is 05s. Its range is 60s. -
Page 26: Other
Remark: It is recommended that you set the size to at least twice the size of the object (height and width). The tilt angle at which you can set the mask is equal to or less than 45 degrees. <DISPLAY> 4.2.6 Other ZOOM ... -
Page 27: Language
ZOOM: It can be selected as ON or OFF. P AND T: It can be selected as ON or OFF. ACT: It displays the current action, such as set preset, call preset, 360°scan. ON or OFF can be selected. ... -
Page 28: Appendix Ⅱ Clean Transparent Cover
substations), measure of installation of additional high power lightning protection equipment and lightning rod must be taken. · Lightning protection and grounding of outdoor devices and lines must take the lightning- protection requirements of buildings into consideration, and comply with the related national standards and industry standards. - Page 29 As shown in fig. 26 and fig. 27 is simplified connection, but the distance of part "D" shall not beyond 7 meters. Fig 26 Fig 27 2.2 120Ω terminal resistance is connected as shown in fig 27. 120Ω terminal resistance is available in the circuit board, which is on the power board below the mounting bracket.
-
Page 30: Appendix Ⅲ Exception Handling
Issue Possible Reason Solution After power is applied, Cable harness is improperly Verify that the orientation of the connected connector input there is no action Input power voltage is too low Verify the voltage of the input power (self-test) and no video image. Power supply does not work Change a new power supply Self-test is normal, but... -
Page 31: Copyright Statement
Copyright Statement This copyright merely belongs to the manufacturer. Without permission, please don’t plagiarize or copy the contents of this book in any form or by any means. The company follows the policy of continuous development. Therefore, the company reserves the right to modify or improve the products described in this manual without notice.
