Summary of Contents for Tilvision HC-007
- Page 1 Supports 2.4G network only WiFi Video Doorbell Ref: HC-007 Instruction manual...

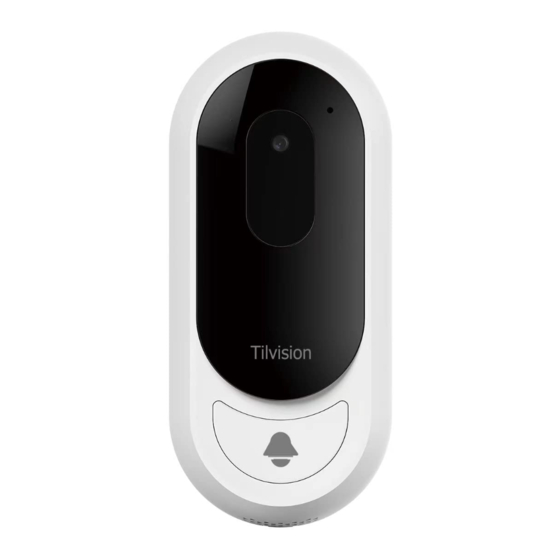

- Page 2 1. Names For Parts & Product Size 33mm/1.3in 54mm/2.13in Camera LED indicator Calling button Speaker Battery compartment Reset button - 01 -...
-
Page 3: Product Features
2. Product Features •100% wireless & battery powered. •Two-way audio talking with live video. •Take a photo when push button is pressed,phone will get a notification too. •Unlimited photos can be saved in cloud server,no monthly fees. •Can be shared with maximum 8 family members(including administrator). - Page 4 Fix it on a door with double-sided adhesive tape. Fix mounting plate Attach doorbell camera on a wall with screws. to the mounting plate (from top to bottom). - 03 -...
- Page 5 4. Where to download the app ① Scan below QR code. ② Download “Tilvision” app in App Store or Google Play. ③ Scan QR code on giftbox. Once the App is installed,please check the App setting on the phone and allow all push notifications,then you won’t miss any visitor.
- Page 6 5.Register a new account and login You need to create a new account and login. 09:39 KB/s - 05 -...
- Page 7 6. How to add device ① Insert 2 x AA alkaline batteries into device. ② Open the app,click button “+” at the bottom,then click button “Setup Device”. 09:39 09:39 KB/s KB/s - 06 -...
- Page 8 ③ Click the product image that you’ve bought. ④ Pick up the device,hold and keep pressing “reset” button on the back for about 5 seconds until you hear “BEEP” sound.Blue indicator is flashing now.Then click “Next”. 09:39 09:39 KB/s KB/s - 07 -...
- Page 9 ⑤ Input your wifi password,click “Next”,then click “Confirm”. 09:39 09:39 KB/s KB/s Input wifi information - 08 -...
- Page 10 ⑥ In the WLAN, select network “Bell_xxxxxx”. ⑦ Reopen Tilvision app and wait,until the device is connected to wifi. 09:39 09:39 KB/s KB/s - 09 -...
- Page 11 7. How to share devices: Method 1: Step 1: Administrator clicks “Device Sharing” inside the app, then input the user name that you’d like to share the device with. 09:39 09:39 KB/s KB/s - 10 -...
- Page 12 Step 2: The family member click “Scan QR Code” on the app,and scan the shared QR code,the device will be added. 09:39 09:39 KB/s KB/s - 11 -...
- Page 13 Method 2: Step 1: Administrator clicks “Member management” inside the app, and click “Add” on the top right corner,then input the user name that you’d like to share the device with. 09:39 09:39 KB/s KB/s - 12 -...
- Page 14 09:39 KB/s - 13 -...
- Page 15 Step 2: The family member click “Search” on the app,then click “+” to add shared device. Note: The smart phone and shared device must be connected to same wifi router. 09:39 09:39 KB/s KB/s - 14 -...
-
Page 16: Interface Guide
8. Interface guide 09:39 KB/s Device name Device state Device ID Events Click to add device - 15 -... - Page 17 09:39 KB/s Device setting Voice control Press to talk Snapshot Mute Exit Take video - 16 -...
- Page 18 9. How to pair with indoor wireless doorbell chime ① Plug the doorbell chime into a socket (Voltage AC 100-240V/50-60Hz), it will ring to indicate it’s under pairing status. ② Press calling button on WiFi video doorbell to link the doorbell chime within 15S, the doorbell chime will ring to confirm connection completed.
-
Page 19: Specification
10. Specification Network WIFI802.11b/g/n(2.4GHz) 433 frequency 433.92MHz+100KHz 100m for 433 frequency and 50m Operating range for wifi network in the open air area. WiFi video doorbell Power supply 2 x 1.5V AA batteries (not included) Audio Half duplex Camera 640 x 480, 90 degrees Operating system Android4.4, iOS8.0 or above Water-proof...
