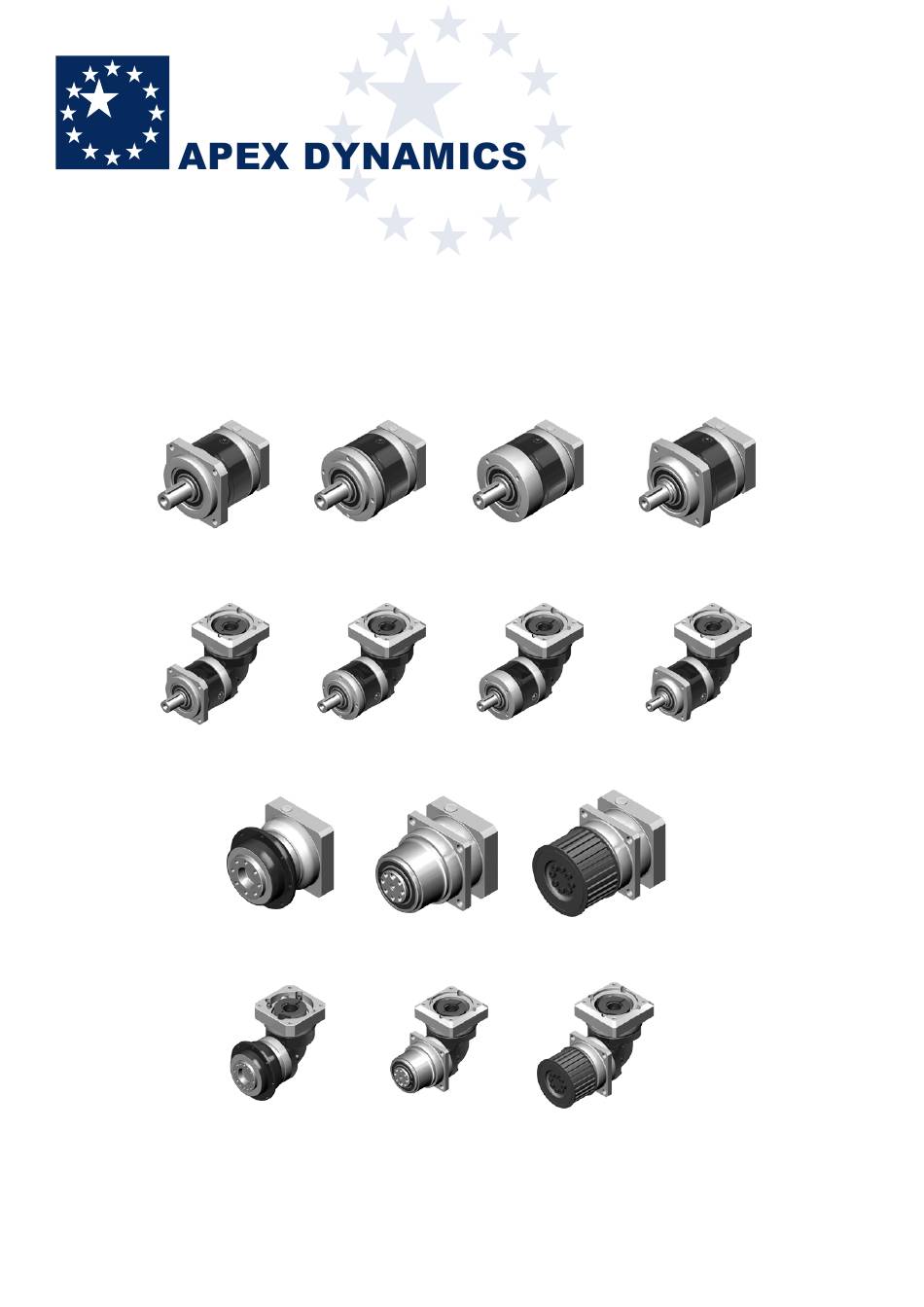

Page 1 PAII PEII PGII PSII PAIIR PEIIR PGIIR PSIIR PL Pully PLR Pully Apex Dynamics BV The Netherlands Belgium Churchilllaan 101 Tel. : +31 (0)492 509 995 Tel. : +32 (0)3 808 15 62 NL-5705 BK Helmond E-mail: sales@apexdyna.nl E-mail: sales@apexdyna.be The Netherlands Web : www.apexdyna.nl...
Page 2: Table Of Contents
Table of content 1. Explanation of this document 1.1 Symbols 1.2 Warning 2. Safety 2.1 Intended use 2.2 Qualified personnel 2.3 General safety instructions 2.4 Standards and Guidelines 3. Product description 3.1 Identification plate 3.2 Ordering code 4. Storage, packaging, transport and disposal 4.1 Storage 4.2 Packaging and transport 4.3 disposal 5.
Page 3: Explanation Of This Document
1. Explanation of this document This user manual describes how to handle the Apex Dynamics planetary gear- boxes during assembly and commissioning. This manual applies to the following series: PAII, PAIIR, PEII, PEIIR, PGII, PGIIR, PSII, PSIIR, PD, PDR, PL en PLR This manual contains important information regarding the use and maintenance of the gearboxes.
Page 4: Safety
2. Safety This chapter describes the safety regulations that must be observed for the safe and danger-free use of planetary gearboxes. Possible sources of danger and necessary safety regulations are also indicated. 2.1 Intended use Planetary gearboxes are intended for industrial applications. The specifications as described in the factory documentation must not be exceeded.
Page 5: Standards And Guidelines
2.4.3 REACH According to the definitions of the European directive (EC 1907/2006 / EU) regarding REACH, the planetary gear units that Apex Dynamics imports and / or manufacters in the EU are not subject to registration. 2.4.4 ATEX Apex Dynamics Inc., declares that the design, manufacture and inspection of...
Page 6: Product Description
5 sizes van 40 tot 160mm • Backlash 10, 12, en 14 boogminuten • Protection class IP65, Lifetime lubricated • Operating temperature 0°C ~ +90°C For detailed specifications, we refer to the product documentation and / or website of Apex Dynamics. Page 6 of 13...
Page 7: Identification Plate
APEX DYNAMICS, INC. Model NO: PEII090-S1 S/N: 1711106246 Ratio: 010:1 Backlash: ≤ 6 arcmin 3.2 Ordering code The order code for an Apex Dynamics gearbox is structured as follows: PEII090-010-S1-... /SERVOMOTOR Series Size Ratio Output shaft S1 = smooth shaft, without keyway...
Page 8: Storage, Packaging, Transport And Disposal
4. Storage, packaging, transport and disposal 4.1 Storage The gearboxes must be stored dry and in original packaging. Storage temperature, -30 ° C ~ + 60 ° C. Try to keep the storage time as short as possible. 4.2 Packaging and transport The gearboxes are packed in polystyrene or polyurethane foam filling, which means that they are fully protected against transport damage during normal use.
Page 9: Assembly And Commissioning
• Mounting instructions in other languages can be downloaded on: www.apexdyna.nl or www.apexdyna.com. • Below a table is shown with the recommended tightening torques for mounting bolts. Apex Dynamics uses quality class 12.9. Strength 8.8 Strength 10.9 Strength 12.9 Width across...
Page 10: Mounting The Gearbox In An Application
5. Assembly and commissioning 5.3 Mounting the gearbox in an application The gearboxes from Apex Dynamics can be installed in any position. The following must be taken into account when mounting the gearbox: • Always use the right tools and aids.
Page 11: Maintenance
6. Maintenance 6.1 General All gearboxes from Apex Dynamics are lubricated for life, replacement / additional lubricant is therefore not necessary within the specified lifespan. The gearboxes are maintenance-free, to guarantee the service life it is important to regularly check the gearboxes.
Page 12: Malfunctions
7. Malfunctions 7.1 General Contact Apex Dynamics BV in the following situations: • Irregular or extreme noise • Temperature increase • Leakage We always need the following information for a malfuntion message: • Full type number, with serial number and mounted motor.
Page 13: Service
A gear unit is made up of various components that have been run into each other, so replacing or overhauling individual components is not an option. 8.2 Contact data For questions and / or problems you can contact Apex Dynamics BV. Company Apex Dynamics BV...
