Kumio 1.5CU.FT Instruction Manual

Fully automatic washing machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

INSTRUCTION MANUAL
1.5CU.FT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1.5CU.FT and is the answer not in the manual?

Questions and answers

Summary of Contents for Kumio 1.5CU.FT

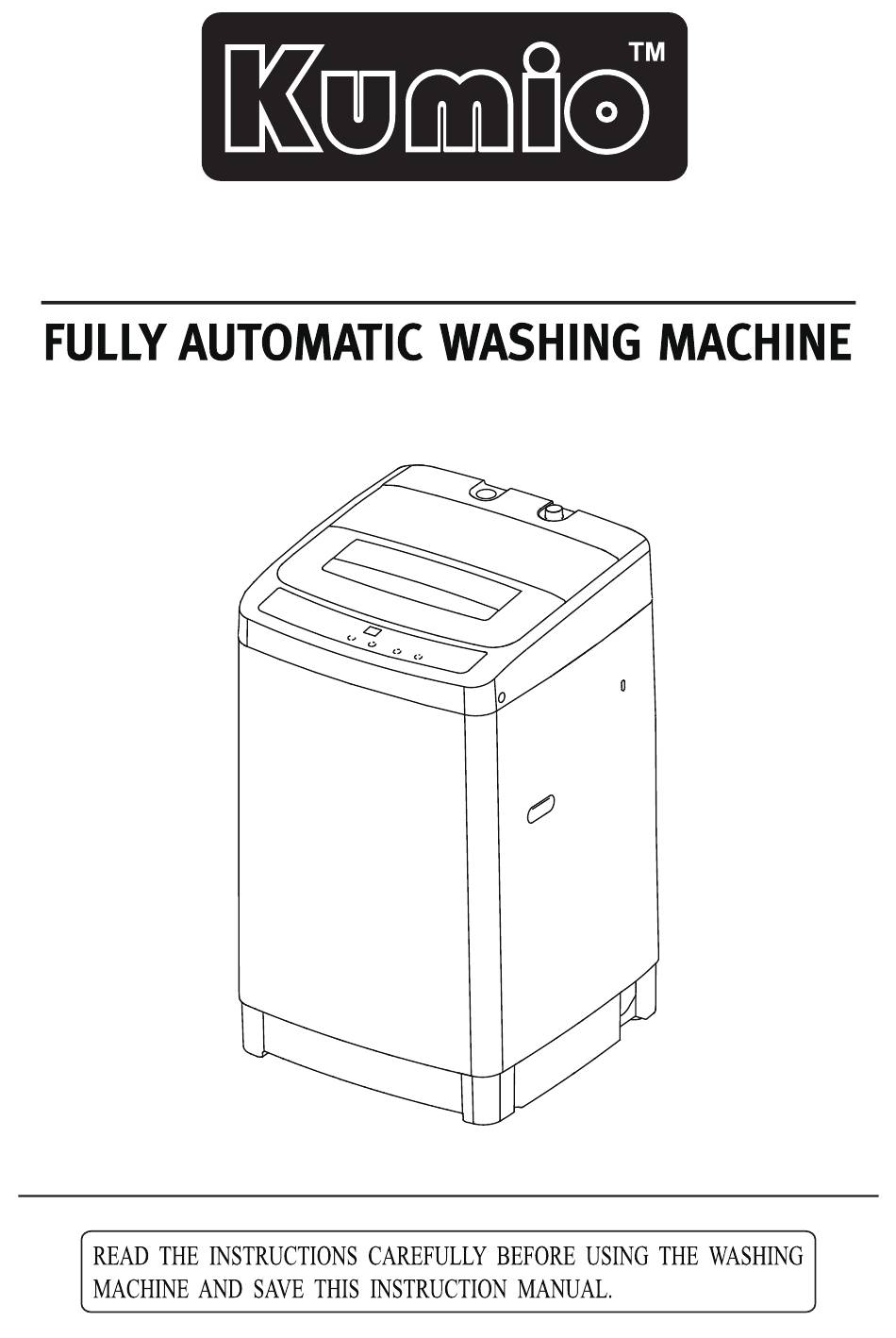

  • Page 1 INSTRUCTION MANUAL 1.5CU.FT...

  • Page 2: Table Of Contents

    Contents Name of all components Suggestions Name of all components Accessories Installation instructions Laying the machine Connection of the inlet/drain hose Power Cord Connection Operating instructions Control panel Operation Safety warning Maintenance Maintenance Troubleshooting Specification Specifications Warranty warranty...
  • Page 3 APPLIANCE SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others.

  • Page 4: Suggestions

    Suggestions 1. Low foam detergent powder is recommended. 2 . Please operate it under 0 ~ 40 , as extra-high or extra-low ambient temperature may cause malfunction. 3 . If the washing machine has been stored under 0 , it can be used after being placed under room temperature for about 4 hours to avoid machine damage due to residual ice in the washing machine.

  • Page 5: Name Of All Components

    Name of all components Water Top lid inlet valve Up drain Detergent box pipe Drain Frame pipe hook Filter Handle Inner tub Bleach injection Pulsator Back cover Control panel Power cord Body Base Cover for drain pump Drain pipe joint Adjustable foot Accessories Washing machine (1)

  • Page 6: Laying The Machine

    Laying the machine Insert the mice-proof plate into the washing machine base 2. Take out the mice-proof plate 1. Remove the plastic accessory at the top of the machine. as below picture from the bottom of washing machine before use. 4.

  • Page 7: Connection Of The Inlet/Drain Hose

    Connection of the inlet/drain hose Connection of the inlet hose 1. Select the appropriate type of outlet as shown in the figure. 2. Before installation, run water through both faucet and inlet hose, to get rid of particles in the water line that might clog the inlet valve screen. 3.

  • Page 8: Power Cord Connection

    Connection of the drain hose (some modes have been connected) 1. Press down the fix ring, 2. Press down the fix ring, and 3. This machine equips with upper drainage, then push it to the drain outlet. it can drain even if drain hose is hung up, and hitch it over the drain Clasping the fix ring to make but the hose should not be positioned over...

  • Page 9: Control Panel

    Control panel Program Intelligent 05.Soak&Wash Set the water level automatically Soak for certain time before according to the load of laundry. washing. 02. Heavy 06. Single Wash To wash the coverlet, jeans and Only for washing. other big clothes. 07. Single Spin 03.

  • Page 10: Operation

    Operation Install the water inlet hose Press POWER ON/OFF Plug-in power. and turn on the tap. to turn on the machine Press PROGRAM to select the desired program. Press WATER LEVEL to set the water level. The drain pipe should be put down or hung up Press START/PAUSE to start.
  • Page 11 Make sure any blanket placed underneath the Water-proof clothing such as raincoats should device does not block the bottom opening. not be washed in order to avoid abnormal vibrations of the device or damage to the clothing. Bottom opening Blanket Do not place the washing machine in a damp Never use water over 50℃.

  • Page 12: Maintenance

    Maintenance Clean the filter in the inlet valve Clean the filter in the inlet valve regularly in order to prevent it from clogging Take off the inlet hose and Clean the valve filter with Reinstall the valve filter and take out the valve filter. a brush.

  • Page 13: Troubleshooting

    Cleaning the lint filter 2Pull 1Press Reinstall the filter. If there is any damage to the filter, replace it immediately. Remove the filter from Pull upwards to remove the filter cover. Clean the filter. and rinse it thoroughly. Troubleshooting Malfunction phenomenon Reason The washing machine will start with the spin process in 1.
  • Page 14 Trouble Shooting Method For some troubles, the machine buzzer will ring and alarm, and the indicator will flash. Indicator Light Troubles Possible Cause Solution The plug is badly connected Connect the plug properly or No indicator to the socket or the switch is activate the switch not activated.

  • Page 15: Specifications

    Specifications Rated power 120V~ 60Hz Wash/spin capacity 5.0kg Rated wash input power 300W Rated spin input power 250W Water pressure 0.03~0.85 MPa Net weight 26kg Product dimension 515x535x860mm - 13 -...
  • Page 16 LIMITED TWO-YEAR WARRANTY This warranty is available to consumers only. You are a consumer if you own a Kumio fully automic washing machine that was purchased at retail for personal, family or household use. Except as otherwise required under applicable law, this warranty is not available to retailers or other commercial purchasers or owners.
