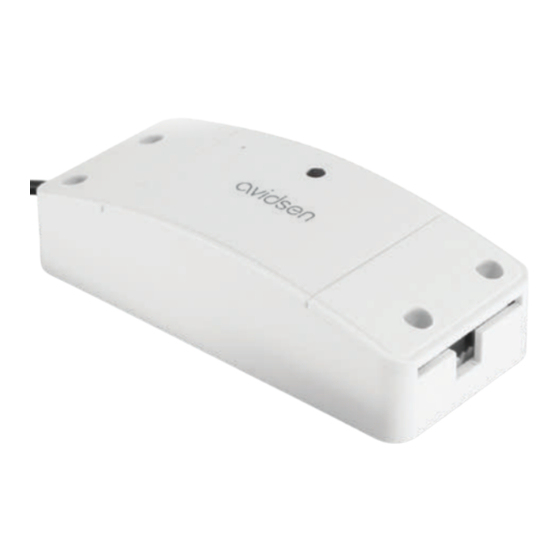

- Page 1 HOME GATE UNIVERSAL CONNECTED CONTACTOR Ref.127041 www.avidsen.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS A - SAFETY INSTRUCTIONS 1 - OPERATING PRECAUTIONS 2 - WARNING 3 - MAINTENANCE AND CLEANING 4 - RECYCLING B - PRODUCT DESCRIPTION 1 - KIT CONTENTS 2 - CONNECTED CONTACTOR C - INSTALLATION 1 - INSTALLATION ON SLIDING GATE 2 - INSTALLATION ON SWING GATE 3 - GARAGE INSTALLATION D - WIRING... - Page 3 UNIVERSAL CONNECTED CONTACTOR F - USING THE PRODUCT 1 - USING THE PRODUCT VIA THE APPLICATION 2 - USING THE PRODUCT WITH GOOGLE HOME 3 - USING THE PRODUCT WITH AMAZON ALEXA 4 - SCENARIO AND AUTOMATION 4.1 SCENARIO 4.2 CREATING AN AUTOMATION G- TECHNICAL AND LEGAL INFORMATION 1 - TECHNICAL CHARACTERISTICS 2 - RADIO CHARACTERISTICS...
-
Page 5: A - Safety Instructions
Care should therefore be taken to ensure that the motor drive installation is protected by the equipment required for this purpose. The Avidsen company may not be held liable for any injury or property damage caused by the triggering of the motor drive by the contactor. -
Page 6: B - Product Description
UNIVERSAL CONNECTED CONTACTOR B - PRODUCT DESCRIPTION 1 - CONTENTS OF THE KIT Grommet Connected contactor Screw + Nut Double-sided tape Passive magnet Double-sided tape Pre-wired magnet with extension Quickstart Magnet brackets This product can operate any gate and garage door motor drive, provided said motor drive is equipped with a dry contact control input. -
Page 7: C - Installation
UNIVERSAL CONNECTED CONTACTOR C - INSTALLATION Before the device is permanently installed, make sure it is within WiFi range of your router. If it is installed outside WiFi range, you should install a WiFi repeater to boost the signal. This product should not be installed outdoors. Position it in the housing of the gate motor drive or in a waterproof junction box. -
Page 8: D - Wiring
Put the circuit breaker in OFF position before making the 230V connection. Do not run the magnet and control cables in direct proximity to 230V cables. Risk of signal disruption due to induction. Dry contact input Avidsen HomeGate Gate or garage door motor drive 230V AC... -
Page 9: E - Connection
CREATING AN ACCOUNT Once the contactor is connected, follow the instructions below to pair it. Download the Avidsen Home app from the Android Play Store or Apple App Store. Launch the app and log in if you already have an account. -
Page 10: Connecting The Contactor
UNIVERSAL CONNECTED CONTACTOR E - CONNECTION Make sure the contactor is connected and its blue indicator light is flashing. Otherwise, press the reset button for 5s so that the blue indicator light starts flashing. Select your 2.4GHz WiFi network (note: your smartphone must be connected to the WiFi network to which the plug will be connected), enter your network password and press suivant (next). - Page 11 2.4GHz frequency then click on Continue. You can now control your Avidsen contactor from your smartphone. You can rename it by clicking on the small pencil to the right of the device name (garage by default).
-
Page 12: F - Using The Product
(closed or not closed). 2 - USING THE PRODUCT WITH GOOGLE HOME Note: the name you give your Avidsen Home devices is the one that will be recognised by Google Assistant. Example: if you have a contactor named “gate”, “OK Google, open gate”... -
Page 13: Using The Product With Google Home
Paramètres (Settings) then Assistant and the Play Store or Apple store. finally Contrôle de la maison (Control from Your devices need to be paired in the Avidsen Home home). app to be controlled with Amazon Assistant. They - In the “Appareils (Devices)” tab, press “Ajouter must be connected on the same WiFi network. -
Page 14: Using The Product With Amazon Alexa
Skills et Jeux (Skills and Games). my camera: - Search for Avidsen Home in the list of skills or use Recherche (Search) at the top right. Click on at the bottom of the screen, then on - Select the Avidsen Home Skill and activate for use. -
Page 15: Creating An Automation
You can change the background image here The automation system in the Avidsen Home app Set the actions to be performed by allows you to group devices and actions which will clicking here... - Page 16 UNIVERSAL CONNECTED CONTACTOR F - USING THE PRODUCT Go back Save automation Change the automation name You can change the background image if you wish Selection of condition type Selection of conditions to be met for actions to be executed Selection of actions to be executed Selection of the automation validity time slot (e.g.
- Page 17 UNIVERSAL CONNECTED CONTACTOR F - USING THE PRODUCT Once all these settings have been confirmed, you can save your automation at the top right Allows you to use a previously defined Scenario (set of actions). Allows you to use a previously defined 4.2.1 PROGRAMMING THE automation (an automatic action)
- Page 18 UNIVERSAL CONNECTED CONTACTOR F - USING THE PRODUCT The first setting is stored. Now you must program the time. Click on +. Select the opening time. Slide your finger up or down the time column in the minute column. The time configured will appear between the two parallel lines.
- Page 19 UNIVERSAL CONNECTED CONTACTOR F - USING THE PRODUCT Next you need to determine the action to be performed. Rename your scenario at your convenience (in our example: “GATE OPENING”) Once all parameters have been set, click on Save.
- Page 20 UNIVERSAL CONNECTED CONTACTOR F - USING THE PRODUCT If you wish to access the details or delete it, click on the “...” icon at the top right of its name.
-
Page 21: G- Technical And Legal Information
UNIVERSAL CONNECTED CONTACTOR G - TECHNICAL AND LEGAL INFORMATION 1 - TECHNICAL CHARACTERISTICS 200W Max. power Features Opens gates and garage doors Connection Wired 1 output Cable cross-section Up to 1.5mm Indoors and outdoors Operating temperature -10°C/+50°C Storage temperature -20°C/+70°C Power supply 230 Vac/50 Hz Average consumption... -
Page 22: Warranty
Avidsen. The 6 - EC DECLARATION OF CONFORMITY warranty will be void if the device is tampered with. Alexandre Chaverot, CEO, declare, under my sole •... - Page 23 Avidsen 19 avenue Marcel Dassault ZAC des Deux Lions - 37200 Tours - France...
