Spinning Wheel DIY Solder Kit

Cat #: DIY-006

Learn to solder with easy-to-follow instructions. Idea for hobbyists and education institutes.

Kit Contents:

Component

Value

Name

LED 5mm

5mm

Mini Push Button

6x6mm

Resistors

330 ohms

www.osepp.com

 24 LEDs (extras included)

 Spinning sound

 1 to 12 LED spin selection

 Push button operation

 2xAAA battery power (not Incl.)

 Microprocessor technology

 Auto power off in 2 min

Qty

Designator

LED1.... LED24

KEY1, KEY2

R1.... R6

OSEPP USA, INC.

2105 S Hardy Dr., Unit # 19

Tempe, Arizona, 85282

USA

Important Info

Image Reference

Watch the

polarity. Long leg

is positive (+)

No polarity

Table of Contents

Need help?

Do you have a question about the DIY-006 and is the answer not in the manual?

Questions and answers

Summary of Contents for OSEPP DIY-006

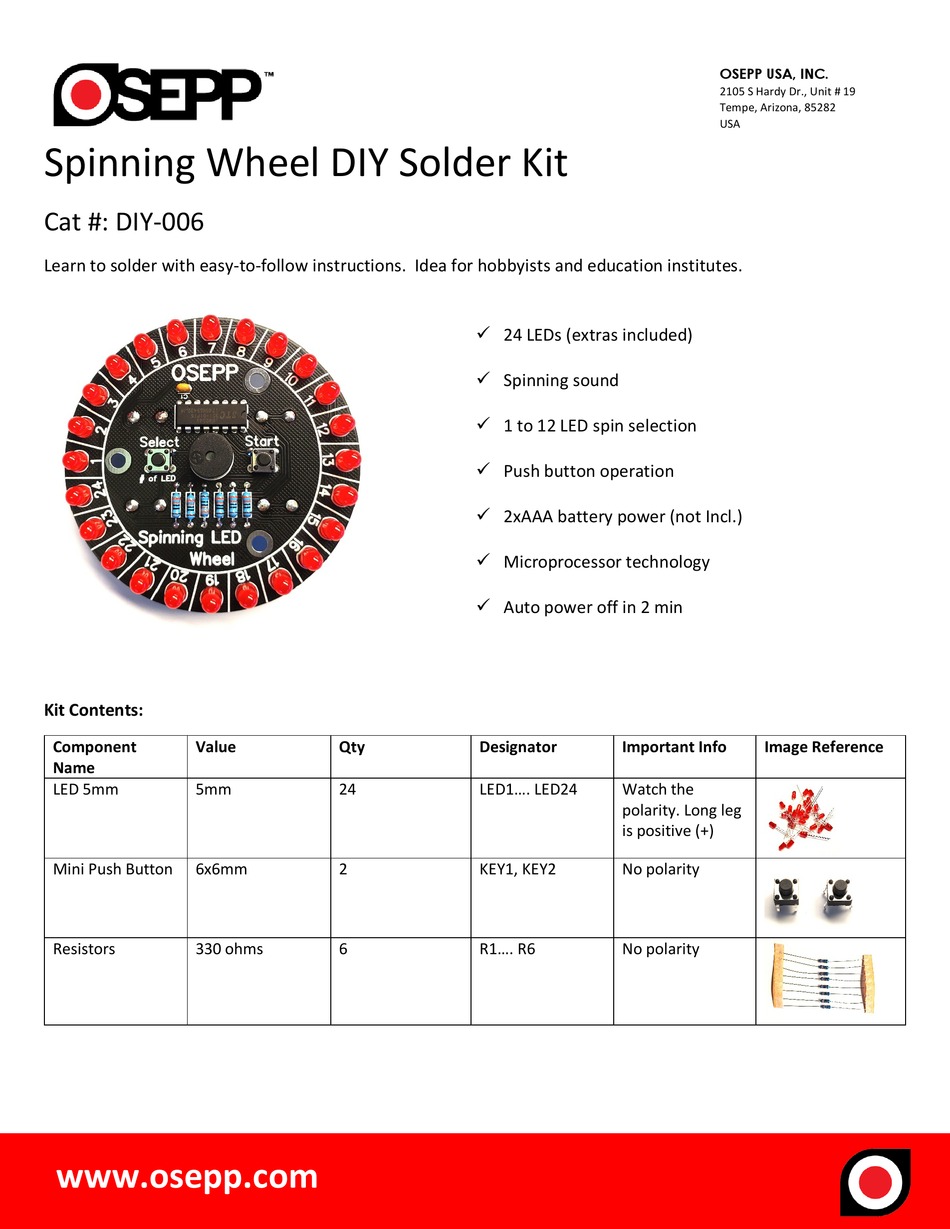

Page 1 OSEPP USA, INC. 2105 S Hardy Dr., Unit # 19 Tempe, Arizona, 85282 Spinning Wheel DIY Solder Kit Cat #: DIY-006 Learn to solder with easy-to-follow instructions. Idea for hobbyists and education institutes.  24 LEDs (extras included)  Spinning sound ...
Page 2 OSEPP USA, INC. 2105 S Hardy Dr., Unit # 19 Tempe, Arizona, 85282 Buzzer BUZZER1 Watch the polarity Integrated Circuit STC15W204S Match the ‘notch’ (IC) on the silkscreen to the notch on the IC. Battery Clip BT1, BT2, BT3, Pay attention to the placement direction.
Page 3 OSEPP USA, INC. 2105 S Hardy Dr., Unit # 19 Tempe, Arizona, 85282 100 ohms 1K ohms 1 MEG Brown/Black/Brown/Gold Brown/Black/Red/Gold Brown/Black/Green/Gold 300 ohms 10K ohms Orange/Orange/Brown/Gold Brown/Black/Orange/Gold www.osepp.com...
Page 4 OSEPP USA, INC. 2105 S Hardy Dr., Unit # 19 Tempe, Arizona, 85282 Step-by-Step Instruction STEP 1: Place and solder IC into place • Match the ‘notch’ on the IC to the notch on the PCB silkscreen image. STEP 2: Place and solder the resistors into place.
Page 5 OSEPP USA, INC. 2105 S Hardy Dr., Unit # 19 Tempe, Arizona, 85282 Step 3: Place and solder the capacitor in place. • There is no polarity with the capacitor. Step 4: Place and solder the mini switches into place.
Page 6 OSEPP USA, INC. 2105 S Hardy Dr., Unit # 19 Tempe, Arizona, 85282 Step 5: Place and solder the buzzer. • Watch for polarity. Refer to the under side of the buzzer for polarity label. Step 6: Place and solder the LEDs (x24) into place.
Page 7 OSEPP USA, INC. 2105 S Hardy Dr., Unit # 19 Tempe, Arizona, 85282 Step 7: Place and solder the battery clips (x4) into place. • Please refer to the image below for battery clip placement. Step 13: Finished image reference...
